ASTM A213 T22 heat exchanger tube is a 2.25Cr-1Mo chromium-molybdenum high temperature ferritic steel with excellent high temperature performance and mechanical properties.
The chemical composition of ASTM A213 grade T22 alloy steel seamless tube has 1.90-2.60 chromium and 0.87-1.13 molybdenum added. The minimum tensile strength under load is 415 MPa and the minimum yield strength of ASTM A213 grade T22 tube is 205 MPa. In high temperature environment, ASTM A213 T22 seamless heat exchanger tube is able to maintain high strength and has good creep resistance and lasting strength.

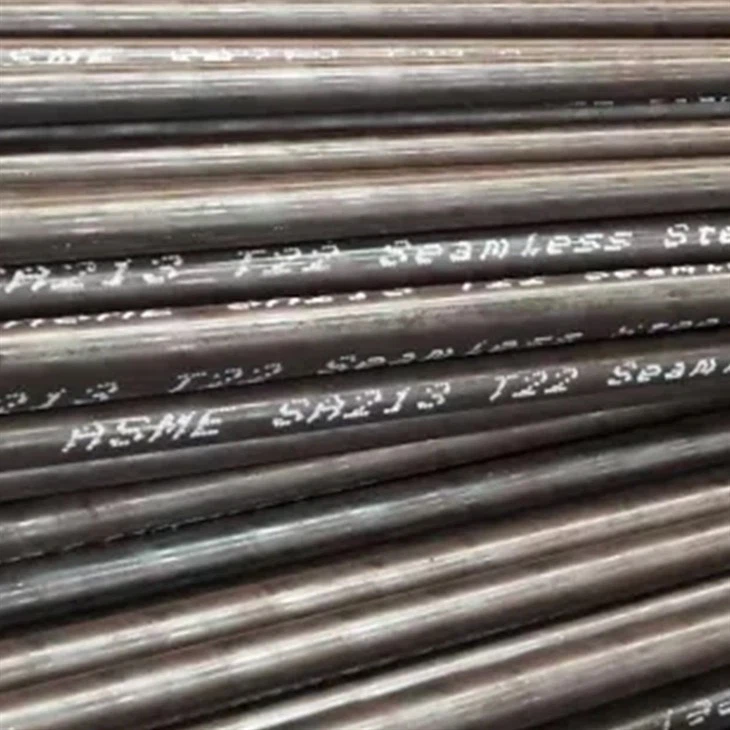

A213 T22 Alloy Seamless Steel Pipes

ASTM A213 t22 heat exchange tube

Chemical composition and mechanical properties of ASTM A213 Grade T22 Seamless Tube

Chemistry Composition

C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Mo, %
0.05-0.15	0.30-0.60	0.025 max	0.025 max	0.50 max	1.90-2.60	0.87-1.13

Mechanical Properties

Tensile Strength , MPa	Yield Strength, MPa	Elongation, %	Hardness, HB
415 min	220 min	30 min	163 max

ASTM A213/A213M T22 specification
Manufacture: tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified.
Heat Treatment: full or isothermal anneal, normalize and temper.
Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; 12000mm; and so on.

Advantages of choosing GNEE A213 T22 Steel Pipe

GNEE produces 30,000 tons of A213 T22 heat exchanger tubes per year, 75% of which are exported. Before leaving the factory, the steel tubes will undergo a series of tests to ensure product quality: Inspection and testing: chemical composition analysis, tensile test, hardness test, flattening test, expansion test, non-destructive testing, surface inspection and dimension inspection.
In addition, we also provide services such as uncoiling, cutting, welding, painting, etc.
If you are looking for seamless tubes, please send us an email!sales@gneetube.com
