API 5CT L80-9Cr Casing Pipe is a corrosion-resistant alloy (CRA) steel pipe specifically designed for oil and gas wells with moderate CO2(carbon dioxide) concentrations. It serves as a middle-ground solution between the standard carbon steel (L80-1) and the high-chromium stainless steel (L80-13Cr).
L80-9Cr belongs to Group 2 of the API 5CT specification. It is a martensitic alloy steel that must undergo Quenching and Tempering (Q&T).
Corrosion Resistance: The "9Cr" indicates a 9% Chromium content, which provides better resistance to weight-loss corrosion caused by
CO2 than standard carbon steel.
Restricted Yield/Hardness: Like all L80 grades, it has a strictly controlled yield strength range and a maximum hardness of 23 HRC to prevent Sulfide Stress Cracking (SSC).
Application: It is typically used in "Sweet Service" wells where CO2 levels are present but not severe enough to justify the much higher cost of 13Cr.
Stop Overpaying for 13Cr. Our API 5CT L80-9Cr Casing Offers Superior CO2 Protection at a Much Lower Cost. Get a Competitive Quote Today!
Identification of Color Band for L80-9Cr
| Grade | Body Color Bands | Coupling Color |
| L80 9Cr | One Red + One Brown + Two Yellow | Brown |
API 5CT L80-9Cr Casing Specification Table
| Item | Details |
| Standard | API Spec 5CT |
| Steel Grade | L80 Type 9Cr |
| Group | Group 2 (Restricted yield and hardness) |
| Manufacturing | Seamless (SML) is standard |
| Heat Treatment | Quenched and Tempered (Q&T) |
| Service Environment | Moderate CO2 (Sweet Service) |
API 5CT L80 9Cr Chemical Composition Table
The core strength of L80 9Cr lies in its 9.0% Chromium and 1.0% Molybdenum content. This combination makes it significantly superior to standard L80 Type 1 carbon steel in resisting uniform weight-loss corrosion.
| Element | Content Range / Maximum (Weight %) |
| Carbon (C) | ≤ 0.15 |
| Manganese (Mn) | 0.30 - 0.60 |
| Phosphorus (P) | ≤ 0.020 |
| Sulfur (S) | ≤ 0.010 |
| Silicon (Si) | 0.90 - 1.10 |
| Chromium (Cr) | 8.00 - 10.00 |
| Molybdenum (Mo) | 0.90 - 1.10 |
| Nickel (Ni) | ≤ 0.50 |
| Copper (Cu) | ≤ 0.25 |
API 5CT L80 9Cr Mechanical Properties Table
L80 9Cr requires a strict yield strength range and precise hardness control to ensure structural reliability in corrosive environments.
| Mechanical Property | US Customary (psi) | Metric / SI (MPa) |
| Yield Strength (Minimum) | 80,000 psi | 552 MPa |
| Yield Strength (Maximum) | 95,000 psi | 655 MPa |
| Tensile Strength (Minimum) | 95,000 psi | 655 MPa |
| Maximum Hardness | 23 HRC | 241 HBW |
| Elongation | Based on API Formula* | Based on API Formula* |
*Note: Minimum elongation is calculated based on the cross-sectional area of the tensile specimen, typically requiring 15% or higher.
API 5CT L80-9Cr Casing Size Table (Common Sizes)
| Nominal Size (in) | OD (mm) | Wall Thickness (mm) | Nominal Weight (lb/ft) | Drift Diameter (mm) |
| 4-1/2 | 114.30 | 6.35 | 11.60 | 99.21 |
| 5-1/2 | 139.70 | 7.72 | 17.00 | 121.87 |
| 7 | 177.80 | 9.19 | 26.00 | 156.24 |
| 9-5/8 | 244.48 | 11.99 | 47.00 | 216.53 |
API 5CT L80-9Cr Casing Dimension Tolerance Table
| Parameter | API 5CT Tolerance |
| Outside Diameter (OD) | < 4-1/2": ±0.031" / ≥ 4-1/2": -0.5% to +1.0% |
| Wall Thickness | -12.5% |
| Weight | -3.5% to +6.5% (Single Length) |
| Inside Diameter (ID) | Controlled by the Drift Mandrel size |
| Straightness | Max 0.2% of total length |
API 5CT L80-9Cr Casing Test Table
| Test Type | Frequency/Requirement | Purpose |
| Hardness Test | Per joint or per heat | Ensures < 23 HRC to resist
H2SH2S cracking. |
| Tensile Test | One per heat/lot | Verifies Yield and Tensile strength. |
| Hydrostatic Test | 100% of joints | Verifies leak-proof performance under pressure. |
| NDT (Non-Destructive) | 100% of joints | Ultrasonic or Eddy Current to find internal flaws. |
| Drift Test | 100% of joints | Ensures downhole tools can pass through. |
| Visual Inspection | 100% of joints | Checks for surface pits, cracks, or thread damage. |
| Impact Test | Required for PSL2/3 | Verifies low-temperature toughness (Charpy V-Notch). |

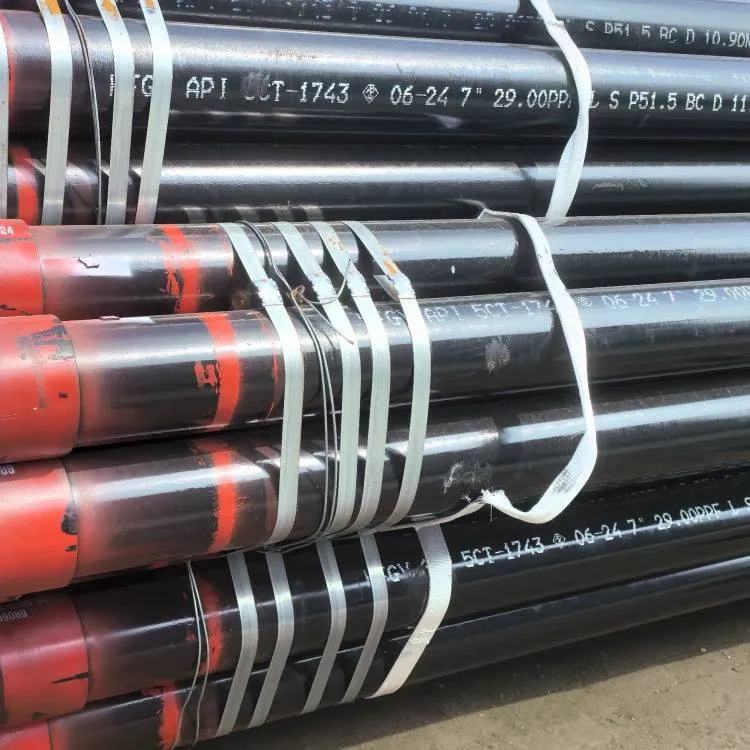

API 5CT L80-9Cr oil well casing factory
API 5CT L80-9Cr Casing certificate
FAQ
Are L80 9Cr available as welded pipe?
No, API 5CT L80 9Cr is only available as Seamless (SML) pipe.
Here are the 2 main reasons why:
API 5CT Requirement: The API 5CT specification mandates that high-alloy martensitic grades, specifically 9Cr and 13Cr, must be manufactured using the seamless process. Unlike L80 Type 1, welded versions (ERW) are not permitted for these alloys.
Welding Difficulty: Steel with 9% chromium is technically difficult to weld longitudinally. The heat from welding can create brittle zones and destroy the material's corrosion resistance at the seam, making it unsafe for high-pressure oil and gas environments.
When is L80-9Cr commonly specified for casing and tubing programs?
Specify L80-9Cr when you need better CO2 protection than carbon steel but want to save money compared to 13Cr stainless steel.
