A192 seamless heat exchange tube Description
A192 tubes are seamless carbon steel boiler and superheater tubes of minimum wall thickness for high pressure, A192 boiler tubes are normally available in outside diameters from 1/2 inch to 7 inches (12.7 to 177.8 mm), although other sizes may be available provided they meet the other requirements of the standard, A192 boiler tubes are available in outside diameters from 1/2 inch to 7 inches (12.7 to 177.8 mm), provided they meet the other requirements of the standard.
A192 High-Pressure Carbon Steel Boiler Tube Specification
|
Place of Origin |
China |
|
Brand Name |
GNEE |
|
Application |
Heat Exchange Tube, Boiler Pipe, High Pressure pipe |
|
Alloy Or Not |
Non-Alloy |
|
Section Shape |
Round |
|
Thickness |
1-15mm |
|
Standard |
EN |
|
Length |
6m, 6.4M |
|
Certificate |
ISO, SGS |
|
Surface Treatment |
Hot Rolled, Cold Rolled |
|
Tolerance |
±1% |
|
Processing Service |
Welding, Punching, Cutting, Bending |
|
Oiled or Non-oiled |
Non-oiled |
|
Invoicing |
by actual weight |
|
Delivery Time |
3-15 |
A192 Chemical composition (%)
| Composition | C | Si | Mn | P | S |
|---|---|---|---|---|---|
| Min | 0.06 | - | 0.27 | - | - |
| Max | 0.18 | 0.25 | 0.63 | 0.035 | 0.035 |
A192 Mechanical properties
| Wall Thickness t mm |
Tensile Strength σb Mpa |
Yield Point σs Mpa |
Elongation at break or elongation δ |
Hardness HBW |
|---|---|---|---|---|
| t＜5.1 | 137 | |||
| t≥5.1 | HRBW: 77 | |||
| Seamless* | ≥325 | ≥180 | ≥25 |
- Tensile strength: not less than 325MPa, able to withstand the axial tension generated during the operation of high-pressure equipment.
- Yield strength: not less than 180MPa, to ensure that the steel pipe will only produce moderate plastic deformation when subjected to high pressure.
- Elongation: not less than 35%, giving the steel pipe excellent toughness, can be subjected to impact through its own deformation to cushion the energy to avoid brittle fracture.

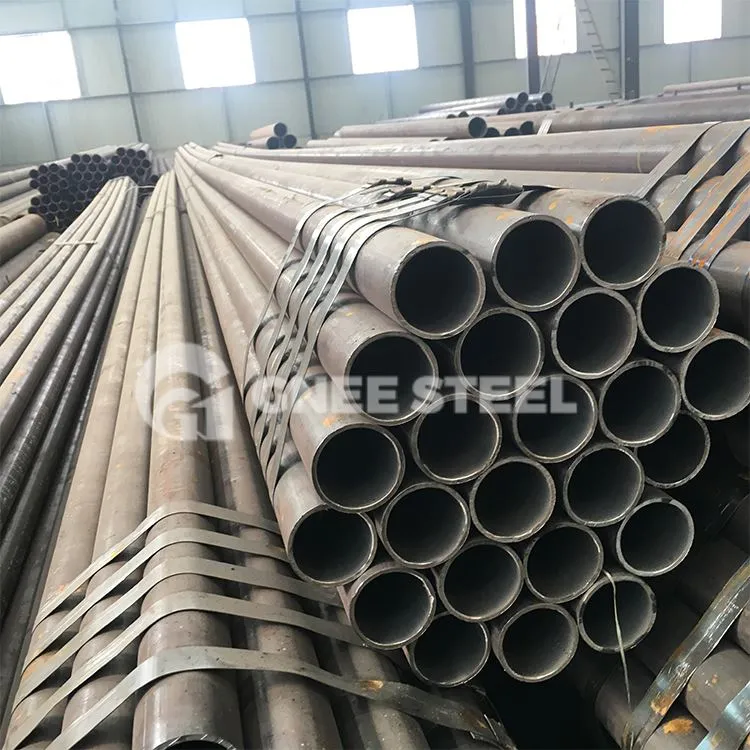

A192 seamless boiler tubes in stock
A192 High Pressure Seamless Steel Pipe distributors
GNEE Group is a distributor of A192 steel pipe, can provide you with A192 high pressure pipe, A192 boiler pipe, A192 superheater pipe and so on at any time.GNEE Group was established in 2008, can produce and supply you with the best quality and favorable price of A192 steel pipe, support third-party testing, provide technical support for cargo tracking. Contact us to get the best A192 high pressure carbon steel pipe.
