P235TR1 Structural Steel Pipe is the most basic seamless pipe grade in the European standard EN 10216-1. P235TR1 is equivalent to my country's Q235 material. EN 10216-1 P235TR1 seamless pipe is mainly used for pipeline manufacturing, container manufacturing, equipment manufacturing, pipe fittings and steel structures.
The P in EN 10216-1P235TR1 seamless pipe represents yield strength, which is equivalent to the Q in my country's Q235, meaning that the yield strength is 235MPa, and the TR1 behind it means that there is no requirement for the aluminum content, and there is no requirement for the impact energy of P235TR1 steel pipe.
Products Data
Chemical Properties Of EN10216-1 P235TR1 Seamless Steel Tube
| Products | Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum |
|---|---|---|---|---|---|---|
| EN 10216-1 Grade P235TR1 | max 0.16 | max 1.20 | 0.025 | 0.02 | max 0.30 | max 0.30 |
Tensile Strength Of EN10216-1 P235TR1 Material Tube
| Products | Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage | |
| EN 10216-1 Grade P235TR1 | 360 | 500 | – | 25 | ||
EN 10216-1 Carbon Seamless Steel Tubes Wall Thickness Tolerances
| Outside | Tolerance on D |
Tolerances on T for a T/D ratio |
|||
| diameter D | | <= 0.025 | > 0.025 | > 0.050 | > 0.10 |
| <= 0.050 | <= 0.10 | ||||
| D <= 219.1 mm | ± 1 % or ± 0.5 mm | ± 12.5 % or ± 0.4 mm whichever is greater | |||
| D > 219.1 mm | whichever is the greater | ± 20 % | ± 15 % | ± 12.5 % | ± 10 %* |
Products display

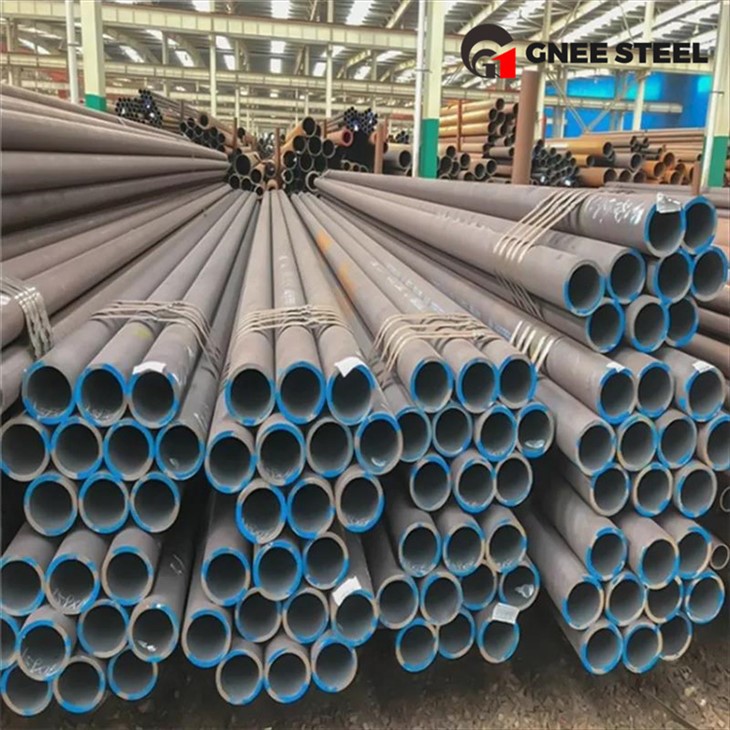

EN 10216-1 Seamless Steel Tube For Pressure
