EN 10305-1 42CrMo4 cold drawn tube is a special high steel grade that can be quenched and tempered, providing a robust blend of strength and toughness. With excellent heat resistance, wear resistance and impact resistance, it is suitable for manufacturing important parts that require higher strength and larger quenched cross-section size.
Application of 42CrMo4 seamless precision steel tube
In heavy machinery manufacturing, it is often used for components such as support structures, drive shafts and support rods.
In the petrochemical industry, it is used for pipes and containers for conveying and storing corrosive media.
In the automotive manufacturing industry, it is used to manufacture automotive parts such as drive shafts and suspension systems.
Products Data
Chemical composition of EN 10305-1 42CrMo4 Precision seamless tube
| Chemical Composition | |
| Carbon (C) | 0.38 - 0.45% |
| Silicon (Si) | max. 0.40% |
| Manganese (Mn) | 0.60 - 0.90% |
| Phosphorus (P) | max. 0.035% |
| Sulphur (S) | max. 0.035% |
| Chromium (Cr) | 0.90 - 1.20% |
| Molybdenum (Mo) | 0.15 - 0.30% |
Mechanical properties of EN 10305-1 42CrMo4 Cold Rolled Seamless Steel Tube
| Mechanical Properties | |
| Tensile Strength (σb) | ≥1080 MPa (1100 N/mm²) |
| Yield Strength (σs) | ≥930 MPa (950 N/mm²) |
| Elongation (A) | ≥12% |
| Reduction of Area (Z) | ≥45% |
| Impact Energy (Akv) | 63 J |
| Impact Toughness (kv) | 78 J/cm² (8) |
| Hardness | 217 HB |
Products display

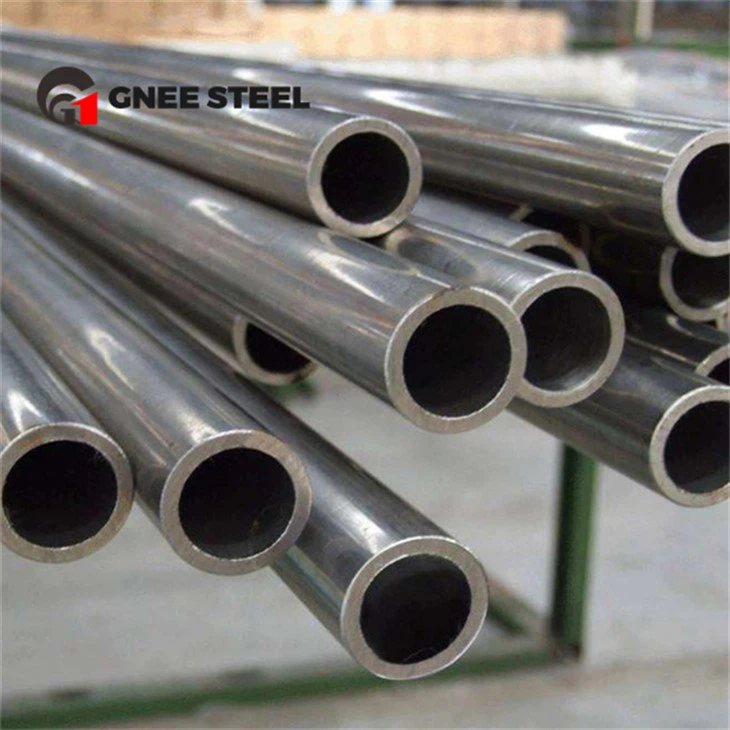

EN 10305-1 42CrMo4 Carbon Steel Seamless Tubes
