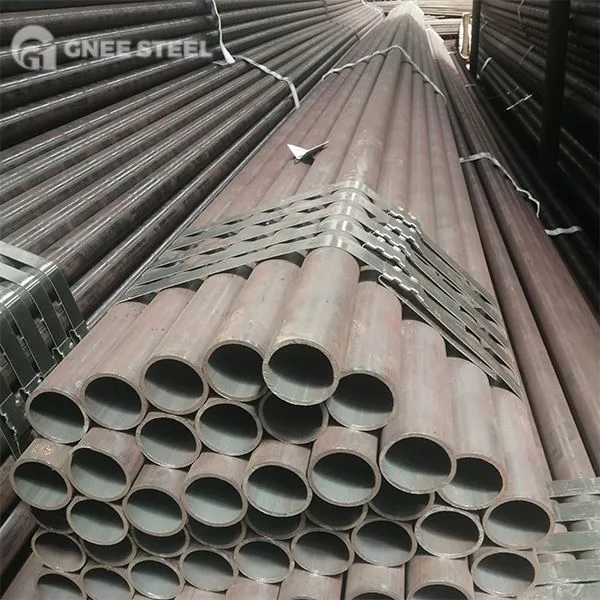

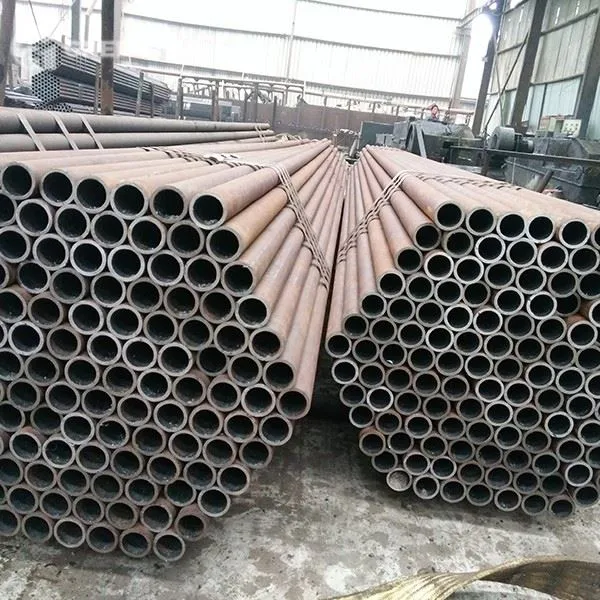

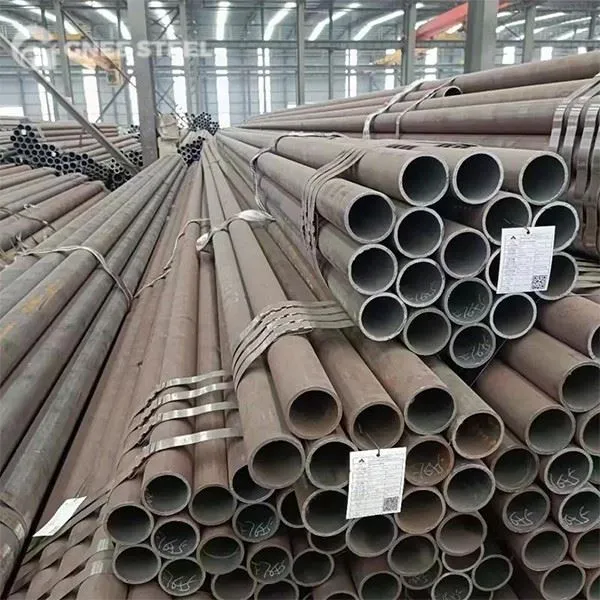

S235J0 Structural Steel Tubes Description

S235J0 is a European standard carbon structural steel, the 'S' in its name stands for structural steel, the '235' indicates the yield strength of the steel and the 'J0' specifies the impact value of the steel. J0' indicates the value of the impact function of the steel. This steel is commonly used in the manufacture of welded, bolted and riveted structures.S235J0 hot rolled structural steel pipe is usually delivered in the hot rolled state, and its chemical composition and mechanical properties are in accordance with EN 10025-2-2019.

S235J0 ms structural steel pipe Specification

Name	S235J0 ms structural steel pipe
Thickness	1-32mm can be customized
Width	1000-3000mm can be customized
Length	1000-6000mm at Customer's Requirement
Place of Origin	China
Brand Name	GNEE
Model Number	Customized
Type	Steel Pipe
Technique	Hot Rolled
Tolerance	±1%
Processing Service	Bending, Welding, Decoiling, Cutting, Punching
Package	Standard Packaging
Surface Treatment	Mild/Carbon/Black/Pickled/Oiled
Grade	S235JR,S235J0,S235J2,S275JR,S275J0,S275J2,S450J0,S355J0,S185,S355JR,S355K2,S235J0,S275J0,S355J2
Shape	We can procss according to your drawing.
Market	We are not only one of the domestic biggest supplier, we also export to all over the word.
Quality	We can produce special specifications of steel products according to orders. Our production process strictly conforms to the international standard of DIN/ASTM/AISI /JIS/BS to ensure the quality.

S235J0 Chemical composition (%)

composition	C ^①	Mn	P ^②	S ^②③	Cu ^④	N ^⑤	More
Min	-	-	-	-	-	-	⑥
Max	0.17	1.4	0.03	0.03	0.55	0.012	⑥

S235J0 Mechanical properties

Thickness t mm	Tensile strength σ_b Mpa	Yield point σ_s Mpa	Elongation at break or elongation δ %
t＜3	360~510	≥235
3≤t≤16	360~510	≥235	≥26
16＜t≤40	360~510	≥225	≥26
40＜t≤63	360~510	≥215	≥25
63＜t≤80	360~510	≥215	≥24
80＜t≤100	360~510	≥215	≥24
100＜t≤150	350~500	≥195	≥22
150＜t≤200	340~490	≥185	≥21
200＜t≤250	340~490	≥175	≥21
