What is carbon steel flanges?
Carbon Steel Flange Types and Specifications - Octal Flange
Carbon Steel Flange and end flange connectors are basically made of carbon steel. Common standards include ASTM A694, ASTM A105N (SA105N), MSS SP-44, DIN 2533. Accompanying pressure ratings are from class 150 to 2500. Carbon steel is a steel with carbon content up to 2.1% by weight.

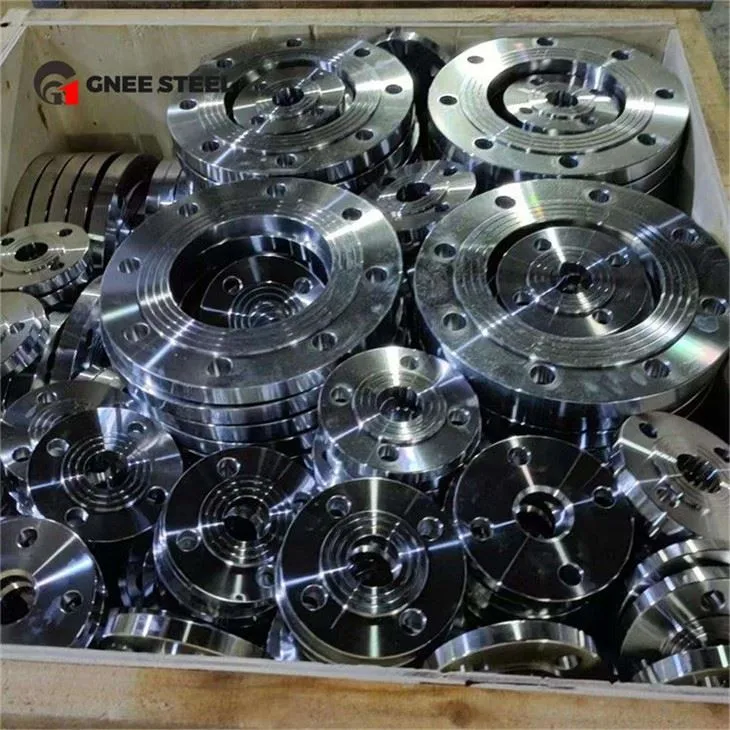

What is P250GH flange material?
P250gh Flange | 1.0460 Blind- Slip On- Weld neck flange material
P250GH Flanges is heat resistant and non-alloyed structured steel that works in high temperature and can be easily welded. It is used in valve construction and manufacturing of flanges and couplings.
Flange P250gh chemical composition
| C | Si | Mn | Ni | P | S | Cr | V | Nb | Ti | Al | - |
| 0.18 - 0.23 | max 0.4 | 0.3 - 0.9 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.02 | max 0.01 | max 0.03 | 0.015 - 0.05 | Cr+Cu+Mo+Ni < 0.7 |
Carbon Steel P250gh material properties
| Nominal thickness (mm): | to 150 |
| Rm - Tensile strength (MPa) (+N) | 410-540 |
| KV - Impact energy (J) longitud., | +20° 47 |
| Nominal thickness (mm): | to 150 |
| A - Min. elongation at fracture (%) (+N) | 25 |
Low Carbon Steel P250gh Blind Flanges
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
Gnee Steel Company is a professional steel company integrating R&D, manufacturing, sales and service. With annual sales of nearly US$1 billion and annual export volume of more than 50,000 tons, it is a steel mill located in Anyang City, Henan Province with convenient transportation.
Gnee Factory environment
FAQ
1.Q.Why choose Gnee?
A.With us, you will get the most competitive price, guaranteed quality, guaranteed delivery and after-sales service.
2.Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
3.Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
