The body of the DIN6923 flange nut is hexagonal, which is convenient for tightening and loosening with a wrench or pliers. One end of the nut has an enlarged flange surface, which can provide a larger contact area and enhance the stability and sealing of the connection. Some DIN6923 hexagonal flange nuts may have anti-skid teeth or anti-skid patterns to prevent loosening in a vibrating environment.
The DIN6923 flange nuts provided by GNEE are made of a variety of materials, including low carbon steel, medium carbon steel, stainless steel (such as 304, 316, 316L, etc.), titanium alloy, aluminum, etc. Surface treatment includes zinc plating (such as white zinc, blue and white zinc, black zinc, colored zinc, etc.), blackening, silver plating, copper plating, nickel plating, etc.
Products Data
| Diameter D | Thread Pitch P | dc max | m | s | ||
| max | min | max | min | |||
| M5 | 0.8 | 11.8 | 5 | 4.7 | 8 | 7.78 |
| M6 | 1 | 14.2 | 6 | 5.7 | 10 | 9.78 |
| M8 | 1/1.25 | 17.9 | 8 | 7.6 | 13 | 12.73 |
| M10 | 1/1.25/1.5 | 21.8 | 10 | 9.6 | 15 | 14.73 |
| M12 | 1.25/1.5/1.75 | 26 | 12 | 11.6 | 18 | 17.73 |
| M14 | 1.5/2 | 29.9 | 14 | 13.3 | 21 | 20.67 |
| M16 | 1.5/2 | 34.5 | 16 | 15.3 | 24 | 23.67 |
| M20 | 1.5/2.5 | 42.8 | 20 | 18.9 | 30 | 29.67 |
Products display

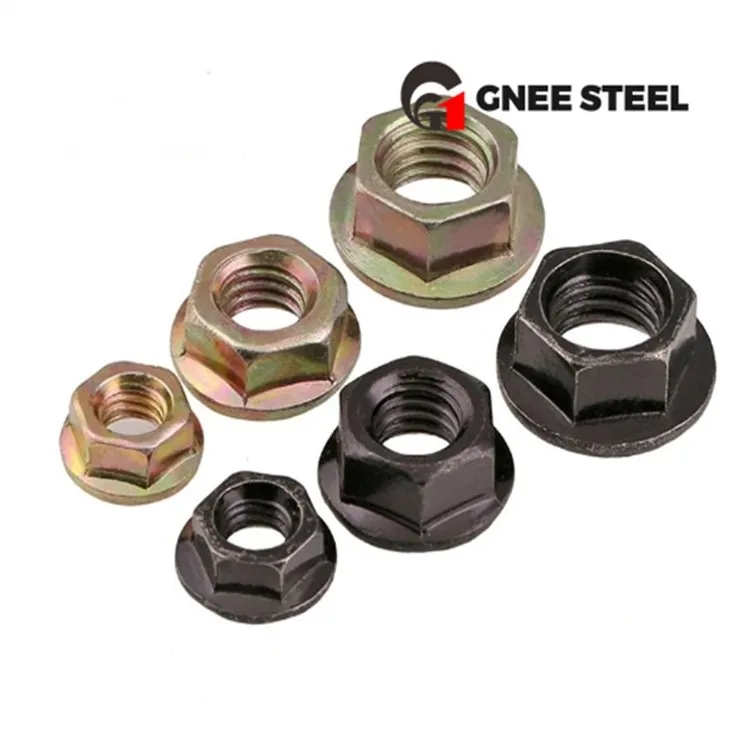

Stainless Steel Hex Flange Nuts
Why Choose GNEE
GNEE is a leading exporter in the fastener industry, providing comprehensive services including design, development, production, sales and after-sales support.
We specialize in the production of screws, anchors, bolts, nuts and formwork accessories, washers, nails rivets and other accessories, and strictly adhere to quality management standards throughout the production process.
The products are exported to more than 70 countries including the Middle East, Russia, Asia, Europe, Africa and America.
If any question,please contact with us freely by E-mail or Telephone. sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
Q.Can you provide samples?
A. Yes, free samples are available for regular sizes, but buyers need to pay the shipping cost.
Q.Where are you located? Can I visit you?
A.Sure, you are welcome to visit our factory anytime.
