DIN7340 galvanized steel rivet nuts are a type of fastener widely used in chassis cabinets and sheet metal industries.
Based on the material, they include S-type fast-cutting steel rivet nuts, CLS-type stainless steel rivet nuts, SP-type stainless iron rivet nuts, and CLA-type copper and aluminum rivet nuts to meet the needs of different usage environments. DIN7340 rivet nuts are circular in shape, with embossed teeth and guide grooves on one end. The embossed teeth are pressed into the preset holes of the sheet metal, and the teeth of the rivet nuts are squeezed into the plate through pressure, causing plastic deformation around the preset holes, thereby producing a locking effect. This design keeps the back of the plate completely flush, which is both beautiful and practical.
Products Data
| Metric Technical Data & Availability | |||||||
| Thread Diameter |
Grip Range GR (mm) |
Hole Diameter D (mm) |
Body Diameter (mm) |
Head Diameter DK (mm) |
Head Thickness K (mm) |
Length L (mm) |
Availability |
| M3 | 0.5 – 1.5 | 4.8 | 4.7 | 5.4 | 0.4 | 9.0 |
| M4 | 0.5 – 2.0 | 6.4 | 6.3 | 7.1 | 0.5 | 10.5 |
| M5 | 0.5 – 3.0 | 7.2 | 7.1 | 8.1 | 0.6 | 12.0 |
| M6 | 0.5 – 3.5 | 9.6 | 9.5 | 10.3 | 0.6 | 15.0 |
| M8 | 0.7 – 3.8 | 10.6 | 10.5 | 11.5 | 0.6 | 16.0 |
| M10 | 1.0 – 4.0 | 12.8 | 12.7 | 13.9 | 0.7 | 20.0 |
Products display

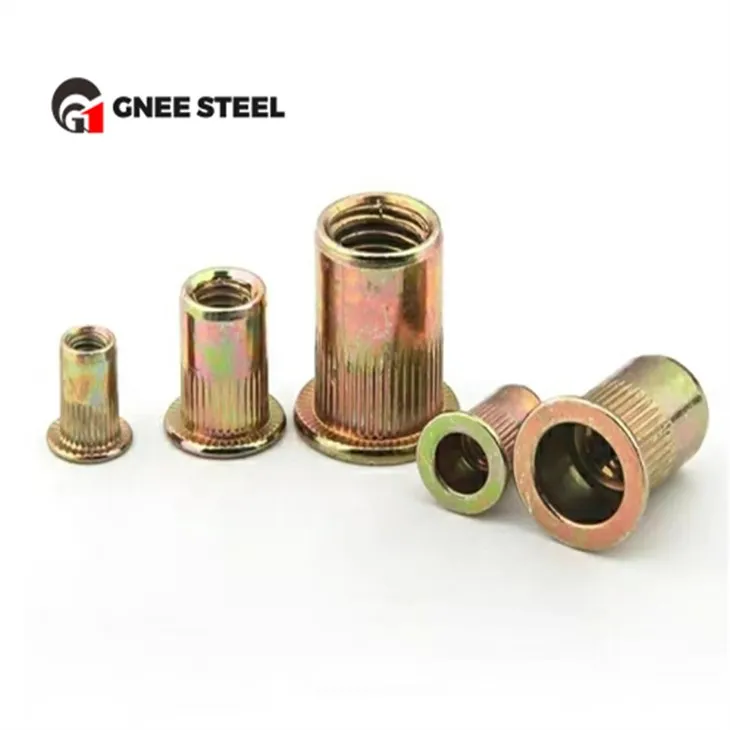

Galvanized Zinc Plated DIN7340 Rivet Nut
