SA335 P12 Alloy Steel Pipe Description
ASME SA335 P12 seamless pipe is primarily made of chromium-molybdenum alloy steel, specifically 1Cr-0.5Mo. It possesses excellent high-temperature resistance, oxidation resistance, and corrosion resistance, and can maintain stable performance under extreme working conditions. ASTM A335 P12 boiler seamless pipe has been widely used in large-diameter pipelines and corresponding high-temperature headers of large-capacity thermal power generating units in various countries around the world.
The SA335 P12 boiler pipe supplied by GNEE must undergo strict quality control and testing during the manufacturing process, including chemical composition analysis, mechanical property testing, water pressure testing, and ultrasonic testing, etc.
Products Data
SA335 P12 boiler steel pipe Chemical Composition and Mechanical Property
|
Grade |
C≤ |
Mn |
P≤ |
S≤ |
Si≤ |
Cr |
Mo |
|
P12 |
0.05~0.15 |
0.30~0.60 |
0.025 |
0.025 |
0.50 |
0.80~1.25 |
0.44~0.65 |
|
Tensile Strength , MPa |
Yield Strength, MPa |
Elongation, % |
|
415 min |
220 min |
30 mi |
SA335 P12 Specification:
Outer Diameter: 1/8"-36"(10.3mm-914.4mm)
Wall Thickness: 1.2mm-80mm
Length: Random Length,SRL,DRL(4-14M)
End:pland ends beveled ends
Surface: Bare, Black,Lightly oiled, Hot dip galvanized,, Varnish coating/Anti rust oil, Protective Coatings, 3PE
Products display

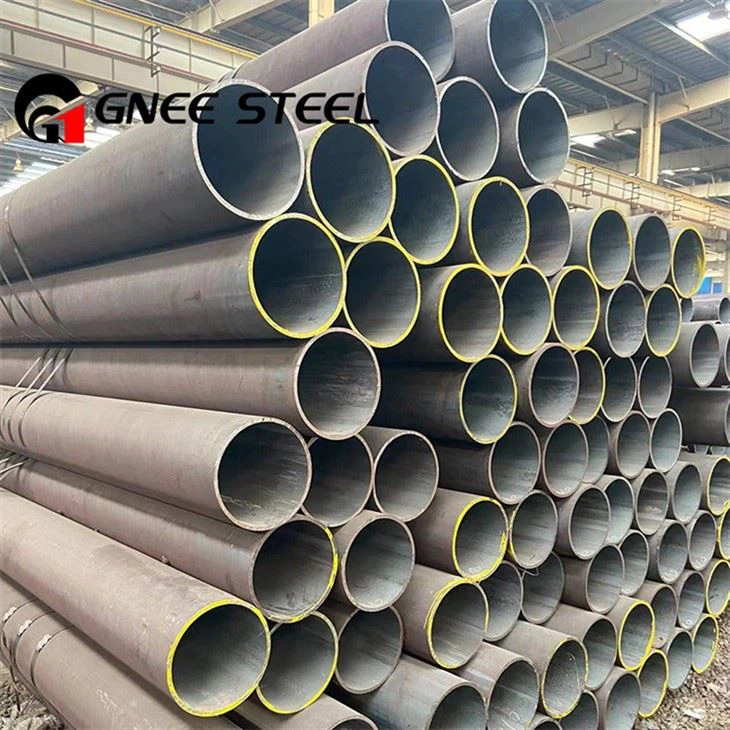

ASTM A335 P12 Alloy Steel Seamless Pipes
SA335 P12 Pipe Applications
Energy & Power:
Main steam piping, high-temperature coupling box, and reheater piping of thermal power generating units, resistant to high pressure (≥9.8 MPa) and high temperature (450-650°C).
Main feed pipes and steam transmission systems for conventional nuclear power islands.
Chemical & Petroleum:
High-temperature reactor, cracker pipe, and heat exchanger of oil refining plants, resistant to sulphide and oxidation corrosion.
Domestic equivalent grades and differences
Equivalent material:
Domestic 12Cr1MoVG (GB/T 5310) is close in performance to SA335 P12, but there are differences in composition:
Higher chromium content (1.15-1.50% vs 0.80-1.25%);
Slightly lower molybdenum content (0.25-0.35% vs 0.44-0.65%).
Substitution limitations:
The suitability of domestically produced materials needs to be critically evaluated in ultra-high temperature (>600°C) or highly corrosive media scenarios.
Why Choose GNEE
GNEE covers an area of 35,000 square meters and has more than 200 employees, including 80 technicians. We have established an effective and complete quality control and assurance system. The company has also obtained ISO9001 quality system certification. Our products are exported to more than 60 countries and regions including Russia, Canada, India, Brazil, Southeast Asia, etc.
If you would like to know more about our company or our products, please feel free to contact us. sales@gneetube.com
SA335 P12 boiler Pipe Factory
SA335 P12 high pressure pipe Packaging And Shipping
FAQ
Q: How about the samples? Is it free or extra fees?
A: Usually, we would like to supply the samples before an order is placed. If the samples are in stock, they will be free. If the samples need to be produced, we will charge a reasonable cost. However, this amount will be deducted from your first order invoice.
Q: How long is your delivery time?
A: Our daily inventory is over 8000 tons, so common product size orders typically need 7 days from stock. If there are special size orders, it will take 7-15 days.
