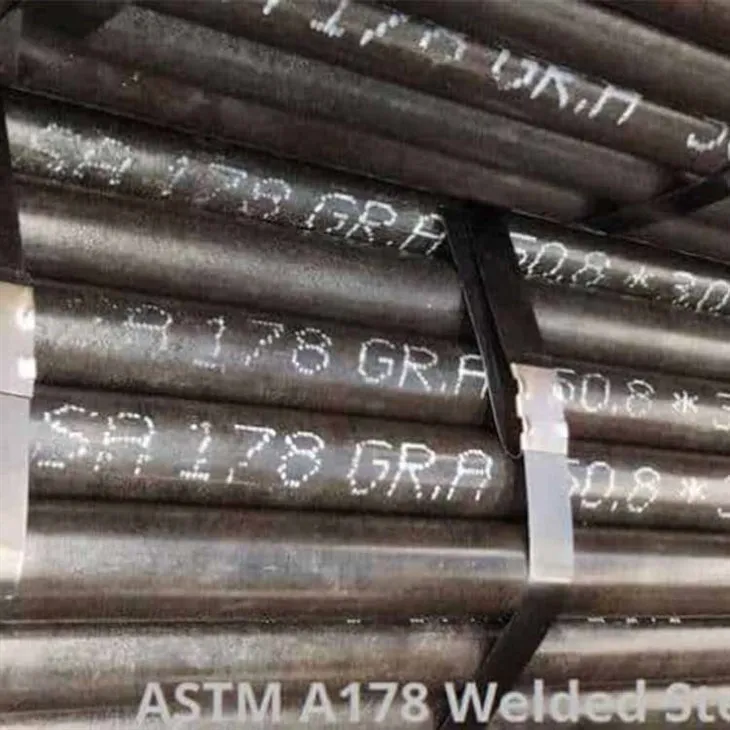

ASTM A178 Steel Tube is a standard specification for electric resistance welded carbon steel and carbon manganese steel boiler and superheater tubes.
ASTM A178 A boiler tube includes carbon, manganese, phosphorus and sulfur content. The carbon content is usually between 0.06% and 0.18%, and the manganese content is between 0.27% and 0.63%.
ASTM A178 A seamless boiler tube has a diameter of 1/2 inch to 5 inches and a wall thickness of 0.035 inches to 0.360 inches. ASTM A178 A carbon steel boiler tube is mainly used for boilers, boiler flues, superheater flues and safety ends.
A178 A Boiler Tube
Chemical Composition of ASTM A178 A Welded boiler tube
| Element % | ASTM A178 Gr A / SA178A |
| Low carbon steel | |
| C | 0.06-0.18 |
| Mn | 0.27-0.63 |
| P | 0.035 |
| S | 0.035 |
| Si | ... |
Mechanical Property of SA178 Grade A Boiler Tubes
| Item | ASTM A178 Gr A / SA178A |
| Tensile strength, min, ksi [MPa] | 47[325] |
| Yield strength, min, ksi [MPa] | 26[180] |
| Elongation in 2 in. or 50mm, min, % | 35 |
| For longitudinal strip tests a deduction for | 1.50A |
| Each1⁄32-in[0.8mm] decrease in wall thickness below 5⁄16in. [8mm] |
Specification: ASTM A178 Electric Resistance Welded carbon steel boiler tubes
Scope: the specification cover minumum wall thickness electric resistance welded tubes made of carbon steel
Standard: ASTM A178
Steel Grade: Gr.A,Gr.C and Gr.D
Out diameter:NPS 1/2 - NPS 5
Wall thickness: 0.9mm-9.1mm
Heat Treatment: After welding, All tubes shall be heat treated at a temperature of 900 ℃ or higher and follow by cooling in air.
Advantages of choosing GNEE A178 A Steel Pipe
The company currently has more than 30,000 tons of ASME A178 A boiler tubes in stock, with many varieties for you to choose from! GB, ASTM, JIS, DIN and other standards can be implemented.
In addition, we also provide services such as uncoiling, cutting, welding, painting, etc.
If you are looking for seamless tubes, please send us an email!sales@gneetube.com
Factory environment of A178 Seamless Alloy Steel Pipe
Gnee Customer visit
ASTM A178 GR A Tube Suppliers
FAQ
Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
Q.What is your lead time?
A.Generally, our delivery time is within 7-45 days.
Q.What is your after-sales service?
A.We provide after-sales service and 100% quality assurance for our products.
