09Mn2V steel pipe is a -70°C low-temperature steel that does not contain nickel or chromium and was developed based on Chinese resources. It can partially replace the commonly used 18-8 stainless steel, copper or aluminum and other nickel-containing steel. The comprehensive performance of this steel pipe is close to that of low alloy steel with full ferrite structure, which is equivalent to the American standard A333Gr6. It is very excellent and can be widely used in the manufacture of refrigeration equipment, hydraulic gas storage tanks, and special -70C low-temperature pressure equipment in petrochemical and other industries.
| Product Name | 09Mn2V A333-7.9 A334-7.9 TT St35N SEW680 Seamless steel pipe |
| Standard | ASTM, GB, API, JIS, BS, DIN,etc |
| Wall Thickness | 1mm~12mm or customization |
| Outside Diameter | 10mm~500mm |
| Technique | Hot Rolled/Cold Drawn |
| Surface Treatment | Bare, Lightly Oiling, Black Painting, Anti-Corrosi |
| Packing | seamless steel pipe packing in bundles, wooden cases, standard export packing or as per customer required |
| Application | Boiler Pipe, Oil/Gas Drilling, Chemical Industry, Mining, Construction & Decoration |
| Certificate | API, ce, Bsi, RoHS, SNI, PVOC, ISO9001 |
Low temperature alloy pipe
| level | Minimum impact test temperature |
- |
|
℉ |
℃ |
|
|
16MnDG |
-- |
-45 |
|
10MnDG |
-- |
-45 |
|
09DG |
-- |
-45 |
|
09Mn2VDG |
-- |
-70 |
| standard |
tensile strength (MPa) |
Yield Strength (MPa) |
Elongation(%) |
|
09DG |
≥385 |
≥210 |
≥35 |
|
09Mn2VDG |
≥450 |
≥300 |
≥30 |

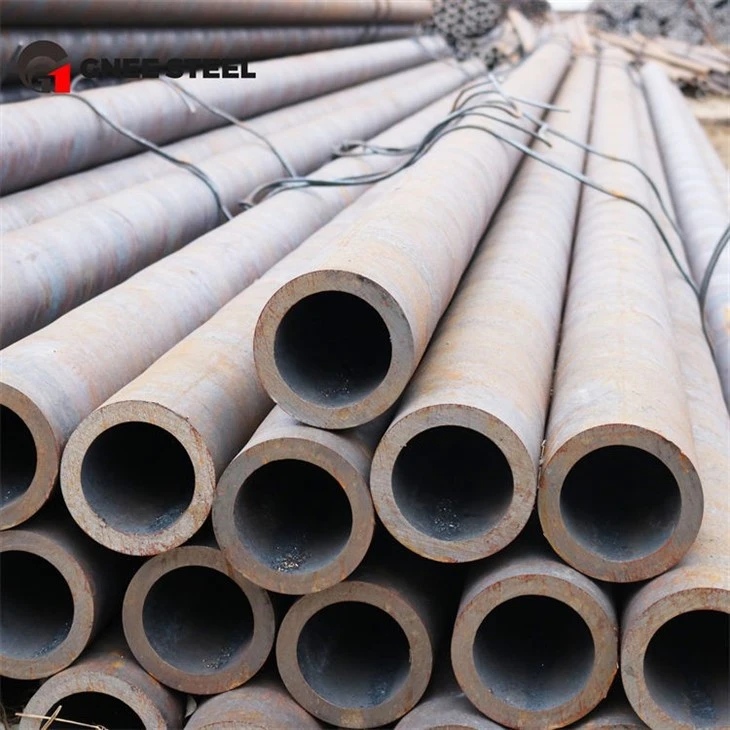

09Mn2V seamless steel pipe
Seamless steel pipe for cryogenic pipelines
A333Gr6 cryogenic tube
Spot specifications: 8-1240×1-200mm
Product material: 16MnDG low temperature tube, 10MnDG low temperature tube, 09DG low temperature tube, 09Mn2VDG low temperature tube, 06Ni3MoDG low temperature tube,
Product application: Suitable for seamless steel pipes for -45°C ~ -195°C low-temperature pressure vessel pipes and low-temperature heat exchanger pipes.
gnee has a large inventory of aluminum alloys, steel tubes, square tubes, steel plates, steel coils, bars, H-shaped steel, etc., which comply with GB, ASTM, JIS, BS, and EM standards.
Gnee Factory environment
