ASTM A213 T22 alloy steel pipe has a maximum hardness of 163 HB and has excellent wear resistance and pressure resistance. In addition, its minimum yield strength is 205MPa and its minimum tensile strength is as high as 415MPa, which allows the pipe to maintain stable performance even under extreme conditions, providing solid protection for various high-temperature applications.
In terms of welding, SA213 T22 boiler steel pipe has excellent compatibility and can be matched with most traditional welding methods. However, when oxyacetylene welding or submerged arc welding is used, in order to ensure that the performance of the pipe is not affected, post-weld heat treatment, mainly annealing, must be performed. This step ensures that the pipe does not deform or lose its original mechanical properties during the welding process.
A213 T22 Seamless Boiler Tubes are widely used in many areas such as boilers, heaters, superheater elements, heat exchangers and refineries.
Heat Treatment of ASTM A213 T22 pipe
| Grade | UNS Number |
Heat Treat Type | Austenitizing/ Solutioning Temperature, min or range ºF [ºC] |
Cooling Media | Subcritical Annealing or Tempering Temperature, min or range ºF [ºC] |
ASTM Grain S |
| Ferritic Alloy Steels | ||||||
| T22 | K21590 | full or isothermal anneal | … | … | … | … |
| normalize and temper | … | 1250 [675] | … | |||
Chemical Composition % Of SA213 T22 Alloy Steel Tube
|
C, % |
Mn, % |
P, % |
S, % |
Si, % |
Cr, % |
Mo, % |
|
0.05-0.15 |
0.30-0.60 |
0.025 max |
0.025 max |
0.50 max |
1.90-2.60 |
0.87-1.13 |
Mechanical Properties Of SA213 T22 Alloy Piping
|
Tensile Strength , MPa |
Yield Strength, MPa |
Elongation, % |
Hardness, HB |
|
415 min |
220 min |
30 min |
163 max |

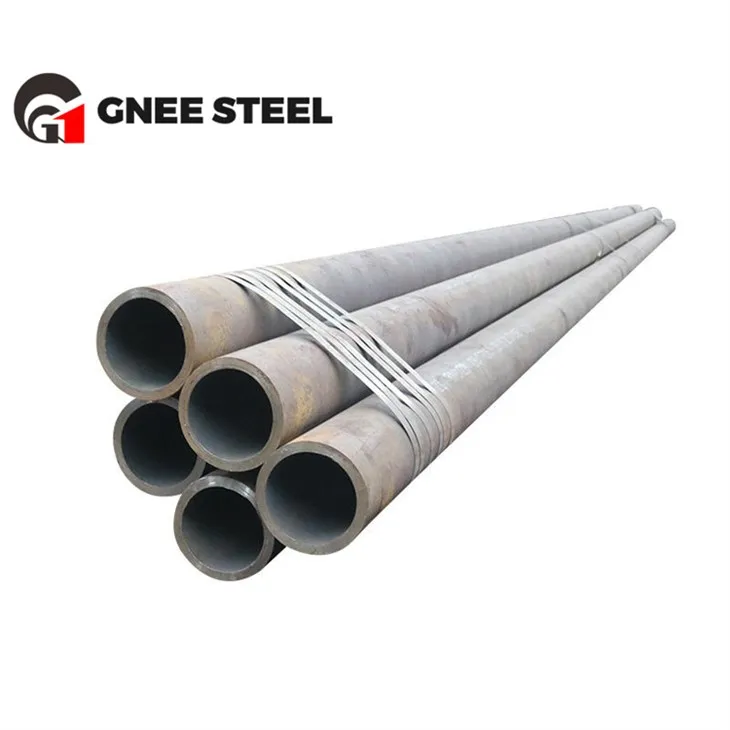

A213 T22 High pressure alloy steel pipe
GNEE Suppliers' Stock Specifications
Size Range: 1/2" OD up to 5" OD, customs diameters also available
Thickness Range: SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules, upto 12mm thk
Alloy Steel Tubes Specifications: ASTM A/ASME SA 213 T22
End Connections for Line Pipes: Plain, Bevel, Screwed, Threaded
