ASTM A334 6 alloy steel pipe is a high-quality seamless steel pipe made of high-quality carbon steel, low-alloy steel or stainless steel following the ASTM A334 standard. This type of steel pipe has excellent corrosion resistance and mechanical properties, making it widely used in petroleum, chemical industry, electric power, shipbuilding, aviation and other fields.
ASTM A334 Grade 6 steel pipe has an outer diameter less than 1 ⁄ 2 in. [12.7 mm], seamless and welded carbon and alloy steel pipe, suitable for use at low temperatures. Pipes shall be manufactured using a seamless or automated welding process with no filler metal added during the welding operation.
ASME SA334 Grade 6 Carbon Steel Seamless Pipe is a medium carbon steel pipe with a maximum carbon content of 0.30 % and a manganese content of 0.29 – 1.06 %. ASME SA 333 Grade 6 pipe is ductile and strong with long-term wear characteristics.
Chemical Composition
| Element | Composition, % |
| Grade 6 A | |
| Carbon, max | 0.30 |
| Manganese | 0.29–1.06 |
| Phosphorus, max | 0.025 |
| Sulfur, max | 0.025 |
| Silicon | 0.10 min |
| Nickel | … |
| Chromium | … |
| Copper | … |
| Cobalt | … |
| Molybdenum | … |
A For each reduction of 0.01 % carbon below 0.30 %, an increase of 0.05 % manganese above 1.06 % will be permitted to a maximum of 1.35 % manganese.
Mechanical Properties
| Grade 6 | ||
| ksi | MPa | |
| Tensile Strength, min | 60 | 415 |
| Yield Strength, min | 35 | 240 |
| Rockwell | B 90 | |
| Brinell | 190 | |
Mechanical property requirements do not apply to tubing smaller than 1 ⁄ 8 in. [3.2 mm] in outside diameter and with a wall thickness under 0.015 in.[0.4 mm].

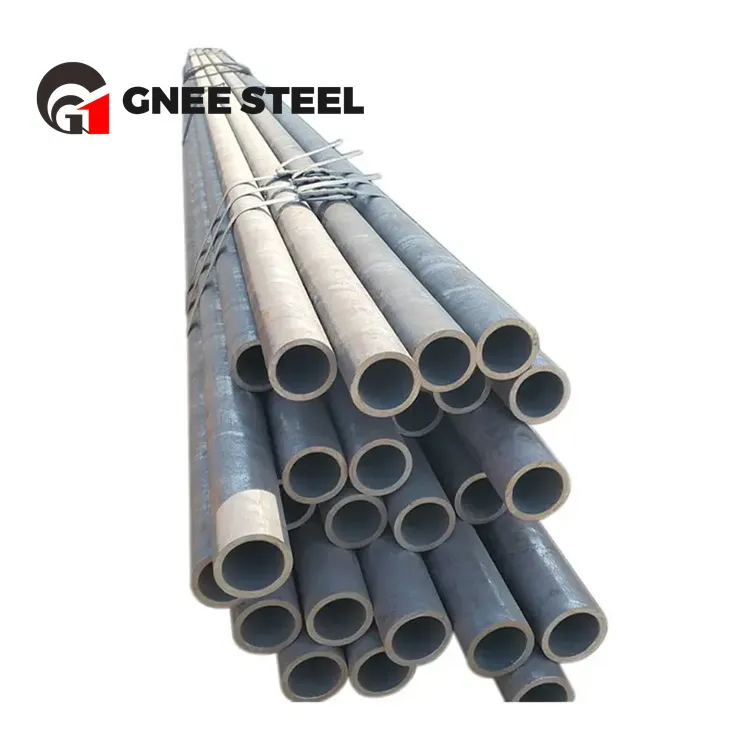

ASTM A334 GR 6 steel pipe
Specifications:ASTM A 334, ASME SA 334
Size Range:4" NB to 26" NB
Wall Thickness:2.0mm-14 mm
Schedules:20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier
Type:Seamless / Welded/ Low Temperature
Length:5800mm; 6000mm; 6096mm; 7315mm; 11800mm; and so on.
Grade:Grade 6
GNEE A334 steel pipe production process
a: Normalizing by heating to a uniform temperature not less than 1550 °F [845 °C] and cooling in air or in the cooling chamber of an atmosphere-controlled furnace.
b: Reheat and control the hot working and hot finishing temperatures to a finishing temperature of 1550 to 1750 °F [845 to 955°C] and cool in a controlled atmosphere furnace from an initial temperature of no less than 1550°F [ 845°C].
Inspection and testing: chemical composition analysis, tensile test, flattening test, flaring test, hardness test, impact test, non-destructive testing, surface inspection, dimensional inspection.
