A369-FP22 steel pipe, as a representative of low alloy steel, its main components are chromium and molybdenum. The chromium content is between 2.25% and 3.5%, while the molybdenum content is between 0.87% and 1.13%. In addition, it also contains small amounts of carbon, silicon, manganese, phosphorus, sulfur and other elements. The addition of these elements helps to improve the hardness, strength and corrosion resistance of steel pipes.
Alloy tube A369-FP22 is characterized by its excellent high-temperature strength and corrosion resistance. Even in high-temperature environments, P22 steel pipes maintain high strength and stability. At the same time, A369-FP22 seamless steel pipe also has excellent corrosion resistance and can resist the erosion of various corrosive media such as acids, alkalis, and salts.
A369 Gr. FP22 Chemical composition:
| Grade | C≤ | Mn | P≤ | Si≤ | S≤ | Cr | Mo |
| FP22 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.50 | 0.025 | 0.80~1.25 | 0.44~0.65 |
A369 Gr.FP 22 seamless alloy steel pipe Physical Properties
| Grade |
TensileStrength,min(MPa) |
YieldStrength,min,(MPa) |
Elongation,min,(%),L/T |
|
A369Gr.FP22 |
415 |
210 |
30/22 |

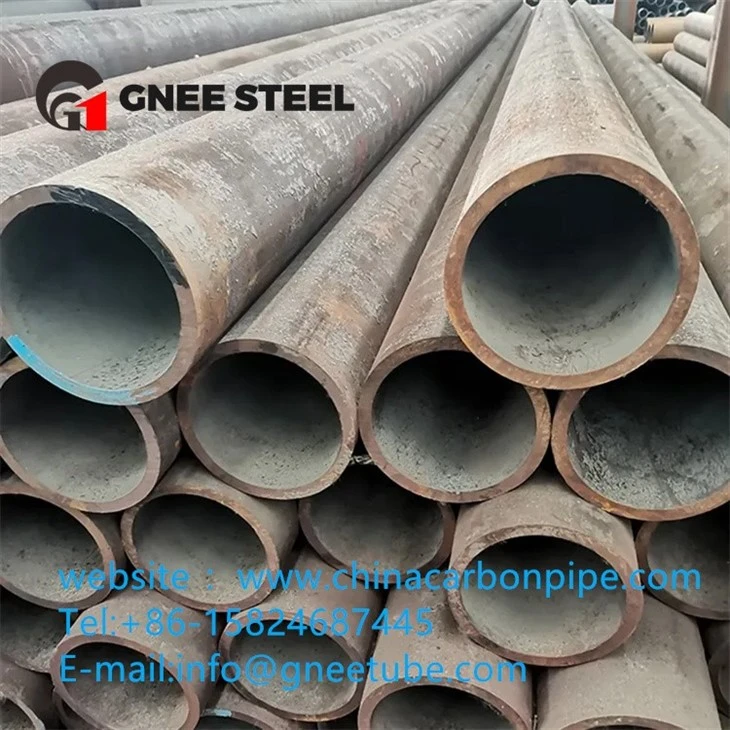

seamless alloy steel tubing A369
| Product Name | ASTM A369 FP22 Alloy Pipe | |
| Size | OD | 12.7mm-710mm |
| Thickness | 3mm-45mm | |
| Length | SRL,DRL,5.8M,11.8M | |
| Steel Material | ASTM A369 | |
| Process | Hot rolled/hot expansion/cold drawn/cold rolled | |
| Usage | High temperature service | |
| Surface | Bared Black Painting, Galvanized,Coating | |
| Proctor | Plastic cap | |
| Package | Bundles, Bulk | |
| Inspection | With Hydraulic Testing, Ultrasonic testing or X-ray Test | |
| Certificate | ISO9001;2000 | |
| Date of Delivery | Less Than 15/20/25/30/40/50/60 Days According To The Quantity | |
Packaging and strapping materials can use steel strips, steel wires, steel coils, etc. In order to protect the steel pipes and/or strapping materials from damage, wood, metal, plastic and other materials can be placed between the steel pipes.
Usually hexagonal bundling is used for packaging. If you have other requirements, please ask.
