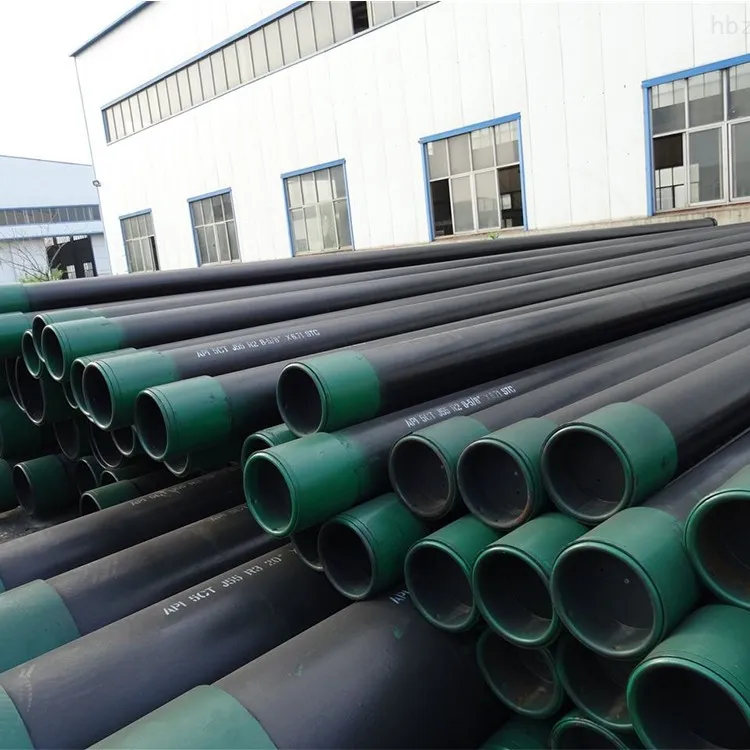

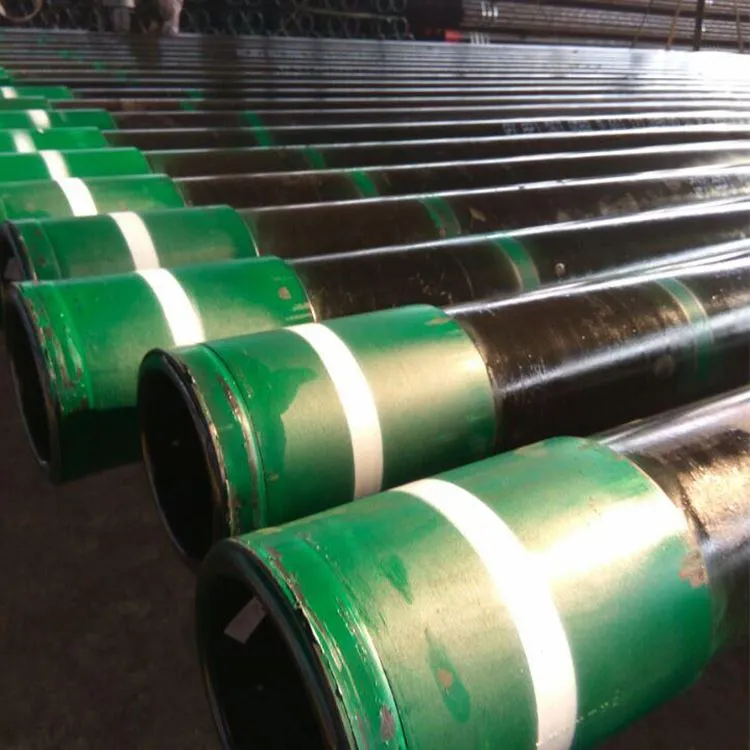

API 5CT Grade H40 OCTG Casing is the lowest-strength steel grade specified under the American Petroleum Institute (API) 5CT standard. As a critical part of Oil Country Tubular Goods (OCTG), casing is a large-diameter pipe inserted into a newly drilled borehole to line the well, stabilize the wellbore, and prevent it from collapsing.
Because H40 has a lower yield strength, it is primarily used in shallow, low-pressure oil and gas wells or for the uppermost "surface casing" sections of deeper wells. It is highly economical for non-critical environments where high mechanical stress or corrosion is not a major concern.
Looking for the best price on surface casing? Get a factory-direct quote on API 5CT H40 today and lower your drilling costs.
API 5CT Grade H40 Specification Table
| Item | Description |
| Standard | API Spec 5CT (Latest Edition) |
| Steel Grade | H40 |
| Group | Group 1 (General purpose) |
| Product Level | PSL1 (Typical for H40) |
| Manufacturing Type | Seamless (SMLS) or Electric Resistance Welded (ERW) |
| Connection Types | STC (Short Thread), LTC (Long Thread), BTC (Buttress Thread) |
| Range Length | Range 1 (16–25ft), Range 2 (25–34ft), Range 3 (34–48ft) |
| Surface Coating | Black Paint, Anti-Rust Oil, or 3LPE/FBE upon request |
Chemical Composition (Max %)
Note: Grade H40 has very loose chemical requirements compared to higher grades; only impurities are strictly capped.
| Grade | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Silicon (Si) |
| H40 | No limit | No limit | ≤ 0.030% | ≤ 0.030% | No limit |
Mechanical Properties
| Property | Value (Grade H40) |
| Yield Strength (Min) | 276 MPa (40,000 psi) |
| Yield Strength (Max) | 552 MPa (80,000 psi) |
| Tensile Strength (Min) | 414 MPa (60,000 psi) |
| Hardness | No mandatory maximum limit |
| Elongation | Calculated based on cross-sectional area per API 5CT |
Dimensions and Tolerances Table
Standard tolerances per API 5CT for H40 Casing:
| Parameter | Tolerance |
| Outside Diameter (OD) | ± 0.75% |
| Wall Thickness (WT) | - 12.5% (No upper limit specified) |
| Weight (Single Joint) | + 6.5% to - 3.5% |
| Straightness | Max 0.2% of the total length |
| Common Sizes (OD) | 4 1/2", 5 1/2", 7", 8 5/8", 9 5/8", 10 3/4", 13 3/8", 20" |
Manufacturing Process of API 5CT H40 Casing
The production of H40 casing follows these general steps:
Raw Material: Steel billets (for SMLS) or steel coils (for ERW).
Forming:
Seamless (SMLS): Piercing a hot solid billet to form a hollow tube.
Welded (ERW): Cold-forming a steel strip into a cylinder and welding the seam using high-frequency current.
Heat Treatment: H40 is typically delivered in the As-Rolled or Normalized condition.
Straightening & Sizing: Ensuring the pipe meets the required roundness and straightness.
Threading: Cutting API-standard threads (STC/LTC/BTC) on both ends of the pipe.
Coupling Installation: Attaching the threaded coupling to one end.
Inspection: Comprehensive testing (Hydro, NDT, Mechanical).
Marking & Coating: Stenciling the API monogram and steel grade, then applying anti-corrosive paint.
Testing Requirements for API 5CT H40 Casing
Every joint of H40 casing must pass several quality control gates:
Hydrostatic Testing (Mandatory): Every pipe is filled with water and pressurized to ensure it can withstand the internal pressure without leaking.
Tensile Testing: Verifying the yield and tensile strength on samples from every heat.
Flattening Test: For ERW casing, the pipe is crushed to check the integrity and ductility of the weld seam.
Visual Inspection: Checking for surface defects, straightness, and circularity.
Dimensional Inspection: Verification of OD, Wall Thickness, and Length.
Threading Inspection: Using gauges to check thread form, pitch, and taper to ensure a gas-tight seal when connected.
Drift Test: Passing a cylindrical mandrel (the "drift") through the pipe to ensure the internal diameter is clear.

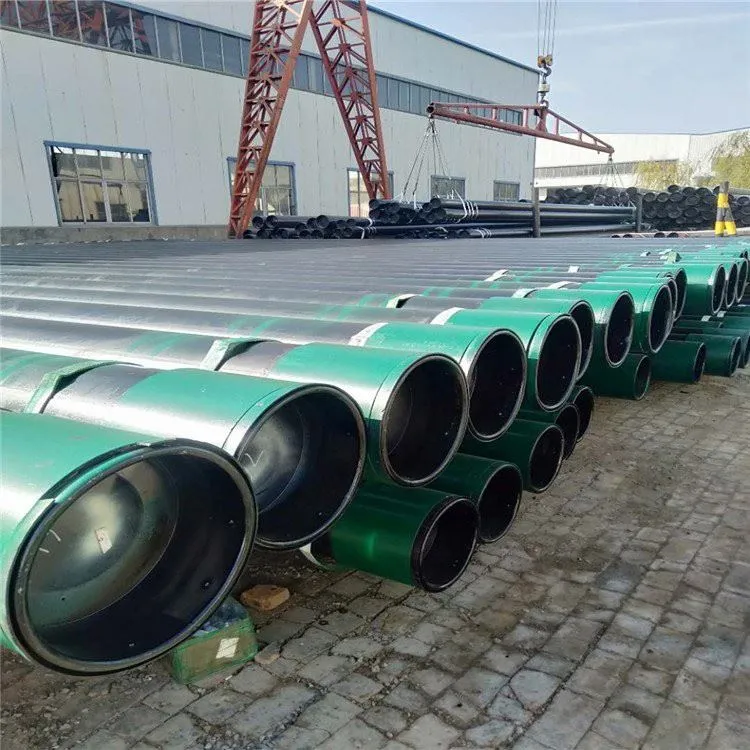

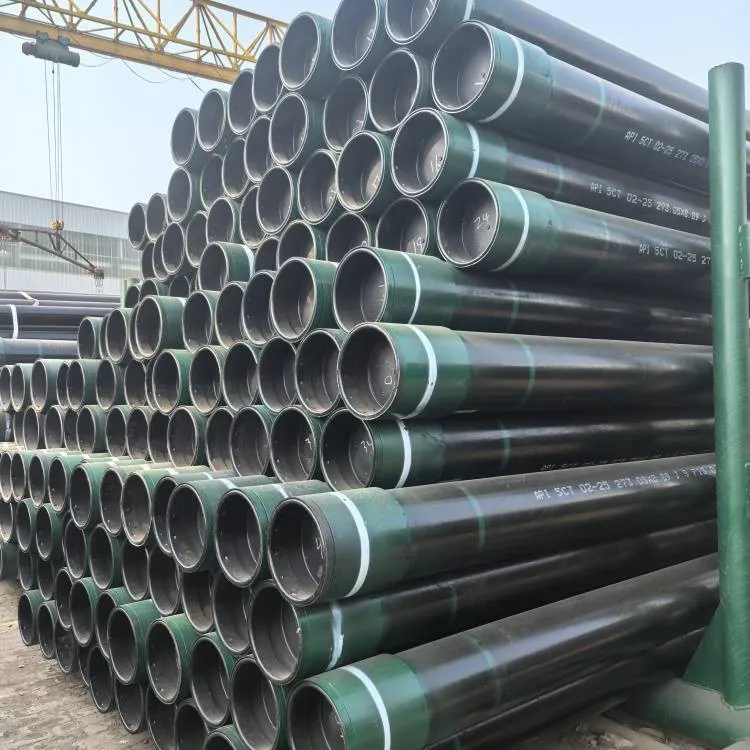

API 5CT Casing factory
API 5CT Casing Pipe Test Equipments
API 5CT Casing Hollow Pipe Certificate
FAQ
What is the tolerance for API 5CT casing?
The tolerances for API 5CT casing are strictly defined to ensure that the pipes can be safely connected and lowered into a wellbore. These tolerances cover outside diameter, wall thickness, weight, and length.
| Parameter | Tolerance Limit |
| Outside Diameter |
+1.00%/−0.50% (for ≥ 4.5") |
| Wall Thickness |
−12.5% (Minimum) |
| Weight (Single Joint) |
+6.5%/−3.5% |
| Straightness |
≤0.2% of total length |
| Length (Range 2) | 25 ft to 34 ft |
What thickness is API casing?
Depending on the size of the pipe, wall thicknesses generally range from 5 mm to over 16 mm (0.200" to 0.650"+).
