API 5L X65 PSL2 pipeline steel strictly adheres to the API 5L standard set by the American Petroleum Institute (API), which specifies clear requirements for core indicators such as chemical composition, mechanical properties, and dimensional tolerances. X65 indicates a minimum yield strength of 65 ksi (approximately 448 MPa), classifying it as a medium-to-high strength pipeline steel.
Its carbon equivalent (Ceq) is typically controlled below 0.43, and its phosphorus and sulfur content is below 0.025%. Fine-grained strengthening is achieved through the addition of microalloying elements (such as Nb, V, and Ti), resulting in a steel that combines high strength with good low-temperature toughness.
Versatile API 5L X65 PSL2 Solutions: Seamless & Welded Options for Integrated Onshore/Offshore Networks.
API 5L X65 PSL2 Seamless pipe and welded pipe Specification
| Features / Specs | Seamless Pipe (SMLS) | Electric Resistance Welded (ERW / HFW) | Longitudinal Submerged Arc Welded (LSAW) | Spiral Submerged Arc Welded (SSAW) |
| Manufacturing Process | Hot Rolled / Cold Drawn (No weld seam) | High-Frequency Induction Welding | Single Steel Plate Forming / Double-sided Submerged Arc Welding | Steel Coil Spiral Forming / Double-sided Submerged Arc Welding |
| Common OD Range | 1/2" – 24" (21.3 - 610mm) | 4" – 24" (114.3 - 610mm) | 16" – 60" (406.4 - 1524mm) | 16" – 100"+ (406.4 - 2540mm) |
| Common Wall Thickness | SCH 20 – SCH XXS (Up to 60mm) | Max 25.4mm (Depends on OD) | 6.0mm – 60mm | 6.0mm – 25.4mm |
| Common Length | 5.8m, 6.0m, 11.8m, 12m (SRL/DRL) | Max 18m | Max 12.5m (Single Seam) / 18m | Max 20m+ (Customizable) |
| Steel Grade | API 5L X65 PSL2 | API 5L X65 PSL2 | API 5L X65 PSL2 | API 5L X65 PSL2 |
| Main Applications | Offshore / Deepwater high-pressure, Sour Service, Critical Pumping Stations. | Onshore medium-pressure oil & gas, refined product transport. | Long-distance large-diameter gas transmission, Deep-sea pipelines. | Low-pressure water transport, Slurry transport, Piling pipes. |
| Price Index | Highest (Due to complex manufacturing) | Moderate (High production efficiency) | Higher (Targeted at large-scale projects) | Lower (Cost-effective for large diameters/lengths) |
Technical Comparison Table for International Buyers
| Feature / Parameter | API 5L X65 (PSL1) | API 5L X65 (PSL2) | LATAM Project Impact |
| Chemical Limits (C, P, S) | Standard Limits | Strict Limits (S ≤ 0.015%) | Enhances HIC resistance for sour service fields in Brazil/Argentina. |
| Carbon Equivalent (CEq) | No mandatory limit | Mandatory (Max 0.43) | Ensures superior field weldability in high-altitude Andean regions. |
| Impact Test (CVN @ -45°C) | Not Required | Mandatory & Customizable | Vital for Andes/Offshore: Guarantees toughness against brittle fracture in extreme cold. |
| Non-Destructive Testing | Optional / Visual | 100% Mandatory (UT/RT) | Eliminates hidden defects, reducing costly repairs in remote Amazon/Deepsea sites. |
| Traceability | Limited | Full End-to-End Tracking | Meets ISO requirements for major South American infrastructure tenders. |
API 5L X65 PSL2 pipeline services
Onshore Pipelines Corrosion Protection Solutions
Environmental Challenges: Moist soil, microbial corrosion, mechanical abrasion during construction.
- 3LPE (Triple-Layer Polyethylene) – Preferred Onshore Solution:
Structure: Bottom layer FBE (epoxy powder) + Middle layer adhesive + Outer layer high-density polyethylene (PE).
Advantages: Combines the strong adhesion of FBE with the excellent resistance to mechanical damage of PE.
- Single/Double-Layer FBE (Fuse-Bonded Epoxy Powder):
Advantages: Lower cost, excellent adhesion and resistance to cathodic disbondment.
Suitable for oil pipelines in high-temperature environments in Colombia or Brazil (FBE has better temperature resistance than 3LPE).
Offshore Pipelines Corrosion Protection Solutions
Environmental Challenges: High-salinity seawater, deep-sea pressure, ocean currents, buoyancy requirements.
- 3LPP (Triple-Layer Polypropylene):
Advantages: Superior performance to 3LPE, especially in high-temperature (up to 110°C) and deep-water environments.
Ideal for Brazilian pre-salt deep-sea oil fields; 3LPP has higher hardness and can withstand the immense pressure of deep-sea installations.
- CWC (Concrete Weighting Layer):
Structure: Reinforced concrete is sprayed over an anti-corrosion layer (such as 3LPE/FBE).
Advantages: Provides negative buoyancy to ensure pipeline stability at seabed locations and prevents physical damage from anchor chains or fishing nets.
An essential solution for pipelines in offshore nearshore or shallow water areas.
- Internal Liquid Epoxy Coating:
Function: Reduces frictional resistance, improves transport efficiency, and prevents corrosion from acidic media inside the pipe.
For long-distance transnational natural gas pipelines, internal drag-reducing coatings can significantly reduce operating electricity costs.

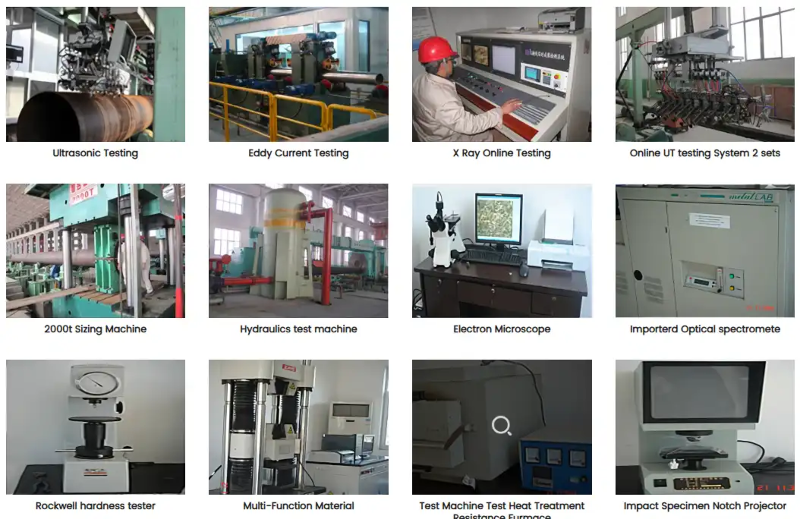

Test and Inspection of API 5L X65 PSL2 Oil and Gas Pipeline
Packaging & Logistics for API 5L X65 PSL2 Onshore vs. Offshore Pipelines
| Feature | Onshore Pipelines | Offshore Pipelines |
| Primary Coating | 3LPE / FBE | 3LPP / CWC (Concrete Weight Coating) |
| Packaging Focus | Anti-Mechanical Abrasion: Use of rubber spacers/strips to prevent coating-to-coating friction. | Extreme End Protection: Use of heavy-duty steel protectors to safeguard bevels against impact. |
| Transportation Mode | Inland Trucking + Breakbulk Vessel | Specialized Heavy-lift Vessel / Offshore Construction Vessel (OCV) |
| Critical Requirements | ISPM 15 Compliance: Mandatory wood fumigation for international customs (LATAM standards). | Dimensional Tolerance Integrity: Ensuring pipe roundness for high-precision deepwater installation. |
| Lifting Equipment | Wide Nylon Slings (to prevent coating scratches) | Specialized Vacuum Lifters or Rubber-padded Lifting Hooks |
FAQ
What is the composition of API X65?
X65 steel is classified as a low-carbon alloy steel, specifically designed for pipeline applications. Its chemical composition typically includes around 0.06% to 0.15% carbon, with manganese content ranging from 1.2% to 1.6%.
What is the difference between API 5L X65 PSL1 and PSL2?
API 5L PSL1 steel line pipe has different types of ends,such as plain end,threaded end,bevel end and special coupling pipe,while API 5L PSL2 steel line pipe has only plain end. API 5L PSL1 steel pipes can be produced by various welding methods. However, continuous welding is limited to Grade A25.
