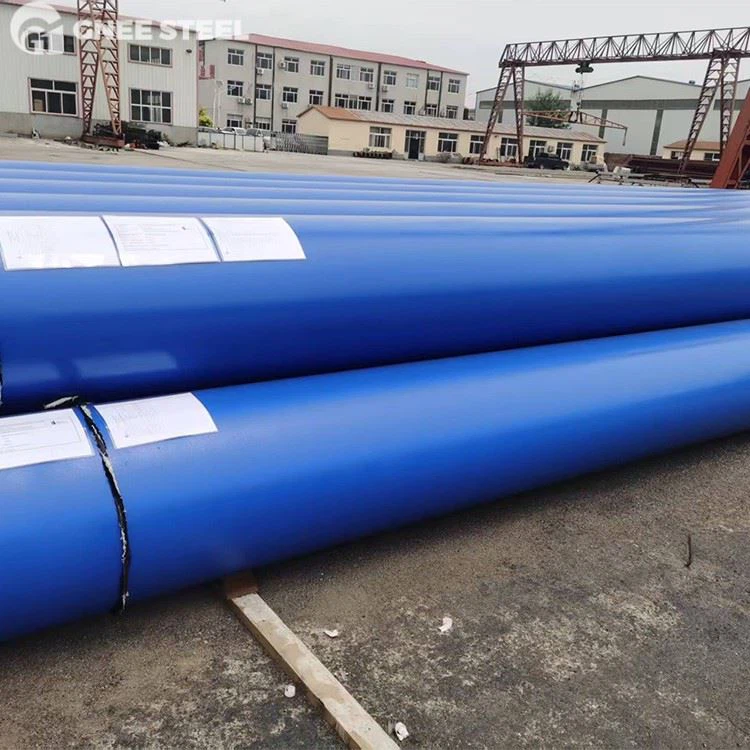

X65 PSL2 FBE line pipe is a high-strength low-alloy (HSLA) line steel of API 5L standard PSL2 grade, designed for harsh operating conditions. In its naming convention, "X" represents line pipe, and "65" indicates a minimum yield strength of 65 ksi (approximately 448 MPa), making it suitable for extreme conditions such as Arctic permafrost and deep-sea high pressure.
Engineered for the Andes: High-Toughness X65 PSL2 FBE Pipes with Mandatory Impact Testing.
Technical Comparison Table: API 5L X65 PSL1 vs. PSL2
| Feature / Parameter | API 5L X65 (PSL1) | API 5L X65 (PSL2) | Remarks (Key Procurement Insights) |
| Yield Strength | Min: 450 MPa (65,300 psi) <br>Max: Not Specified | Min: 450 MPa (65,300 psi) <br>Max: 600 MPa (87,000 psi) | PSL2 specifies a maximum limit to prevent excessive strength that could lead to welding difficulties. |
| Tensile Strength | Min: 535 MPa (77,600 psi) <br>Max: Not Specified | Min: 535 MPa (77,600 psi) <br>Max: 760 MPa (110,200 psi) | PSL2 strictly defines the strength range for enhanced safety and performance. |
| Yield-to-Tensile Ratio | No Requirement | ≤ 0.93 | A critical indicator for assessing steel ductility; mandatory for PSL2 compliance. |
| Charpy V-notch (CVN) Impact | Not mandatory (unless specified in contract) | Mandatory Requirement | Essential for high-pressure/low-temperature projects in South America. Typically tested at 0°C or below. |
| Min. Impact Energy (KV) | N/A | Avg ≥ 27J (Longitudinal) / 40J (Transverse) <br>(Varies by OD and wall thickness) | Ensures the pipe material does not undergo brittle fracture during sudden impacts or surges. |
| Chemical Composition (C, P, S) | Relatively relaxed limits (e.g., S ≤ 0.030%) | Extremely strict limits (e.g., S ≤ 0.015%) | Low sulfur content improves steel purity and HIC (Hydrogen-Induced Cracking) resistance. |
| Carbon Equivalent (CEq / CEpcm) | No mandatory requirement | Mandatory (Max: 0.43 or as per agreement) | Directly affects the preheat temperature and quality for field welding in varied climates. |
| Traceability | Ends at the factory (No mandatory end-to-end tracking) | Mandatory Full Traceability | Every pipe must be traceable from the steel melt (heat number) to the finished product. |
| Surface Protection (FBE) | Optional | Highly Recommended | FBE coating offers excellent adhesion on high-strength X65 steel, providing a robust barrier in humid basins. |
The Core Process Flow of FBE Anti-corrosion Treatment
FBE anti-corrosion is not simply "spraying paint," but a precisely controlled thermochemical reaction process:
Surface Pre-treatment & Cleaning:
Standard: Must meet ISO 8501-1 Sa 2.5 grade (near-white metal grade).
Process: Remove oxide scale and rust from the steel pipe surface using a shot blasting machine, forming an anchor pattern depth of 40-100μm. This acts as a solid "foundation" for the coating, ensuring extremely high adhesion.
Induction Heating: Uniformly heat the steel pipe to 210°C - 240°C. Temperature control must be accurate to ±5°C, which is the optimal temperature window for the epoxy powder to cross-link and cure.
Electrostatic Spraying: Epoxy powder is sprayed through an electrostatic spray gun, and the charged powder is uniformly adsorbed onto the heated steel pipe surface. The powder melts and flows instantly, forming chemical bonds with the steel surface.
Curing & Quenching: After spraying, the steel pipe undergoes a period of air curing, followed by rapid cooling in a water-cooling system. This process locks in the physical properties of the coating, resulting in a hard, smooth protective film.
Test and inspection of API 5L X65 PSL2 Epoxy Coated Pipe
Packaging services of API 5L X65 PSL2 Pipeline
FBE coating has extremely high adhesion but is relatively brittle. For the frequent transshipment and complex port handling in South America, we implement the following standards:
Triple End Protection:
Bevel Rust Prevention: Exposed bevels are coated with a high-performance transparent rust-preventive paint (Varnish) to prevent sea salt intrusion.
Heavy-Duty Caps: Fully enclosed/embedded heavy-duty plastic caps are used to prevent foreign objects from entering the pipe and protect the bevel.
Steel-Plastic Protectors: For large-diameter X65 pipes, we recommend using protectors with metal frames to ensure that the bevel does not deform during lifting impacts.
Separation System:
Loose Pipes: At least three rubber strips or thick straw ropes are placed between layers to prevent metal-to-metal or coating-to-coating friction between the steel pipes due to ship rolling.
Bundled Pipes: Small-diameter pipes are bundled using hexagonal straps. A nylon pad or rubber sheet must be placed under each steel strap to prevent the straps from damaging the FBE coating.
UV-Resistant Wrapping:
South America has abundant sunshine and some ports have long customs clearance periods. We provide full-body white woven fabric wrapping to effectively reflect UV rays and prevent the FBE coating from chalking.
Transportation of API 5L X65 PSL2 FBE Coated Line Pipes
Preferred Storage Locations: Under-Deck Storage
We always prioritize reserving under-deck storage locations on bulk carriers for FBE-coated pipes. Under-deck storage avoids the effects of direct sunlight, wave erosion, and high salt spray on deck, maximizing the preservation of the coating's physical properties.
Container Bracing:
For steel pipes up to 12 meters in length, robust wooden bracing is mandatory for container transport.
Compliance: All wooden supports must bear ISPM 15 fumigation markings, fully complying with the quarantine requirements of Brazilian (MAPA) and Chilean customs to avoid customs penalties.
Soft Lifting:
Wide nylon slings are mandatory throughout the entire process. The use of wire ropes, hooks, or electromagnetic chucks to contact the FBE-coated surface is strictly prohibited at loading and unloading ports.
