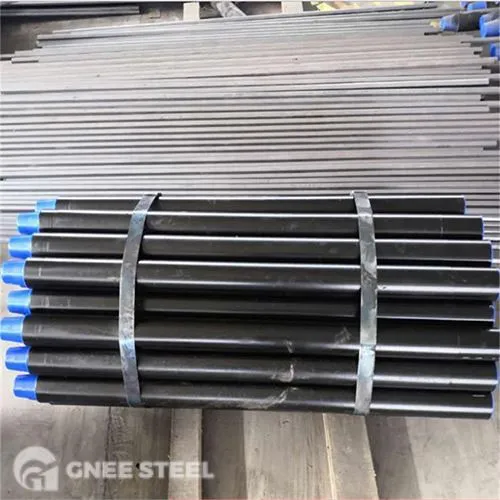

API 5DP E75 X95 G105 S135 thick-walled piping Description
API 5DP drill pipe is widely used in land and offshore drilling operations, there are E75, X95, G105, S135 grades of drill pipe for different strength environments.API 5DP drill pipe has the following features and advantages:
- Material and Manufacturing: API 5DP drill pipe is manufactured from high quality alloy steel, containing elements such as chromium, molybdenum and vanadium to improve the strength, toughness and corrosion resistance of the material. The drill pipe undergoes a precise heat treatment and cold working process to ensure its internal structure is uniform and its surface is smooth, thus improving its fatigue and wear resistance.
- Structural features: The wall thickness and diameter of the drill pipe depends on different drilling requirements, and common sizes include 4-1/2 inches, 5-1/2 inches and 6-5/8 inches. The selection of wall thickness needs to balance the strength and weight in order to adapt to drilling operations at different depths and geological conditions. Special threaded connections at both ends, such as internally flat (IF), regular (REG) and through-hole (FH), ensure sealing and tensile strength of the joint.
- Performance advantages: API 5DP drill pipe has high strength, corrosion resistance, fatigue resistance and good sealing. It can withstand high torque and tensile loads, ensuring stable operation in deep wells and complex geological conditions. In addition, through the optimisation of the alloy composition, the drill pipe has good corrosion resistance and extended service life.
- Applications: API 5DP drill pipe is widely used in various drilling operations in the oil and gas industry, including land drilling, offshore drilling and directional drilling.
API 5DP well drilling pipe Specification
|
O.D |
Normal Weight |
Thickness |
Upsetting Type |
Grade |
Thread Model |
Jonit Extemal Diameter |
Pin thread Internal Diameter |
|
|
inch |
mm |
lb/ft |
mm |
mm |
mm |
|||
|
2--3/8 |
60.32 |
6.65 |
7.11 |
EU |
E |
NC26 |
85.7 |
44.5 |
|
2--3/8 |
60.32 |
6.65 |
7.11 |
EU |
X,G |
NC26 |
85.7 |
44.5 |
|
2--7/8 |
73.02 |
10.40 |
9.19 |
EU |
E |
NC31 |
104.8 |
54.0 |
|
2--7/8 |
73.02 |
10.40 |
9.19 |
EU |
X,G |
NC31 |
104.8 |
50.8 |
|
2--7/8 |
73.02 |
10.40 |
9.19 |
EU |
S |
NC31 |
111.1 |
41.3 |
|
3--1/2 |
88.90 |
9.50 |
6.45 |
EU |
E |
NC38 |
120.7 |
68.3 |
|
3--1/2 |
88.90 |
13.30 |
9.35 |
EU |
E |
NC38 |
120.7 |
68.3 |
|
3--1/2 |
88.90 |
13.30 |
9.35 |
EU |
X |
NC38 |
127.0 |
65.1 |
|
3--1/2 |
88.90 |
13.30 |
9.35 |
EU |
G |
NC38 |
127.0 |
61.9 |
|
3--1/2 |
88.90 |
13.30 |
9.35 |
EU |
S |
NC38 |
127.0 |
54.0 |
|
3--1/2 |
88.90 |
13.50 |
11.40 |
EU |
E |
NC38 |
127.0 |
65.1 |
|
3--1/2 |
88.90 |
13.50 |
11.40 |
EU |
X |
NC38 |
127.0 |
61.9 |
|
3--1/2 |
88.90 |
13.50 |
11.40 |
EU |
G |
NC38 |
127.0 |
54.0 |
|
3--1/2 |
88.90 |
13.50 |
11.40 |
EU |
S |
NC40 |
139.7 |
57.2 |
|
4 |
101.60 |
14.00 |
8.38 |
IU |
E |
NC40 |
133.4 |
71.4 |
|
4 |
101.60 |
14.00 |
8.38 |
IU |
S |
NC40 |
133.4 |
68.3 |
|
4 |
101.60 |
14.00 |
8.38 |
IU |
G |
NC40 |
139.7 |
61.9 |
|
4 |
101.60 |
14.00 |
8.38 |
IU |
D |
NC40 |
139.7 |
50.8 |
|
4 |
101.60 |
14.00 |
8.38 |
EU |
E |
NC46 |
152.4 |
82.6 |
|
4 |
101.60 |
14.00 |
8.38 |
EU |
X,G |
NC46 |
152.4 |
82.6 |
|
4 |
101.60 |
14.00 |
8.38 |
EU |
S |
NC46 |
152.4 |
76.2 |
|
4--1/2 |
114.30 |
13.75 |
6.88 |
IU |
E |
NC46 |
152.4 |
85.7 |
|
4--1/2 |
114.30 |
13.75 |
6.88 |
EU |
E |
NC50 |
168.3 |
95.3 |
|
4--1/2 |
114.30 |
16.60 |
8.56 |
EU |
E |
NC50 |
168.3 |
95.3 |
|
4--1/2 |
114.30 |
16.60 |
8.56 |
EU |
X,G |
NC50 |
168.3 |
95.3 |
|
4--1/2 |
114.30 |
16.60 |
8.56 |
EU |
S |
NC50 |
168.3 |
88.9 |
|
4--1/2 |
114.30 |
20.00 |
10.92 |
EU |
E |
NC50 |
168.3 |
92.1 |
|
4--1/2 |
114.30 |
20.00 |
10.92 |
EU |
X,G |
NC50 |
168.3 |
88.9 |
|
4--1/2 |
114.30 |
20.00 |
10.92 |
EU |
S |
NC50 |
168.3 |
76.2 |
|
4--1/2 |
114.30 |
16.60 |
8.56 |
IEU |
E |
NC46 |
168.3 |
82.6 |
|
4--1/2 |
114.30 |
16.60 |
8.56 |
IEU |
X,G |
NC46 |
158.8 |
76.2 |
|
4--1/2 |
114.30 |
16.60 |
8.56 |
IEU |
S |
NC46 |
158.8 |
69.9 |
|
4--1/2 |
114.30 |
20.00 |
10.92 |
IEU |
E |
NC46 |
158.8 |
76.2 |
|
4--1/2 |
114.30 |
20.00 |
10.92 |
IEU |
X |
NC46 |
158.8 |
69.9 |
|
4--1/2 |
114.30 |
20.00 |
10.92 |
IEU |
G |
NC46 |
158.8 |
63.5 |
|
4--1/2 |
114.30 |
20.00 |
10.92 |
IEU |
S |
NC46 |
158.8 |
57.2 |
|
5 |
127.00 |
19.50 |
9.19 |
IEU |
E |
NC50 |
168.3 |
95.3 |
|
5 |
127.00 |
19.50 |
9.19 |
IEU |
X |
NC50 |
168.3 |
88.9 |
|
5 |
127.00 |
19.50 |
9.19 |
IEU |
G |
NC50 |
168.3 |
82.6 |
|
5 |
127.00 |
19.50 |
9.19 |
IEU |
S |
NC50 |
168.3 |
69.9 |
|
5 |
127.00 |
19.50 |
9.19 |
IEU |
E |
5(1/2)FH |
177.8 |
95.3 |
|
5 |
127.00 |
19.50 |
9.19 |
IEU |
X,G |
5(1/2)FH |
177.8 |
95.3 |
|
5 |
127.00 |
19.50 |
9.19 |
IEU |
S |
5(1/2)FH |
184.2 |
88.9 |
|
5 |
127.00 |
25.60 |
12.70 |
IEU |
E |
NC50 |
168.3 |
88.9 |
|
5 |
127.00 |
25.60 |
12.70 |
IEU |
X |
NC50 |
138.6 |
76.2 |
|
5 |
127.00 |
25.60 |
12.70 |
IEU |
G |
NC50 |
168.3 |
69.9 |
|
5 |
127.00 |
25.60 |
12.70 |
IEU |
E |
5(1/2)FH |
177.8 |
88.9 |
|
5 |
127.00 |
25.60 |
12.70 |
IEU |
X |
5(1/2)FH |
177.8 |
88.9 |
|
5 |
127.00 |
25.60 |
12.70 |
IEU |
G |
5(1/2)FH |
184.2 |
88.9 |
|
5 |
127.00 |
25.60 |
12.70 |
IEU |
S |
5(1/2)FH |
184.2 |
82.6 |
API 5DP oil drill pipe for Sale
FAQ
Q:Can I get samples before order ?
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:How can I get a quotation from you ?
A:You can leave us message, and we will reply every message in time. Or we may talk on line.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely.
