ASMESA-179/SA-179M is the standard specification for seamless cold-drawn low-carbon steel tubes for heat exchangers and condensers, which specifies the applicable scope, outer diameter and wall thickness specifications, mechanical properties, chemical composition, heat treatment, product spraying and other requirements of steel tubes.
The main steel tube grades of boiler tubes for heat exchangers and condensers produced by GNEE are: A179, SA179.
A179 Heat Exchanger Tubes meet the requirements of A450/A450M standards and are processed by cold drawing and heat treatment. When ordering, it is necessary to specify the specific quantity and size information. After negotiation, other grades of steel tubes can also be supplied. And submit relevant test reports.

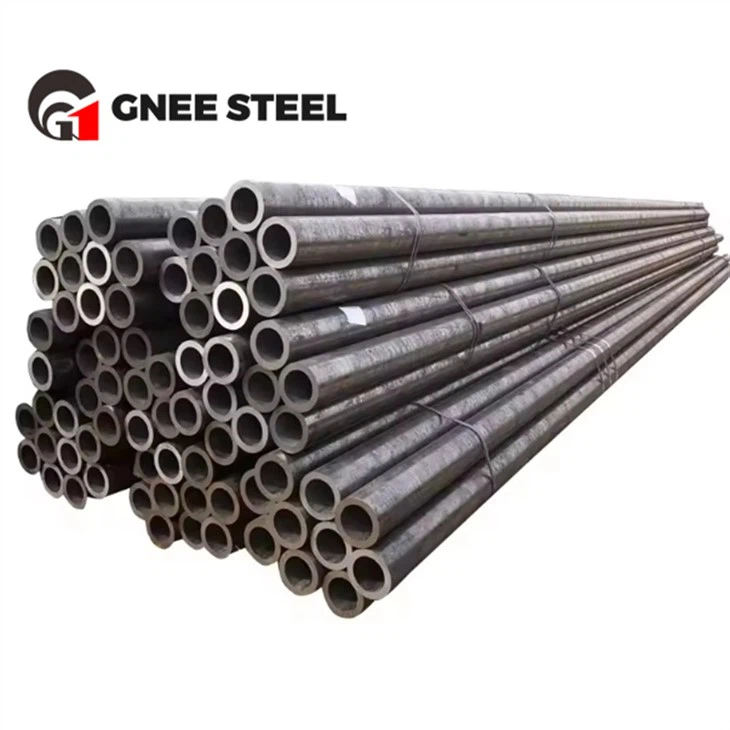

ASME SA179 Carbon Steel Tube
The chemical composition of SA179 steel pipe meets the following requirements:
Carbon, % 0.06-0.18
Manganese, % 0.27-0.63
Phosphorus, maximum content % 0.035
Sulfur, maximum content % 0.035
Heat Treatment
ASTM A179 steel pipes must be heat treated at 1200°F [650°C] or higher after the last cold drawing.
Surface Condition
Finished pipes must be free of flaking, and small amounts of oxides cannot be considered flaking.
The A179 standard is applicable to outer diameters from 1/8 inch to 3 inches [3.2 to 76.2 mm].
Quality inspection of ASME SA179 Cold Drawn Carbon Steel Pipe
Flattening test
Take 1 specimen from each batch of 2 steel pipes or use a piece of them for flattening test.
Expansion test
Take 1 specimen from each batch of 2 steel pipes or use a piece of them for expansion test.
Hydrostatic test
Each steel pipe shall be subjected to hydrostatic test, or replaced by non-destructive electrical test when otherwise required by the purchaser.
ASME SA179 Low-Carbon Steel tube Product Marking
In addition to the marking specified in A 450/A 450M, the marking may include the purchaser's company name and order number.
Advantages of Choosing GNEE A179 seamless Steel Pipe
GNEE provides heat exchangers and condensers, boiler tubes and gas cylinder tubes that meet ASTM A179 and other steel standards with competitive prices and timely delivery.
If you are interested in purchasing quality seamless tubes from reliable GNEE, please email now!sales@gneetube.com
