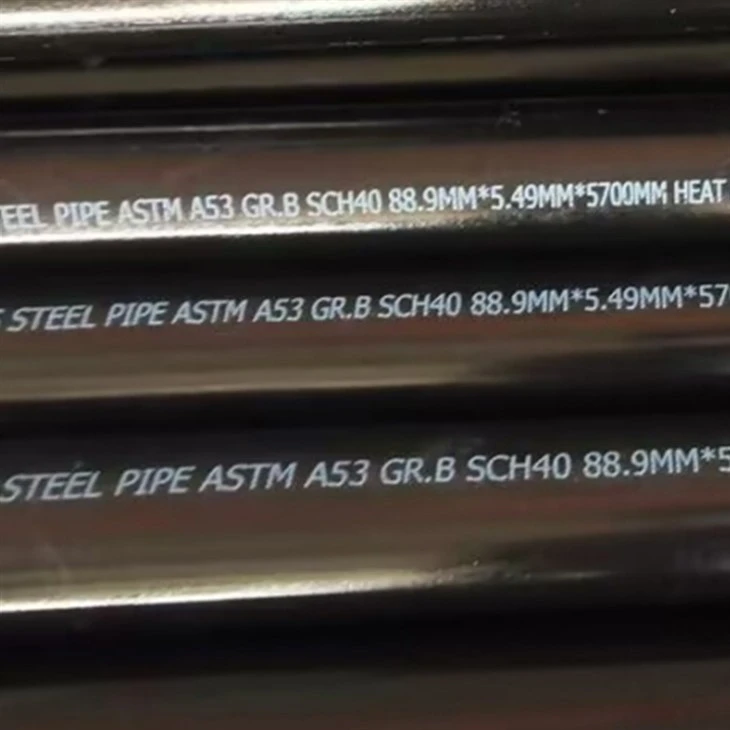

ASTM A53 is the standard for seamless and welded carbon steel pipes under the American ASTM standard. It is divided into two grades: A and B.
The main feature of A-grade steel pipes is that they are usually used for general purposes, such as force-bearing and pressure-bearing parts, as well as general-purpose steam, water, gas and air pipelines.
B-grade steel pipes have higher tensile strength and are usually used in high-pressure and high-temperature environments. It is suitable for conveying water, oil and gas, etc., and is a more common steel pipe grade.
ASTM A53 Round Pipe sizes range from 10.3 mm (1/8 in.) to 660 mm (26 in.) OD.
ASTM A53 Material Pipe
ASTM A53 standard
a. Seamless Type S, has grade A and B.
b. Welded Type E (ERW), Grade A and B.
c. Furnace Welded Type F, Grade A only.
Chemical Composition Of ASTM A53 Carbon Steel Pipes
| / | Grade |
C, max |
Mn, max |
P, max |
S, max |
Cu*, max |
Ni*, max |
Cr*, max |
Mo*, max |
V*, max |
| Type S (Seamless) | A | 0.25 | 0.95 | 0.05 | 0.05 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| B | 0.3 | 1.2 | 0.05 | 0.05 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 | |
| Type E (Electric-resistance Welded) | A | 0.25 | 0.95 | 0.05 | 0.05 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| B | 0.3 | 1.2 | 0.05 | 0.05 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 | |
| Type F (Furnace-welded) | A | 0.3 | 1.2 | 0.05 | 0.05 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
Mechanical Properties Of ASTM A53 Pipe
|
Grade |
Mechanical Properties, Min. |
|
|
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
|
|
A/B |
415 |
240 |
GNEE Supply Specifications:
ASTM A53 Grade A and B
Types: Seamless, Welded (ERW), Galvanized
Sizes: 1/2" to 20"
Thickness: Schedule 10, 40, STD, XS, to XXS
Ends: Plain, Beveled, Threaded
Length: 20 ft, 40 ft, customized
Coating: 3PE, FBE, Varnished, Black, Zinc Coated
If you are looking for welded pipe , please contact us in time to get a quote! sales@gneetube.com
Supplier of A53 Carbon Steel Pipe
FAQ
Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
Q.What is your lead time?
A.Generally, our delivery time is within 7-45 days.
Q.What is your after-sales service?
A.We provide after-sales service and 100% quality assurance for our products.
