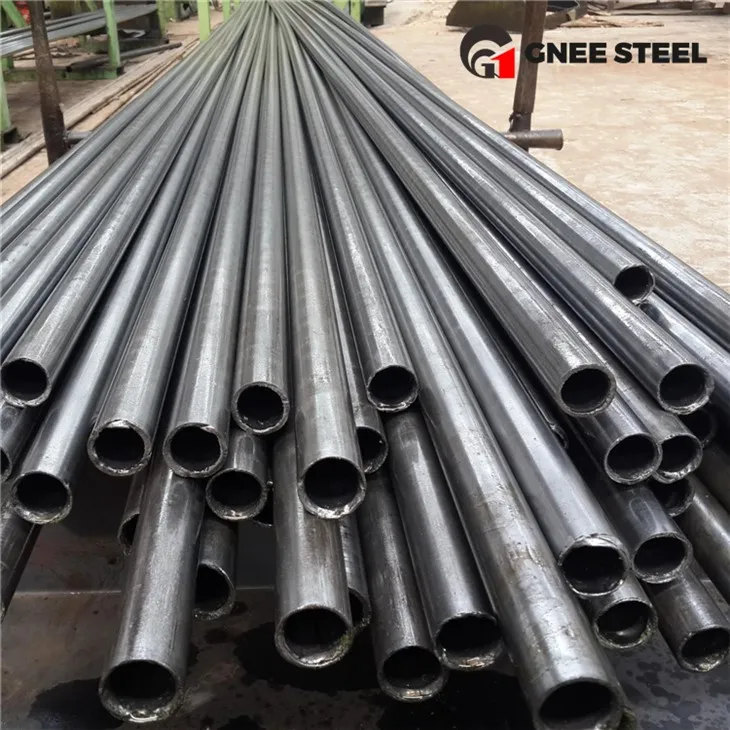

Introduction of EN10297 E470 seamless carbon steel pipe
E470 alloy round steel pipe is a high-strength alloy steel pipe with excellent mechanical properties and durability. Due to its seamless process, E470 seamless steel pipe has the advantage of no welds, making its structure more uniform and stable, with stronger pressure resistance, and is suitable for engineering situations that withstand high pressure.
The outer diameter of hot-rolled E470 European standard steel pipes produced by GNEE is generally 22-760mm, and the wall thickness is 2.5-200mm. The outer diameter of cold-rolled seamless steel pipes can be up to 6mm, the wall thickness can be up to 0.25mm, and the outer diameter of thin-walled pipes can be up to 5mm wall thickness. Less than 0.25mm, cold rolling has higher dimensional accuracy than hot rolling.
Applications of EN 10297-1 E470 Seamless circular steel tubes
E470 alloy steel pipe can be used in pipeline systems, structural supports and mechanical components in petroleum, chemical, electric power, machinery manufacturing and other industries.
Chemical Composition of E470 structural steel pipe
| Carbon | Silicon | Manganese | Vanadium | Phosphorus | Sulphur | Aluminium | Niobium | Titanium |
| 0.16/0.22 | 0.10/0.50 | 1.30 / 1.70 | 0.08 / 0.15 | ≤ 0.030 | ≤ 0.035 | ≤ 0.010 | ≤ 0.070 | ≤ 0.020 |
Typical (minimum) mechanical properties of E470 mechanical tubes - Quenched and tempered
| Steel Name | WT | Yield Strength MPa | Tensile Strength MPa | Elong % | Charpy J | Hardness HB |
| E470 | ≤ 16 | 590 | 700 | 16 | 40 | 205 |
| E470 | ≤ 25 | 540 | 570 | 16 | 40 | 160 |
| E470 | ≤ 50 | 480 | 570 | 16 | - | 160 |
E470 Carbon Steel Hollow pipe
Heat Treatment:
Normalising: Heat to 880°C Cool in still air
Stress Relieving: Heat to 600 - 620°C Cool in still air
Hardening: Heat to 880°C Quench in oil or water
Tempering: Heat to 500 - 600°C (or as required) Cool in still air.
Advantages of Choosing GNEE EN10297 E470 pipes
GNEE's stock products have outer diameters from 3mm and thicknesses from 0.1mm to 500mm. By cooperating with some well-known large steel mills in China, we can provide excellent quality, competitive prices and fast delivery. In addition, we can also provide a full range of processing services: cutting, chamfering, punching, welding, bending, grooving, pickling.
If you have needs for your project, please send us an email in time! sales@gneetube.com
Factory environment of E470 precision steel pipe
Gnee Packaging and shipping
