EN 10084 Carbon Steel Pipe is a low carbon steel pipe that combines 100-130% manganese, with low cost, good plasticity and easy forming characteristics.
EN 10084 Seamless Pipe Because of the low carbon content, the hardness of low carbon steel pipe is usually not as good as that of high carbon steel pipe, but carburizing treatment can increase its surface hardness.
The carburizing temperature is usually between 880-980°C, and the surface hardening temperature is between 780-820°C.
The forging hot forming temperature ranges from 1100-850°C, and the normalizing temperature ranges from 850-880°C.
EN 10084 Carbon Steel Seamless Pipe is widely used in the manufacture of mechanical parts that require high strength and wear resistance, such as gears, bearings, pins, etc.
Products Data
Chemical composition of EN 10084 pipes
| Products | Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|---|
| EN 10084 Grade C10R | 0.07-0.13 | max 0.40 | 0.30-0.60 | 0.035 | 0.04 | – | – | – | – | – |
| EN 10084 Grade C16E | 0.12-0.18 | max 0.40 | 0.60-0.90 | 0.035 | 0.035 | – | – | – | – | – |
| EN 10084 Grade C16R | 0.12-0.18 | max 0.40 | 0.60-0.90 | 0.035 | 0.04 | – | – | – | – | – |
| EN 10084 Grade 16MnCr5 | 0.14-0.19 | max 0.40 | 1.00-1.30 | 0.035 | 0.035 | – | – | 0.80-1.10 | – | – |
OD/Wall tolerance
| Execution | Size Range | OD Tolerance | Wall tolerance |
|---|---|---|---|
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall - 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall - 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
Products display

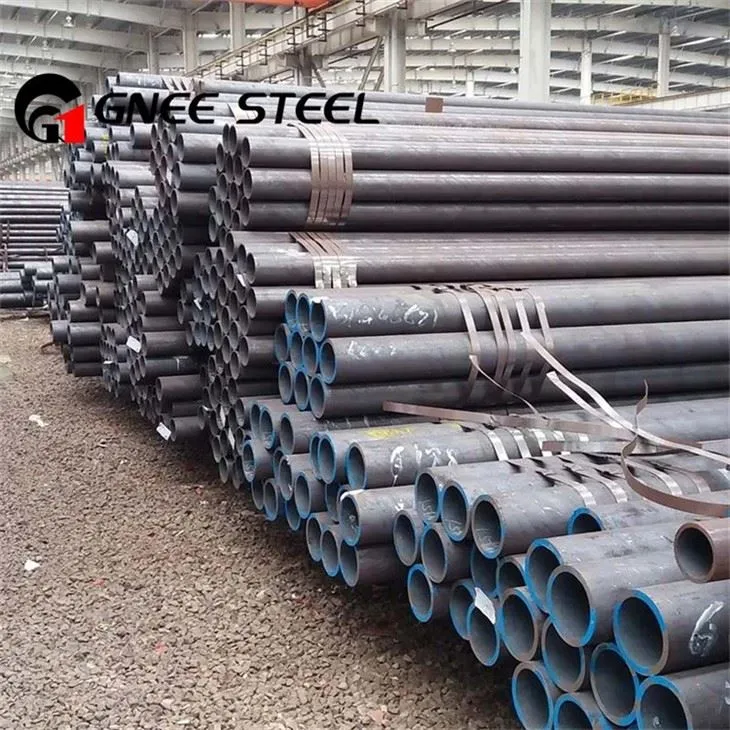

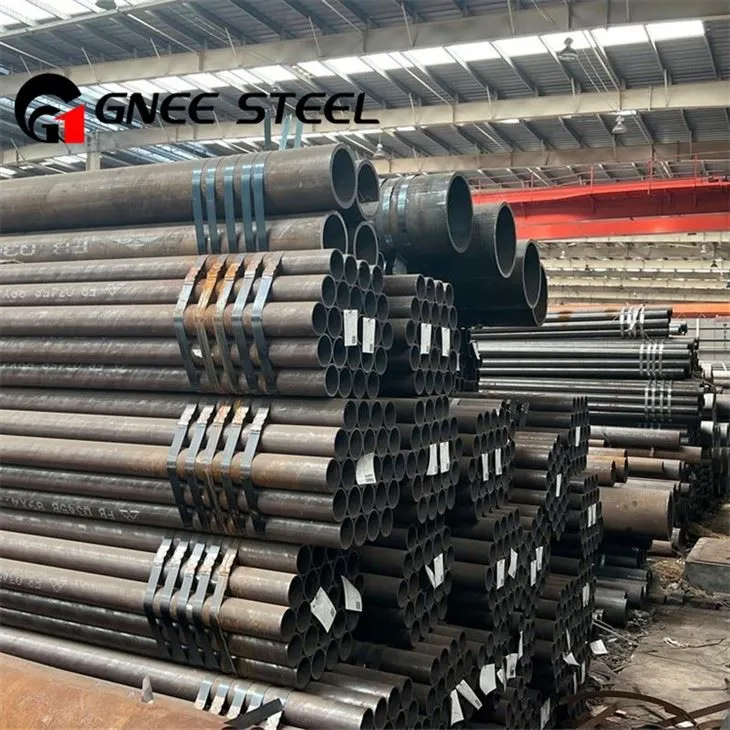

EN 10084 round carbon steel pipe
Why Choose GNEE
GNEE has 10 hot-rolled seamless steel pipe production lines and 5 cold-drawn seamless steel pipe production lines, capable of producing seamless pipes of various specifications and materials.
Our products are exported to more than 60 countries and regions including Kazakhstan, Canada, India, Brazil, and Southeast Asia.
If you would like to know more about our company or our products, please feel free to contact us. sales@gneetube.com
