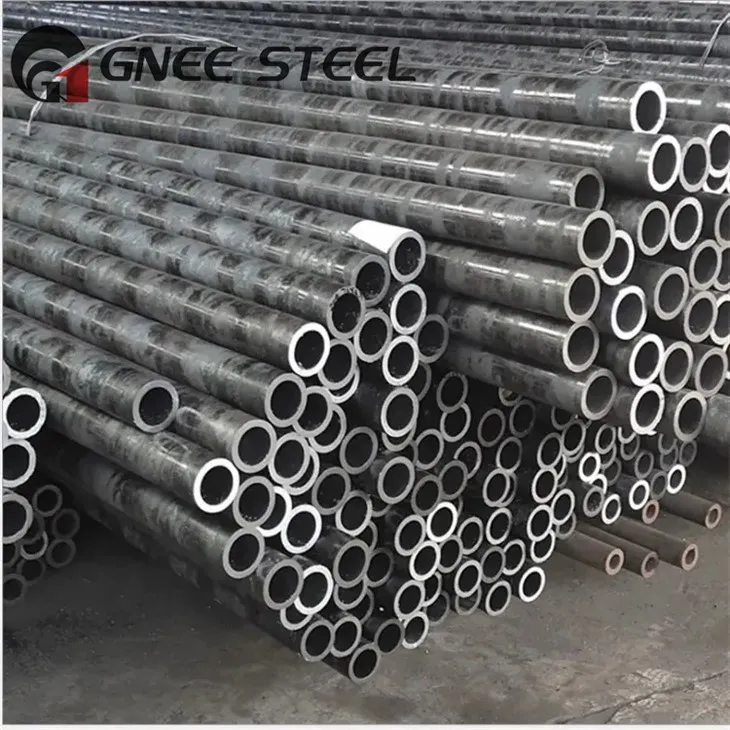

EN 10216-2 P265GH seamless carbon steel pipe is a specific type of seamless steel pipe that complies with European standard EN 10216-2. It is mainly used for pressure applications, especially those in high temperature environments.
GNEE During the manufacturing process, P265GH seamless steel pipe undergoes a complex process, including raw material preparation, pre-processing, heating, piercing/die forging, cooling and defect elimination to ensure product quality.
EN 10216-2 Seamless Steel Tube For Pressure
Chemical Composition of P265GH hot-rolled steel pipes
| Steel grades | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C% max | Si% max | Mn% max | P% max | S% max | Cr% max | Mo% max | Ni% max | Al.cał% min | Cu% max | Nb% max | Ti% max | V% max | Cr+ Cu+ Mo+ Ni% MAX | |
| P265GH | 0.20 | 0.40 | 1,40 | 0.025 | 0.020 | 0.30 | 0.08 | 0.30 | ≥ 0.020 | 0.30 | 0.010 | 0.040 | 0.02 | 0.70 |
Mechanical Property of P265GH steel alloy pipe
| Steel grades | Mechanical properties during tensile testing in room temperature | Resilience | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Upper yield limit or yield strength Re or R0.2 for wall thickness of t min | Tensile strength Rm | Elongation A min% |
Minimum energy average absorbed KVJ at the temperature of 0°C | |||||||||
| T≤16 | 16<T≤40 | 40<t≤60 | 60<T≤60 | I | T | |||||||
| MPa | MPa | MPa | MPa | MPa | I | t | 20 | 0 | -10 | 20 | 0 | |
| P265GH | 265 | 255 | 245 | - | 410- 570 | 23 | 21 | - | 40 | 28 | - | 27 |
Main Features:
Standard:EN 10216-2
Materials:P265GH
OD:10.2-711mm WT:1.6-100mm
length:5.8m,6m,11.8m,12m or random length
Advantages of Choosing GNEE P265gh Carbon Steel Pipe
GNEE has built modern large open-air warehouses and indoor warehouses with 20,000 tons of available goods. "Providing quality products, excellent services, competitive prices and timely delivery", we look forward to good cooperation with overseas customers on the basis of mutual benefit, exporting to the Middle East, North America, South America. Europe, Africa, Australia and other regions, forming a global marketing network.
Please feel free to contact us for more information on products.sales@gneetube.com
Gnee Customer visit
Gnee Factory environment

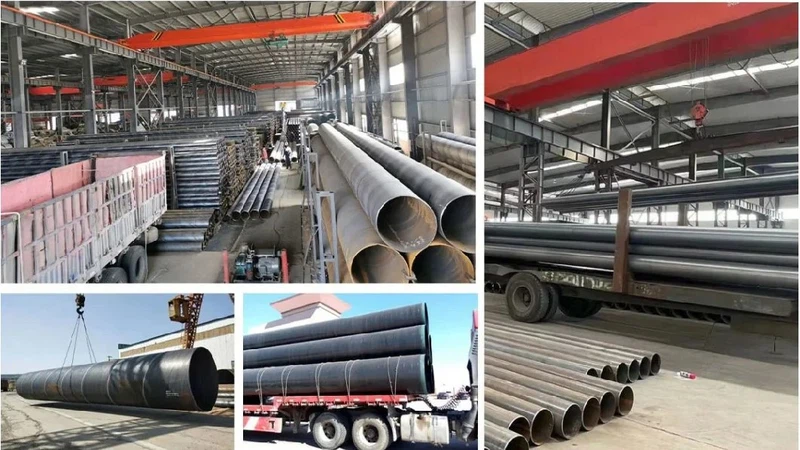

Gnee Packaging and shipping
FAQ
Q:Do you have experience for big projects ?
A:yes , we do .we have good experince for many big project , such as the power plant , Nuclear power station , oil refining project , natural gas project .Abillity to work with big project .
Q.Can your products be customized?
A.Yes, we can produce and process according to your requirements.
Q. Do you have a quality control system?
A.Yes, we have our own quality control laboratory.
