Cold formed EN 10219 S235JR grade steel pipes produced by GNEE are ideally suited for welded structures. These pipes essentially refer to structural hollow sections produced from non-alloy steel or fine-grained steel.
S235JR steel pipes use the letters JR to indicate the quality of their specified room temperature impact properties or specified 0°C impact properties. The values in EN 10219 S235JR carbon tubes indicate a minimum yield strength of approximately 235 N/mm2.
EN10219 S235JR ERW pipe is mainly used in liquid transportation, drainage systems, bridge construction and other fields.
EN 10219 Carbon Steel Pipes Specification Schedule
| Standard | EN 10219 |
| Outside Diameter | 21.3-457.2mm |
| Wall Thickness | 1.8--14.27mm |
| Circular Dimension Range | 26.9 – 323.9 mm |
| Square Dimension Range | 25×25 – 300×300 mm |
| Rectangular Dim Range | 40×20 – 400×200 mm |
| Length | 6000 – 12 000/18 000 mm |
| Grade | S235JRH |
Mechanical Properties Database EN 10219 S235JRH Welded Tubes
| Steel Grade | Minimum Yield Strength MPa | Tensile Strength MPa | Elongation | Impact Energy | |||
| Steel name | Steel number | thickness(mm) | thickness(mm) | % (min) | (KV J) (min) | ||
| ≤ 16 | 16> to ≤40 | ≤3 | > 3 ≤40 | ≤40 mm | test temperature | ||
| S235JRH | 1.0039 | 235 | 225 | 360-510 | 360-510 | 24 | 20℃ |

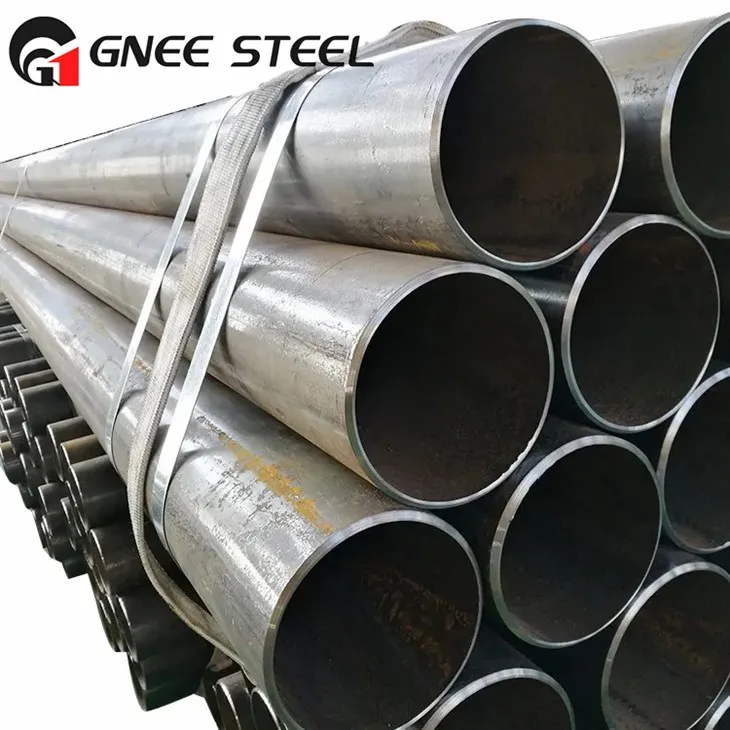

EN 10219 Grade S235JR ST33 welded steel pipes
Our advantage
GNEE exports S235JR ERW pipe steel pipes to 60 countries and regions around the world every year. The price is 10% lower than other suppliers. Production quality is strictly guaranteed, we will answer your questions and provide you with project solutions!
We conduct extensive testing and obtain EN 10219 hollow tube certification before delivery to customers. The entire manufacturing and testing process of welding EN 10219 hollow profiles is carried out under the supervision of experts.sales@gneetube.com
Gnee Factory environment
FAQ
Q.Is hot rolled pipe seamless?
A.Hot-rolled pipes are pipe fittings produced through hot-rolling processes and are common mechanical structural parts.
Q.What services do you provide?
A.Customized service for each customer, please feel free to contact us!
Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
