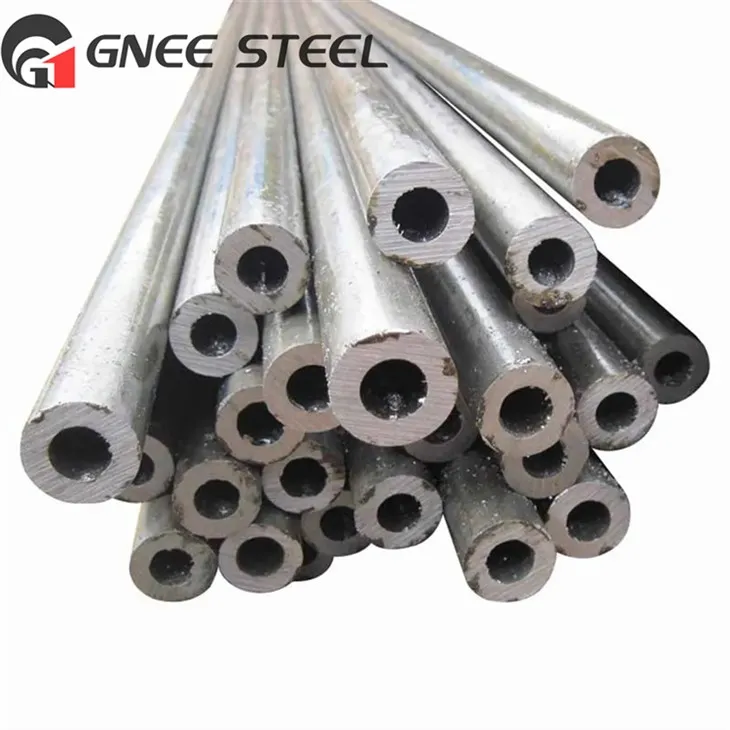

EN 10210 S355J2H seamless pipe is a type of low carbon steel pipe. These tubes are not as strong as mature carbon tubes, but have comparable strength and excellent stress resistance.
The chemical composition of S355J2H pipe is carbon 0.22%, silicon 0.55%, manganese 1.6%, phosphorus 0.03%, and sulfur 0.03%. And has excellent corrosion resistance to meet extreme temperature requirements. EN 10210 S355J2H seamless pipe has a tensile strength between 510Mpa and 680Mpa and a yield strength of at least 355Mpa.
S355J2H carbon tube is durable and cheap, and is widely used in various systems for the transportation of oil, natural gas, and petroleum. It is also used in boilers, heat exchangers and fluid tubes.
S355J2H EN 10210 Carbon Steel Pipe Chemical Composition
| Grade | C | Si | Mn | P | S |
| S355J2H (1.0576) | max 0.22 | max 0.55 | max 1.6 | max 0.03 | max 0.03 |
S355J2H Seamless Pipes Mechanical Properties
| Specification | EN10210 S355J2H |
| Tensile Strength Rm N/mm2: 3 ≤ T ≤ 100mm | 470 – 630 |
| Yield Strength ReH Min, N/mm2: T ≤ 16mm | 355 |
| Min Elongation % T ≤ 40mm on gauge length 5.65. √S0 | 22 |
| Impact properties Minimum Ave energy (J) at -20°C | 27 |
EN10210 S355J2H Seamless Tubes
S355J2H pipe Heat Treatment / Hot Forming
| Hot Forming | Heat Treatment | |||
| Temperature°C | Cooling Type | Normalizing 1″ | Stress relieving anneal 2″ | Cooling Type |
| 700-750 | Air | 850-950°C | 580-630°C | Air |
Our advantage
GNEE is a leading stockist of EN 10210 S355J2H Steel Pipe. Having the best quality products and making them available to everyone at reasonable prices.In addition,
GNEE's special business includes zero cutting, rounding, square cutting, special-shaped cutting, castings, and forgings. The product thickness can reach 150mm, and various special materials and specifications can be customized.
If you are looking for S355J2H seamless pipe, please contact us in time to get a quote!sales@gneetube.com
Gnee Factory environment
FAQ
Q.Is hot rolled pipe seamless?
A.Hot-rolled pipes are pipe fittings produced through hot-rolling processes and are common mechanical structural parts.
Q.What services do you provide?
A.Customized service for each customer, please feel free to contact us!
Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
