Products Description
Galvanized steel pipe is a type of pipe coated with a layer of zinc on its surface, which serves to prevent oxidation and corrosion of the steel pipe. Since steel itself is prone to rusting in moist or chemically active environments, the galvanizing process enables the pipe to maintain excellent physical and chemical properties even under harsh conditions. This material is primarily used in industrial and civil construction, with wide applications in water pipes, gas pipelines, structural tubing, and other fields.
Advantages & Disadvantages of Galvanized Steel Pipes
● Advantages:
Enhanced performance: The galvanized coating improves pipe durability and extends service life while maintaining low cost.
Hot-dip galvanized pipes offer additional benefits such as uniform coating thickness and strong adhesion.
● Disadvantages:
Rust accumulation: When used as water pipes, galvanized pipes develop heavy rust scale over time, releasing yellowish water that stains fixtures and harbors bacteria due to rough inner surfaces.
Health risks: Rust corrosion increases heavy metal content in water, posing serious health hazards.
Cold-dip galvanized pipes have less zinc coating, significantly poorer corrosion resistance than hot-dip galvanized pipes. Their zinc layer is thin, loosely bonded, and prone to peeling due to weak adhesion to the steel base.
Products specification
Section Shape: Round
Place Of Origin: China
Tolerance: ±10%
Category: Seamless Steel Pipe, Welded Steel Pipe, Square tubes
size:Outside diameter:Round pipe: 17mm-273mm
square pipe:15mm x 15mm - 400mm x 400mmRectangular pipe: 10mm x 20mm -200mm x 400mmwall thickness:
Round pipe: 0.6mm-12mmsquare pipe:0.6mm-20mmRectangular pipe: 0.6mm-20mm
Length:2m-5.8m/6m/12m ( We can adjust length according to your request)
Zinc Coating: 120~500 g/m2 (3oum~7oum)
Packing:steel Strips bundled,Plastic Caps plugged,Waterproof Paper wrapped etc.
|
Regulation |
grid OD |
Wall thickness mm |
Minimum wall |
|
Nominal inner diameter |
inch mm |
|
Thick mm |
|
DN15 |
1/2 21.3 |
2.8 |
2.45 |
|
DN20 |
3/4 26.9 |
2.8 |
2.45 |
|
DN25 |
1 33.7 |
3.2 |
2.8 |
|
DN32 |
1.25 42.4 |
3.5 |
3.06 |
|
DN40 |
1.5 48.3 |
3.5 |
3.06 |
|
DN50 |
2 60.3 |
3.8 |
3.325 |
|
DN65 |
2.5 76.1 |
4 |
3.5 |
|
DN80 |
3 88.9 |
4 |
|
|
DN100 |
4 114.3 |
4 |
|
|
DN125 |
5 140 |
4.5 |
|
|
DN150 |
6 168.3 |
4.5 |
|
|
DN200 |
8 219.1 |
6 (welded pipe) |
|
|
DN200 |
8 219.1 |
6.5 hot-dip galvanizing |
|

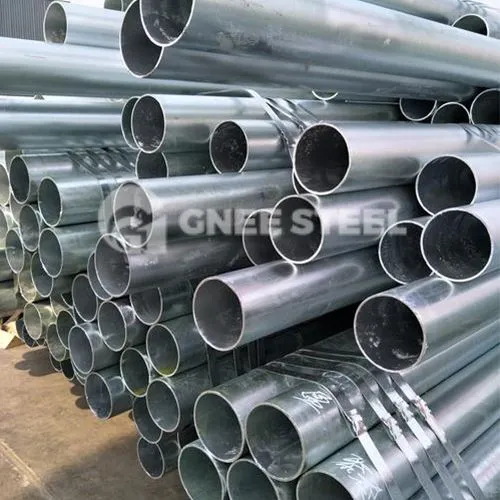

Galvanized Coating Steel Pipe
