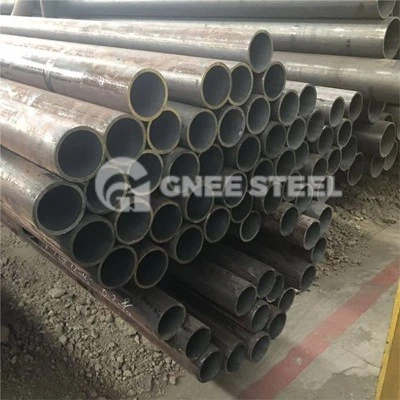

A333GR3 cryogenic steel pipes possess excellent low-temperature resistance. These pipes can maintain stable operation in extreme low-temperature environments ranging from -45℃ to -195℃ without exhibiting significant embrittlement or fracture. This characteristic makes A333GR3 steel pipes promising for wide application in the transportation of cryogenic fluids such as liquefied natural gas (LNG).
Chemical Composition (Authoritative Standard Values)
According to ASTM A333/A333M-24 standards, the chemical composition of A333 Gr3 seamless steel pipes is strictly controlled, with specific indicators as follows:
Carbon (C) ≤0.19%
Silicon (Si) 0.18-0.37%
Manganese (Mn) 0.31-0.64%
Phosphorus (P) ≤0.025%
Sulfur (S) ≤0.025%
Nickel (Ni) 3.18-3.82%.
The low carbon content reduces hardening tendency and improves weldability, while nickel significantly enhances low-temperature impact toughness. Strict control of harmful elements such as phosphorus and sulfur prevents grain boundary embrittlement and ensures stable low-temperature performance.
Mechanical Performance Requirements
The mechanical properties of seamless steel pipes made of A333 Gr3 material must meet the following standards:
Tensile strength ≥ 450 MPa
Yield strength ≥ 240 MPa
Elongation (A5) ≥ 30%
Charpy V-notch impact energy at -100℃ ≥ 27 J
Hardness (HB) ≤ 217.
Among these, the -100℃ impact energy is the core indicator, directly verifying the material's resistance to brittle fracture at ultra-low temperatures, ensuring the structural stability and safe operation of the pipeline under extreme conditions.
Applications:
1. Liquefied Natural Gas (LNG) Industry: Used as a core pipeline material in LNG receiving terminals and transportation pipelines. A large-scale LNG project used Gr3 steel pipes to construct the connection pipeline for a -162℃ cryogenic storage tank, and it operated for three years without any leaks, verifying its reliability at ultra-low temperatures.
2. Cryogenic Chemical Equipment: Used for heat exchange pipelines in cryogenic reactors, condensers, and other equipment to meet the production requirements of cryogenic media such as ethylene and propylene.
3. Oil and Gas Extraction: Used in cryogenic gathering and transportation pipelines on deep-sea oil and gas platforms, withstanding harsh environments from -50℃ to -80℃. Its fatigue resistance effectively extends the pipeline's service life.
