All-metal locking nuts follow the DIN980 standard, which is a standard for all-metal locking nuts, including two types: DIN980V and DIN980M.
"A2" and "A4" in A2-70 and A4-80 represent the types of stainless steel, where A2 usually refers to chromium stainless steel, while A4 refers to austenitic stainless steel. Specifically for A4-80, 80 means that its tensile strength is at least 800N/mm², which is a high-strength bolt type among stainless steel. Stainless steel bolts and nuts of this material are often used in applications that require high strength and corrosion resistance.
Products Data
| Thread specification | M3 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | |
| d | |||||||||||
| P | pitch | 0.5 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 |
| fine teeth | - | - | - | - | - | 1 | 1 | 1.5 | 1.5 | 1.5 | |
| fine teeth | - | - | - | - | - | - | 1.25 | 1.25 | - | - | |
| and | minimum | 6.01 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 |
| h | max = nominal | 3.7 | 4.2 | 5.1 | 6 | 7 | 8 | 10 | 12 | 14 | 16 |
| minimum | 3.4 | 3.9 | 4.8 | 5.7 | 6.5 | 7.5 | 9 | 11 | 12 | 14 | |
| s | max = nominal | 5.5 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | twenty two | twenty four |
| minimum | 5.32 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | |
Products display

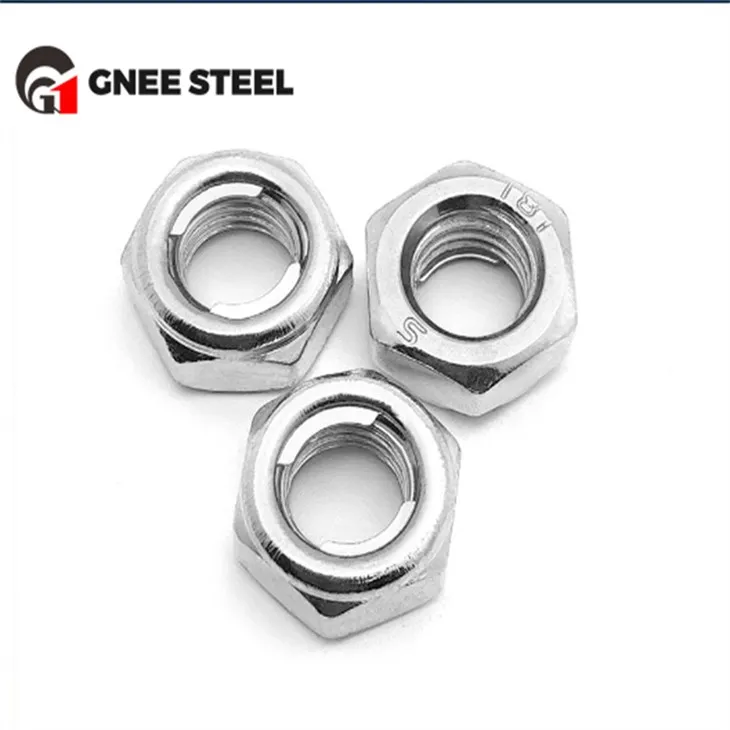

Stainless Steel A2-70 A4-80 All Metal Lock Nuts
Why Choose GNEE
GNEE is a leading exporter in the fastener industry, providing comprehensive services including design, development, production, sales and after-sales support.
We specialize in the production of screws, anchors, bolts, nuts and formwork accessories, washers, nails rivets and other accessories, and strictly adhere to quality management standards throughout the production process.
The products are exported to more than 70 countries including the Middle East, Russia, Asia, Europe, Africa and America.
If any question,please contact with us freely by E-mail or Telephone. sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
Q.Can you provide samples?
A. Yes, free samples are available for regular sizes, but buyers need to pay the shipping cost.
Q.Where are you located? Can I visit you?
A.Sure, you are welcome to visit our factory anytime.
