DIN928 square weld nuts follow the German industrial standard DIN 928. The nut has a wide range of nominal diameters, ranging from M2.5 to M56.
DIN928 square weld nuts are usually made of carbon steel, and there are also stainless steel versions.
The surface treatment provided by GNEE can be blue-white zinc-plated to improve its corrosion resistance and aesthetics. In addition, there are surface treatments such as blackening.
DIN928 square weld nuts are mainly used for welding on parts that need to be fastened, and are fixed by welding. They are suitable for the connection of various mechanical equipment and structures. Widely used in chemical, machinery, construction and other fields.
Products Data
| Thread size | M4 | M5 | M6 | M8 | M10 | 7/16 UNF-2B ① |
7/16 UNF-2B ① |
M12 | M14 | M16 | ||
| D | ||||||||||||
| P | coarse teeth | 0.7 | 0.8 | 1 | 1.25 | 1.5 | / | / | 1.75 | 2 | 2 | |
| b | Nominal | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 1.8 | 2 | 2 | 2.5 | 2.5 | |
| d 1 | min=nominal | 5 | 6 | 7.5 | 10 | 12.5 | 12.5 | 13.5 | 13.5 | 16.8 | 18.8 | |
| maximum value | 5.18 | 6.18 | 7.72 | 10.22 | 12.77 | 12.77 | 13.77 | 13.77 | 17.07 | 19.13 | ||
| d 2 | maximum value | 4.2 | 5.25 | 6.3 | 8.4 | 10.5 | 11.7 | 11.7 | 12.6 | 14.7 | 16.8 | |
| d 3 | minimum | 6.4 | 8.2 | 9.1 | 12.8 | 15.6 | 15.6 | 17.4 | 17.4 | 20.4 | 22.4 | |
| h 1 | Nominal | 0.6 | 0.8 | 0.8 | 1 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | |
| h 2 | minimum | 0.4 | 0.6 | 0.7 | 1.1 | 1.25 | 1.25 | 1.75 | 1.75 | 1.75 | 2 | |
| m | minimum | 3.2 | 3.9 | 4.7 | 6.14 | 7.64 | 8.64 | 8.64 | 9.14 | 10.97 | 12.57 | |
Products display

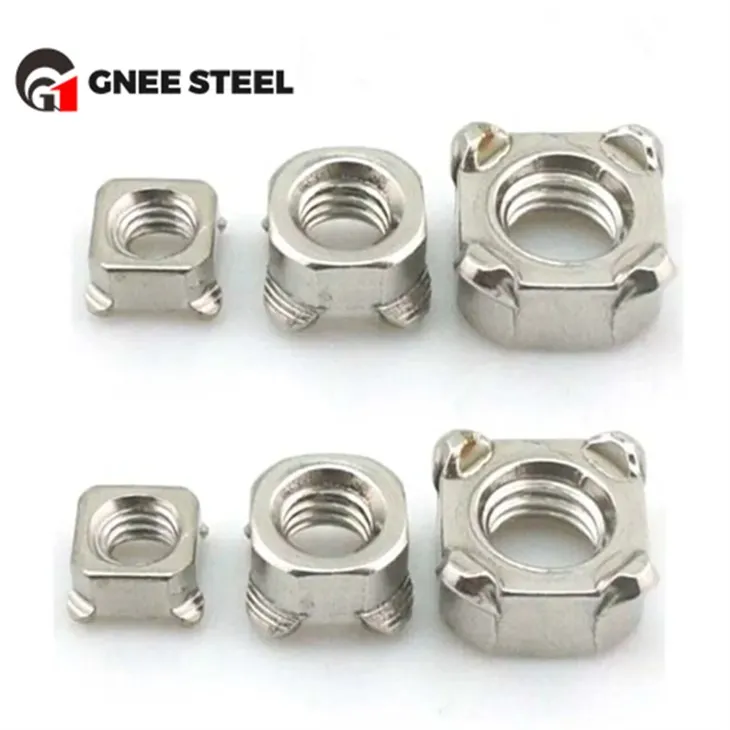

Stainless Steel DIN928 Square Weld Nuts
