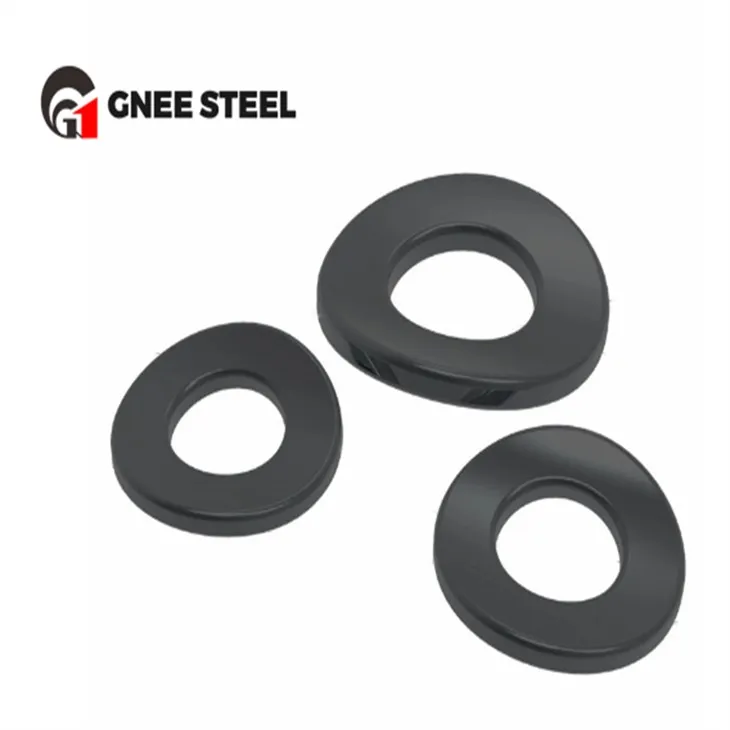

DIN42013 Wave Spring Lock Washer is a wave spring washer specifically used for axial adjustment of ball bearings in small motors.
DIN42013 Saddle spring washers are made of wave springs with several peaks and valleys on a thin metal ring, and are wavy in shape. By utilizing its elastic deformation characteristics, it can return to its original shape and maintain close contact when subjected to force, thereby achieving a sealing effect. Prevent fasteners from loosening.
Products Data
| Size | 3 | 4 | 5 | 6 | 8 | 10 | 12 | ||
| d | min | 3.2 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | |
| max | 3.5 | 4.6 | 5.6 | 6.76 | 8.76 | 10.93 | 13.43 | ||
| dc | min | 7.42 | 8.42 | 10.3 | 11.3 | 14.3 | 20.16 | 23.16 | |
| max | 8 | 9 | 11 | 12 | 15 | 21 | 24 | ||
| H | min | 0.8 | 1 | 1.1 | 1.3 | 1.5 | 2.1 | 2.5 | |
| max | 1.6 | 2 | 2.2 | 2.6 | 3 | 4.2 | 5 | ||
| h | 0.5 | 0.5 | 0.5 | 0.5 | 0.8 | 1 | 1.2 | ||
Products display
Saddle spring washers DIN42013
Why Choose GNEE
GNEE is a fastener manufacturing, plating/finishing and industrial production export company.
With over 16 years of experience in stainless steel fastener manufacturing, industry experience and state-of-the-art facilities.
We can provide the most common stainless steel fasteners or specially designed fasteners to exceed our customers' expectations as our suppliers are the best brands in the industry.
You are welcome to send us an inquiry for more information. sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q. Can I have a sample for it?
A: Yes, we welcome sample order to test and check quality.
Q. How to proceed an order for it?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q. What about the delivery time?
A: Normally the delivery time is around 10 days after payment.
