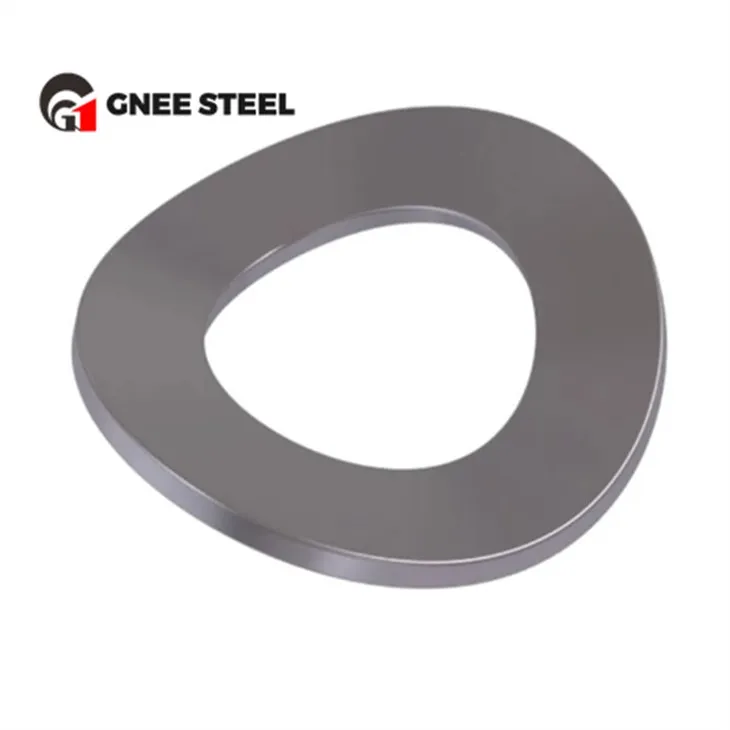

DIN137 steel wave washers are a type of component specially used for connecting and fixing mechanical parts. They have a unique wave structure and excellent elastic properties.
DIN137 wave washers are divided into type A and type B according to their appearance. They are suitable for bolts and nuts with a strength grade of 5.8 or below. Their function is to rely on their own resilience to maintain the preload of bolts and nuts to prevent the workpiece from loosening. They are used to connect and fix key components in these devices to ensure the stability and safety of the equipment.
Products Data
| Nominal diameter | 1 | 1.2 | 1.4 | 1.7 | 1.8 | 2 | 2.3 | 2.6 | |
| d | Min = Nominal (H14) | 1.1 | 1.3 | 1.5 | 1.8 | 1.9 | 2.2 | 2.5 | 2.8 |
| maximum value | 1.35 | 1.55 | 1.75 | 2.05 | 2.15 | 2.45 | 2.75 | 3.05 | |
| dc | Nominal (js16) | 2.5 | 3 | 3 | 4 | 4 | 4.5 | 5 | 5.5 |
| h | Nominal | 0.2 | 0.2 | 0.25 | 0.25 | 0.25 | 0.3 | 0.3 | 0.3 |
| H | minimum | 0.35 | 0.35 | 0.4 | 0.45 | 0.45 | 0.5 | 0.5 | 0.55 |
| maximum value | 0.7 | 0.7 | 0.8 | 0.9 | 0.9 | 1 | 1 | 1.1 | |
Products display
Saddle spring washers DIN 137
Why Choose GNEE
GNEE is a fastener manufacturing, plating/finishing and industrial production export company.
With over 16 years of experience in stainless steel fastener manufacturing, industry experience and state-of-the-art facilities.
We can provide the most common stainless steel fasteners or specially designed fasteners to exceed our customers' expectations as our suppliers are the best brands in the industry.
You are welcome to send us an inquiry for more information. sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q. Can I have a sample for it?
A: Yes, we welcome sample order to test and check quality.
Q. How to proceed an order for it?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q. What about the delivery time?
A: Normally the delivery time is around 10 days after payment.
