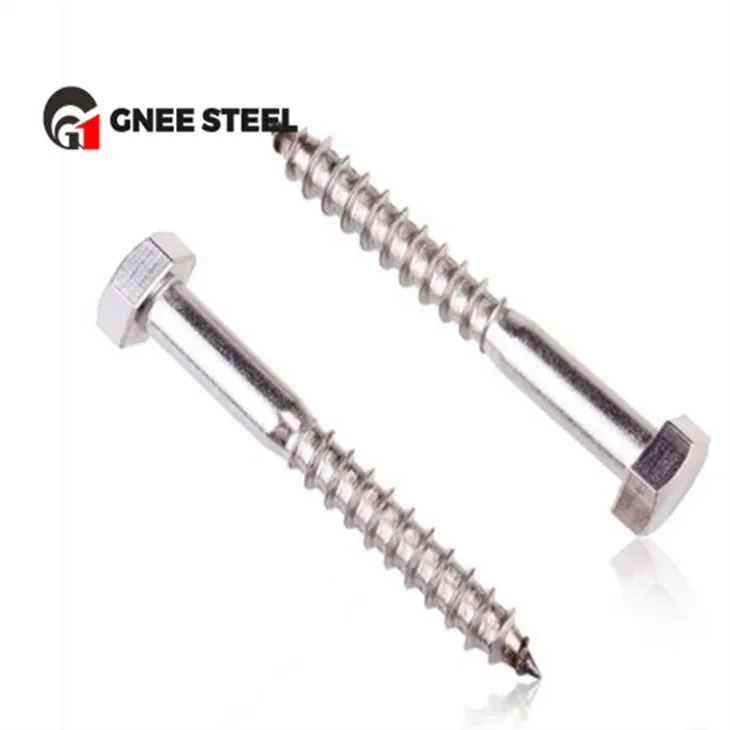

DIN571 hexagon head wood screw is a fastener designed for wood components. It has a hexagonal head shape and is specially used for wood. It can be directly screwed into wood components to achieve detachable connections.
The specifications of DIN571 carbon steel hexagon head wood screws include thread specifications from M4 to M20, nominal lengths between 16-200mm, and thread tolerances of 5g. There are various surface treatment methods, including galvanizing (silver-white zinc, blue-white zinc, color zinc), hot-dip galvanizing, blackening, etc., to meet the needs of different application environments. In addition, the packaging of these screws can be bulk, small box packaging plus outer box or pallet, and the head label can be customized according to customer needs.
Products Data
| Thread specification | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 | |
| d | ||||||||||
| ds | maximum value | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
| minimum | 3.52 | 4.52 | 5.52 | 6.42 | 7.42 | 9.42 | 11.3 | 15.3 | 19.3 | |
| d a | maximum value | 5 | 6 | 7.2 | 8.2 | 10.2 | 12.2 | 15.2 | 19.2 | 24.4 |
| k | Nominal | 2.8 | 3.5 | 4 | 5 | 5.5 | 7 | 8 | 10 | 13 |
| s | minimum | 6.64 | 7.64 | 9.64 | 11.57 | 12.57 | 16.57 | 18.48 | 23.16 | 29.16 |
Products display
DIN571 Wood Self Drilling Screw
Why Choose GNEE
GNEE has been in the import and export industry for more than 16 years, saving costs on transportation, products, etc. while controlling product quality.
Hexagon head bolts and socket head screws are also standard, with higher grades of 10.9 and 12.9 available.
Most importantly, GNEE provides different sizes and materials as per samples or drawings. In addition to DIN standard products, we also provide products in stock according to ISO, UNC, UNF, BSW (Whitworth), BSF, ASTM and ANSI standards.
If any question,please contact with us freely by E-mail or Telephone. sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q. Can I have a sample for it?
A: Yes, we welcome sample order to test and check quality.
Q. How to proceed an order for it?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q. What about the delivery time?
A: Normally the delivery time is around 10 days after payment.
