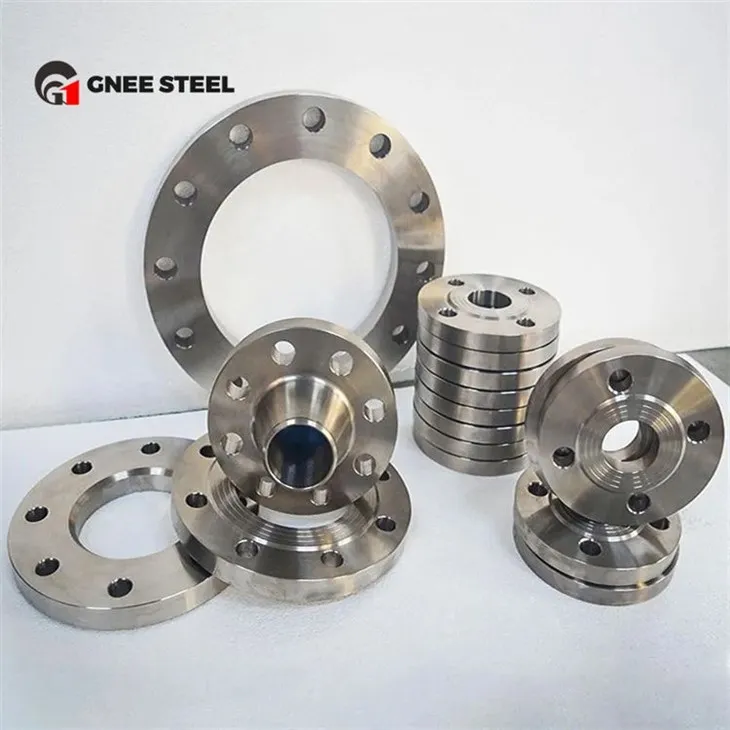

ASTM A182 F316 flange is a molybdenum-containing austenitic stainless steel flange designed for chloride ion corrosive and general corrosive environments. They are available in a wide range of flange sizes, from ½ inch to 64 inches, to meet a variety of application needs.
These ASME SA182 F316 flanges are available in different pressure-temperature ratings such as 150,300 to 2500, as well as different wall thickness and diameter specifications based on different pressure classes and specifications. The surface types of flanges include flat, convex and annular connection flanges, etc., which are suitable for various pipeline connection needs.
316 stainless steel pipe flanges are widely used in petroleum, petrochemical, oil and natural gas, and marine industrial pipelines. In addition to the common butt welding flanges and socket welding flanges, there are also special types such as sliding sleeve flanges and 316 stainless steel blind flanges. Especially blind flanges, their main function is to close the pipe, not to connect more pipes.
Stainless Steel 316 316Ti Flange Physical Properties
| Specific Heat (0-100°C) | 500 | J.kg-1.°K-1 |
| Thermal Conductivity | 14.6 | W.m -1.°K-1 |
| Thermal Expansion | 16.5 | mm/m/°C |
| Modulus Elasticity | 193 | GPa |
| Electrical Resistivity | 7.4 | μohm/cm |
| Density | 7.99 | g/cm3 |
Stainless Steel 316Ti 316 Flange Mechanical and Physical Properties
| Temper | Annealed | |
|---|---|---|
| Tensile Rm | 75 | ksi (min) |
| Tensile Rm | 515 | MPa (min) |
| R.p. 0.2% Yield | 30 | ksi (min) |
| R.p. 0.2% Yield | 205 | MPa (min) |
| Elongation (2" or 4D gl) | 35 | % (min) |
Butt welding flange
The standards for SS 316 flange mainly include ASME B16.47, 16.5, etc. Different types and standards of flanges are suitable for different application scenarios to meet specific needs. This material has excellent mechanical properties, with a minimum yield strength of 205MPa and a minimum tensile strength of 515MPa. In addition, there are special types of flanges, such as the SS 316 puddle flange, which are used in special situations.
ASTM A182 F316 Flange is a high quality, corrosion-resistant stainless steel flange suitable for use in a variety of industrial piping systems.
For more information about 316 SS Blind Flange or other types and prices, please feel free to contact us.
