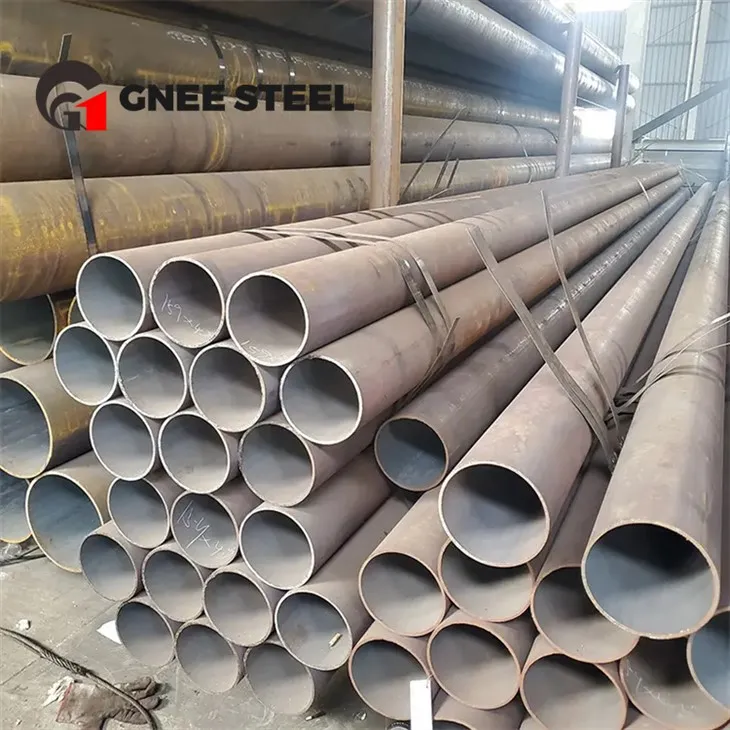

What material is the A335 P5 steel pipe made of?
A335/SA335 P5 is a seamless ferritic alloy steel pipe for high temperature applications. These pipelines are versatile and can be used to transport water, oil and natural gas. The key ingredients of chromium-molybdenum alloy P5 pipes are added chromium and molybdenum.
Hardness Test Notes: The hardness of A335 P5 boiler tubes must not exceed 250 HB/265 HV [25HRC].
What is SA 213 T5 tube?
ASTM A213 Gr T5 alloy steel seamless pipe, SA213 T5 boiler pipe
Sa213 Grade T5 pipe has similar strength to grades 304 and 316 stainless steel. The material's chromium and molybdenum content make it resistant to chloride and pitting corrosion. A213 T5 alloy steel pipe is also resistant to reducing acids and other generally corrosive media.
ASTM A213 T5 steel pipe belongs to ASTM A213 standard ferritic steel. It also has good heat resistance and corrosion resistance, and has good cold and hot processing properties. Widely used in industrial heat exchangers such as petrochemical industry.
P5/ T5 Pipe Chemical Composition:
|
Grades |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
|
P5/T5 |
≤ 0,15 |
≤ 0,50 |
0,30-0,60 |
≤ 0,025 |
≤ 0,025 |
4,0-6,0 |
0,45-0,65 |
seamless P5/ T5 Pipe Mechanical Properties At Room Temperature:
|
Material |
Yield strength ReH/Rp0,2 N/mm² min |
Tensile strength Rm N/mm² |
Elongation A % min |
|
P5/T5 |
205 |
415 |
20 |
Alloy Seamless Steel Pipe
GNEE offers alloy steel pipe specifications:
Name: ASTM A335 Gr. P5, ASTM A213 – T5
Size: 1/8"NB to 30"NB IN
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type: Seamless pipe, welded pipe, cold drawn pipe, structural pipe, hot processed pipe, extruded pipe, annealed and pickled pipe, ERW pipe, assembled pipe, longitudinal submerged arc welded pipe
Shape: round, square, rectangular, hydraulic, etc.
Length: single random, double random and cut length
GNEE mainly produces and deals in carbon steel pipes and alloy steel pipes. We usually have more than 5,000 tons of pipes in various sizes and standards. Our stock pipe sizes range from 20mm to 406mm OD and 2mm to 70mm wall thickness.GB, ASTM, JIS, DIN and other standards can be implemented.
GNEE Partners
Gnee product certificate
Gnee Company Team
Gnee Group participated in the NECC exhibition
Gnee Customer visit
