ASTM A213 T23 alloy steel seamless pipe is composed of carbon, manganese, phosphorus, sulfur, silicon, molybdenum and chromium.
ASTM A213 T23 alloy steel pipe produced by GNEE undergoes a series of processes such as converter steelmaking, die casting, initial rolling, pipe making, heat treatment, straightening, non-destructive testing, etc. to ensure the quality of the steel pipe. It meets ASTM A213 and A691 specifications, and the size meets ASTM, ASME and API standards. The outer diameter of T23 seamless pipe ranges from ½ inch to 5 inches, with different lengths and wall thicknesses.
A213 T23 steel pipe is suitable for equipment such as boilers, superheaters, heat exchangers, etc., especially in high temperature and high pressure environments, it can maintain high strength and stability.
Products Data
Chemical Composition % Of SA213 T23 Alloy Steel Tube
|
C, % |
Mn , % |
P, % |
S, % |
Si, % |
Cr, % |
Mo, % |
V, % |
Nb, % |
B, % |
N, % |
Al, % |
W, % |
|
0.04- 0.10 |
0.1- 0.6 |
0.03 max |
0.01 max |
0.5 max |
1.9- 2.6 |
0.05- 0.3 |
0.2- 0.3 |
0.02- 0.08 |
0.0005- 0.006 |
0.03 max |
0.03 max |
1.45- 1.75 |
Mechanical Properties Of A213 T23 Alloy Piping
|
Tensile Strength , MPa |
Yield Strength, MPa |
Elongation, % |
Hardness, HB |
|
510 min |
400 min |
20 min |
220 max |
SA213 T23 hot-rolled steel pipes Production Range
| Size Range | 1/8" –42" |
| Schedules | 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier |
Products display

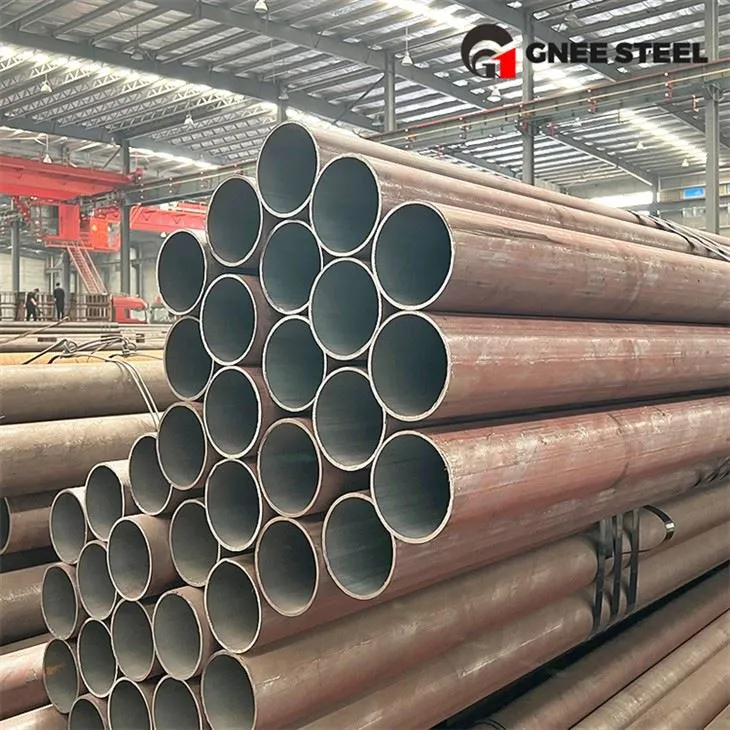

ASTM A213 T23 Alloy Steel Round pipes
Why Choose GNEE
GNEE is equipped with a full set of physical and chemical, mechanical properties testing, automatic testing instruments, hydraulic presses and various inspection and testing equipment, and has passed IS09001:2000 quality system certification IS014001 environmental management system certification, APL-5LPLS1, PLS2 certification and CE certification, especially we can meet the special needs of customers!
If you would like to know more about our company or our products, please feel free to contact us. sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q: Do you have quality control system?
A: Yes, we have our own quality control laboratory.Third party testing servicesare also available.
Q: What services do you provide?
A: Customized service for each customer, please feel free to contact us!
Q.What is your lead time?
A. Regular stock is usually 10 days. Depends on the products.
