GNEE produces 10CrMo5-5 steel pipes as seamless alloy steel pipes in accordance with EN 10216-2 and are reheated and supplied in fully annealed, isothermal annealed or normalized quenched and tempered conditions.
EN 10216-2 10CrMo Grade 5 -5 alloy steel seamless pipe has a typical chemical composition with the addition of 1.00-1.50 chromium and 0.45-0.65 molybdenum. The minimum tensile strength of the bearing is 410 Mpa and the maximum tensile strength is 560 Mpa. EN 10216-2 10CrMo5-5 grade pipe has a minimum yield strength of 275Mpa.
Chemical composition of EN 10216-2 10CrMo5-5 Seamless Steel Tubes
| Steel Grade | Steel Number | C | Si | Mn | P max | Smax |
| 10CrMo5-5 | 1.7338 | ≤ 0,15 | 0.50 to 1.00 | 0,30 to 0,60 | 0,025 | 0,010 |
| Cr | Mo | Ni | Al tot | Cu |
| 1,00 to 1,50 | 0,45 to 0,65 | ≤ 0,30 | ≤ 0,040 | ≤ 0,30 |
Mechanical properties of EN 10216-2 10CrMo5-5 Low Alloy Pipe
| Steel Grade | Upper yield strength or proof strength R eH or Rp 0,2 for Wall Thickness Tmin. | Tensile Strength Rm |
Elongation A min. % a |
|||||
| Steel Name | Steel Number | T ≤ 16 | 16 < T ≤ 40 | 40 < T ≤ 60 | 60 < T ≤ 100 | l | t | |
| MPa * | MPa * | MPa * | MPa * | MPa * | ||||
| 10CrMo5-5 | 1.7338 | 275 | 275 | 265 | - | 410 to 560 | 22 | 20 |
hot-rolled steel pipes EN 10216-2 10CrMo5-5
EN 10216-2 10CrMo5-5 Seamless steel tubes Details
Manufacture:Seamless process
Wall thickness(WT): 2.1mm--20 mm.
Outer diameter (OD): 21 mm--509mm
Length: 6M or specified length as required.
Ends: Plain End, Beveled End, Treaded
Payment Terms:T / T, LC
Delivery: 7-15 days after payment
Package: Bundles (hexagonal),Wooden Boxes,Crates (steel/wooden) or as required
Why choose GNEE 10CrMo5-5 alloy tube
EN 10216-2 10CrMo5-5 seamless pipes can be made by fully annealed or isothermal annealing conditions. Normalizing and tempering conditions are also available. Available in various sizes, standards, specifications and pressure ratings. Sizes range from 1/2NB to 36NB. Wall thickness deviation depends on cold rolling or cold rolling method.
If you are looking for 10CrMo5-5 seamless pipe, please contact us in time to get a quote!sales@gneetube.com

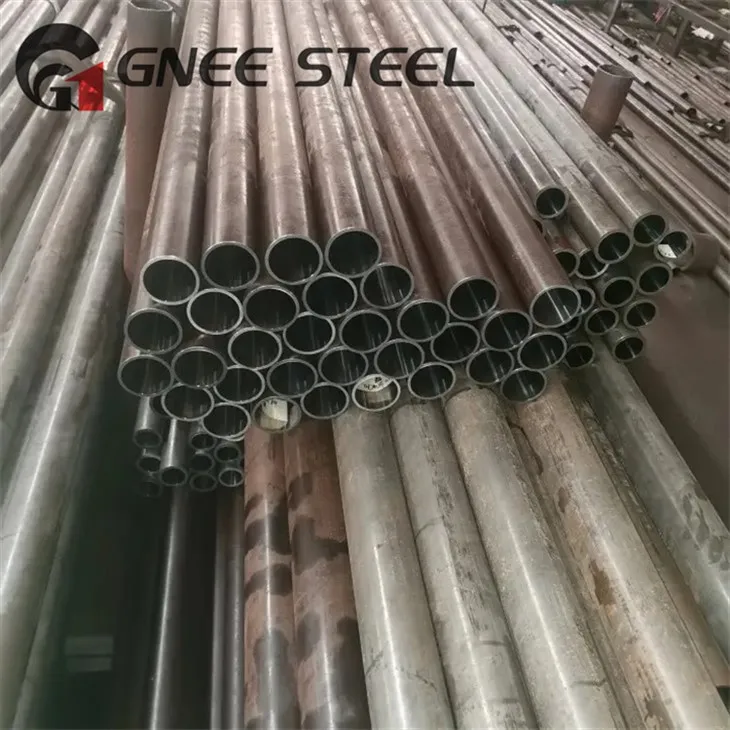

Factory environment of 10CrMo5-5 steel alloy pipe
FAQ
Q.Is hot rolled pipe seamless?
A.Hot-rolled pipes are pipe fittings produced through hot-rolling processes and are common mechanical structural parts.
Q.What services do you provide?
A.Customized service for each customer, please feel free to contact us!
Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
