API 5CT is a pipe specification for casing or tubing in industrial gas pipelines and tube wells. There are different levels of specifications such as PSL1, 2, and 3.
API 5CT tubing varies in diameter, wall thickness, and length. The outer diameter ranges from 6mm to 219mm, the wall thickness ranges from 1mm to 30mm, and the length ranges up to 12000mm.
API 5CT casing has different steel grades, including J55, K55, N80, L80, and P110, etc.
API 5CT pipe specifications include short round threads, non-upset tubing, integral joint tubing, externally upset tubing, extreme pipe casing, etc.
Contact us for price: sales@gneetube.com
Chemical Composition of API 5CT pipe
|
Grade |
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
Cr≤ |
Ni≤ |
Cu≤ |
Mo≤ |
V≤ |
Als≤ |
|
API 5CT J55 |
0.34-0.39 |
0.20-0.35 |
1.25-1.50 |
0.020 |
0.015 |
0.15 |
0.20 |
0.20 |
/ |
/ |
0.020 |
|
API 5CT K55 |
0.34-0.39 |
0.20-0.35 |
1.25-1.50 |
0.020 |
0.015 |
0.15 |
0.20 |
0.20 |
/ |
/ |
0.020 |
|
API 5CT L80 |
0.15-0.22 |
1.00 |
0.25-1.00 |
0.020 |
0.010 |
12.0-14.0 |
0.20 |
0.20 |
/ |
/ |
0.020 |
|
API 5CT J P110 |
0.26-035 |
0.17-0.37 |
0.40-0.70 |
0.020 |
0.010 |
0.80-1.10 |
0.20 |
0.20 |
0.15-0.25 |
0.08 |
0.020 |
Mechanical Properties of API 5CT Casing
|
Steel Grade |
Yield Strength (Mpa) |
Tensile Strength (Mpa) |
|
API 5CT J55 |
379-552 |
≥517 |
|
API 5CT K55 |
≥655 |
≥517 |
|
API 5CT N80 |
552-758 |
≥689 |
|
API 5CT L80 |
552-655 |
≥655 |
|
API 5CT P110 |
758-965 |
≥862 |

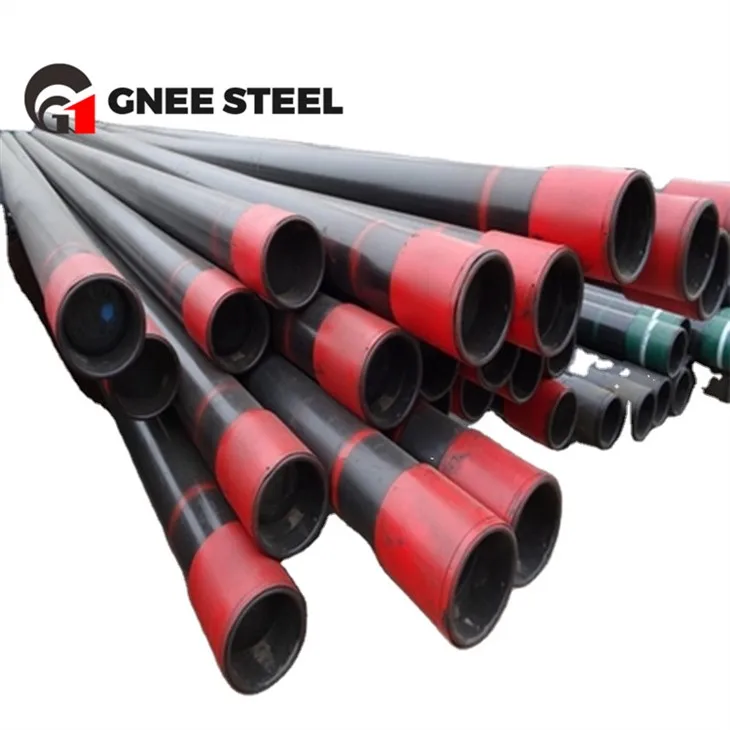

Api 5ct Casing Pipe
Reasons to choose GNEE API 5CT oil pipe
GNEE has an advanced production line for oil-specific pipes that integrates domestic and foreign advanced CNC thread lathes, hydraulic presses, inkjet printing equipment, etc., and has passed ISO9001:2000 international quality management system certification and American Petroleum Institute API certification with reliable quality and trustworthy products.
The company mainly produces and sells oil pipes, casing, couplings, special oil pipes and steel pipe products of various materials.
Gnee Customer visit
Gnee Factory environment
Gnee Packaging and shipping
FAQ
Q. Can you arrange delivery for us?
A. Yes, we have appointed sea and railway freight forwarders, we get the best price and earlier shipment and professional service.
Q. Can we visit your factory?
A. Warmly welcome, we will pick you up once we have your schedule.
Q. How can I get a quotation from you?
A. You can leave us message, and we will reply every message in time. Or we may talk on line.
Hot Tags: API 5CT Casing and Tubing, China API 5CT Casing and Tubing manufacturers, suppliers, factory
