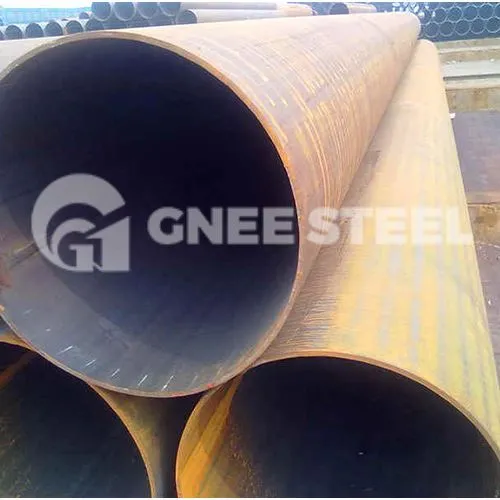

A53 GRB ERW BLACK STEEL PIPE

A53 GRB ERW BLACK STEEL PIPE

Standard: ASTM A53 / ASME SA-53
Grade & Type: Grade B, Type E (ERW)
Seam: Longitudinal ERW weld
Finish: Black (bare or painted)
Ends: Plain or bevelled
Document: EN 10204 3.1
Send Inquiry
Chat Now
Description

A53 GR.B ERW black steel pipe is carbon steel pipe ordered to ASTM A53 / ASME SA-53 Grade B in the Type E (electric-resistance-welded) form, finished black (uncoated carbon steel, or with a thin shop-applied black paint / lacquer film for transit protection). It is a general-purpose welded pipe with a longitudinal seam, supplied with plain or bevelled ends for welding or mechanical joining. This page covers the ERW, black, un-threaded form of A53 Grade B. It is not the same as hot-dip galvanized A53 (zinc-coated, a different finish), not the threaded form (covered on the threaded A53 product page), and not A53 Type S (seamless) - each of those is addressed on a separate page.



Why ERW and black: Type E ERW gives a continuous longitudinal weld at lower cost than seamless, which is why it is the dominant commercial form of A53 Grade B for general service. The plain black finish keeps the pipe economical for indoor, buried or painted-over runs where a metallic coating is not required; where the design needs corrosion resistance the galvanized finish or a field coating is specified instead. For corrosive or cyclic duty where a longitudinal seam is undesirable, specify Type S (seamless).



Product identification and delivery state

Table 1. A53 Grade B Type E ERW black pipe - identification and supply options
Item Specification / option
Specification ASTM A53 / ASME SA-53
Grade Grade B (Grade A offered where easier bending or coiling is required)
Type Type E - electric-resistance-welded (longitudinal seam); Type S seamless and Type F furnace-welded are separate forms
Nominal size NPS 1/2 through NPS 24 typical for ERW; SCH 40 / 80 routine
Wall STD / SCH 40, SCH 80; SCH 10, 160, XS, XXS on request
Length Single random (approx. 5–7 m), double random (approx. 11–13 m), or fixed lengths
Finish Black - bare (mill surface) or black-painted; hot-dip galvanized offered as a separate finish
Ends Plain or bevelled (for welding); threaded ends on a separate request
Certificate EN 10204 3.1; 3.2 with TÜV / SGS / BV / LR on request; ISO 9001 and product ISO certificates on file



Grade B chemistry (Type E and Type S)

Table 2. ASTM A53 chemical composition limits, weight percent (max unless noted)
Element Grade A Grade B
Carbon (C) 0.25 0.30
Manganese (Mn) 0.95 1.20
Phosphorus (P) 0.05 0.05
Sulfur (S) 0.045 0.045
Copper (Cu)* 0.40 0.40
Nickel (Ni)* 0.40 0.40
Chromium (Cr)* 0.40 0.40
Molybdenum (Mo)* 0.15 0.15
Vanadium (V)* 0.08 0.08
Cu + Ni + Cr + Mo + V, total shall not exceed 1.00%

* Required only when a specific element is specified for corrosion resistance or other properties.



Grade B mechanical properties

Table 3. ASTM A53 minimum room-temperature mechanical properties
Grade Tensile strength, min Yield strength, min Elongation
Grade A 330 MPa (48 ksi) 205 MPa (30 ksi) per A53 formula
Grade B 415 MPa (60 ksi) 240 MPa (35 ksi) per A53 formula (typically 25–30% for standard wall)

ERW manufacturing and the longitudinal weld seam

Table 4. A53 Type E ERW pipe - how the weld is made and controlled
Item Requirement / option
Forming Flat skelp / strip cold-formed into a round; edges brought together for welding
Welding Electric resistance (or induction) heating and pressure; no filler metal; continuous longitudinal seam
Seam trimming Weld bead typically trimmed flush after welding
Heat treatment As-rolled, normalized or heat-treated per the order and grade; stress relief only when specified
Seam identity The longitudinal weld is the defining feature; weld-quality tests differ from seamless-body tests
Fabrication note Seam location should be considered during bending, forming and field welding



Dimensions and weight (Schedule 40)

Table 5. Common Schedule 40 (Standard Weight) sizes for A53 Grade B black pipe - theoretical mass per unit length
NPS OD (mm) Wall (mm) Mass (kg/m)
NPS 1/2 21.3 2.77 1.27
NPS 3/4 26.7 2.87 1.69
NPS 1 33.4 3.38 2.50
NPS 1-1/4 42.2 3.56 3.39
NPS 1-1/2 48.3 3.68 4.05
NPS 2 60.3 3.91 5.44
NPS 2-1/2 73.0 5.16 8.63
NPS 3 88.9 5.49 11.29
NPS 4 114.3 6.02 16.07
NPS 5 141.3 6.55 21.77
NPS 6 168.3 7.11 28.26
NPS 8 219.1 8.18 42.55

Theoretical mass uses W = 0.0246615 × (OD − t) × t kg/m. Actual weight depends on the ordered length basis and any coating. Other schedules (SCH 10, 80, 160, XS, XXS) and larger NPS up to NPS 24 are available on request.



ERW (Type E) versus seamless (Type S)

Table 6. Choosing between A53 Grade B Type E (ERW) and Type S (seamless)
Aspect Type E - ERW (this page) Type S - seamless
Seam Longitudinal electric-resistance weld No longitudinal seam
Cost Lower; dominant commercial form Higher
Weld inspection Seam NDE (E309 / E213) or hydrostatic Full-pipe hydrostatic / NDE; no seam to inspect
Best for General low-to-moderate pressure, welded or mechanical-jointed service Corrosive or cyclic duty where a seam is undesirable
Availability Wide NPS range, routine SCH 40 / 80 Common at small-to-mid NPS; also larger sizes

Both Type E and Type S are Grade B and share the same chemistry and strength limits in Table 2 and Table 3. The choice is driven by the seam: where a longitudinal weld is acceptable, ERW is the economical default; where it is not, specify seamless. The welded form is detailed on the A53 welded-pipe product page, and the seamless form on the A53 Grade B seamless product page.



Black finish - bare versus black-painted supply

\"Black\" A53 simply means carbon steel with no metallic coating. It is supplied either bare (mill surface, with mill scale or a cleaned surface) or with a thin black paint or lacquer film applied in the shop to slow rust during storage and shipping; that film is a handling and transit protection, not a service corrosion coating. Where long-term outdoor or process corrosion resistance is the driver, the hot-dip galvanized finish (a different order line, with a lower temperature ceiling of roughly 200 °C / 400 °F) or a field-applied coating is specified instead. For welded pipe the paint, if applied, must not foul the bevel or the make-up surface.



Tolerances, testing and documents

Table 7. A53 Grade B Type E - acceptance, test and document basis
Item Requirement
Wall thickness tolerance -12.5% (nominal); minimum wall not below 87.5% of nominal
Outside diameter and length per ASTM A53 / ASTM A530 (e.g. ±0.5% for NPS ≤ 2, ±0.75% for NPS 2–8)
Proof test Hydrostatic each length: P = 2St/D, S = 60% SMYS = 144 MPa for Grade B; or weld-seam NDE (E309 / E213) where the PO states it as the alternative
Body tests Flattening / flaring and tensile as applicable
Mill certificate EN 10204 3.1; 3.2 with TÜV / SGS / BV / LR on request
Marking Manufacturer, specification and type, grade, size, schedule or wall, heat number, and test method, per ASTM A700



Pressure and temperature limits

As a material, black A53 Grade B is practical up to roughly 430 °C (800 °F) for general service; however this is an engineering-practice value, not a clause of ASTM A53, and the actual design limit is set by the applicable code (for example ASME B31.1 or B31.3), the fluid, the joint and the corrosion environment. The longitudinal ERW seam and its heat-affected zone are the regions to watch during bending, forming and field welding. For continuous high-temperature steam mains, high-pressure lines or sour service, ASTM A106 Grade B seamless or an alloy pipe is the usual choice rather than ERW black A53. Confirm the design pressure, temperature and fluid with the applicable code edition and your inspector before purchase.



Typical applications

Plumbing, water and heating distribution. General low-to-moderate pressure water and heating lines, including buried mains where a field coating is applied.

Compressed-air and plant utility lines. Workshop and plant air-distribution pipe assembled by welding.

Structural, scaffolding, fencing and handrail. General fabrication where welded black pipe is economical.

Piling and general fabrication. ERW black pipe is widely used as a structural and fabricated member.

Fire-protection mains. Where the applicable NFPA edition and authority having jurisdiction permit black steel, ERW A53 is a common fire-main material (the fire-fighting finish and joint options are covered on the fire-fighting product page).

For duties where a longitudinal weld is undesirable, switch to A53 Type S (seamless) or ASTM A106 Grade B seamless; for corrosion resistance, specify galvanized A53 or a field coating.



Ordering, marking and packing

A complete order line reads: ASTM A53 / ASME SA-53, Grade B, Type E (ERW), NPS and schedule (or stated OD and wall), length basis (SRL, DRL or fixed), end condition (plain or bevelled; threaded on a separate request), black finish (bare or black-painted, state if paint is specified), quantity, and EN 10204 3.1 (3.2 or third-party inspection on request). Also state whether weld-seam NDE (E309 / E213) or hydrostatic testing is the required proof test, and any heat-treatment requirement so it can be confirmed by the test report.

Pipe is marked continuously with the manufacturer's mark, specification and type, grade, size, schedule or wall, heat number, and the method of test, following ASTM A700. Export packing uses bundled, end-capped and seaworthy protection; bevelled ends are protected so the weld preparation stays clean for field make-up.



test and inspection

A53 GRB Black Steel Pipe Test
A53 GRB erw steel pipe test
A53 GRB welded pipe dimension inspection




Packaging and shipping

A53 black steel pipe packaging and shipping
A53 erw steel pipe packaging and shipping

Send your bill of quantities - standard, grade (B), type (E, ERW), NPS and schedule or stated OD and wall, end condition (plain or bevelled), lengths, black finish (bare or painted), quantity and required certificate - and we will return a quote with the test plan and lead time. Tell us whether weld-seam NDE (E309 / E213) or hydrostatic testing is required, and any heat-treatment requirement, so the order can be confirmed against the mill process.



FAQ

What does A53 GR.B ERW black steel pipe mean?

The term names three things at once: the specification (ASTM A53 / ASME SA-53), the grade (Grade B), and the form (Type E, electric-resistance-welded) with a plain black finish. "ERW" means the pipe has a longitudinal electric-resistance-welded seam rather than being seamless, and "black" means carbon steel with no metallic coating (mill surface, or with a thin shop-applied black paint or lacquer for transit protection). It is a general-purpose welded carbon-steel pipe, distinct from galvanized A53 (zinc-coated), from threaded A53 (cut ends), and from A53 Type S (seamless).



How is ASTM A53 Type E ERW pipe manufactured, and what is the longitudinal weld seam?

ERW (Type E) pipe starts as a flat skelp or strip that is cold-formed into a round shape; the edges are brought together and joined by electric resistance (or induction) heating and pressure, without filler metal, forming a continuous longitudinal seam. After welding the seam is typically trimmed and the pipe may be heat-treated, normalized or supplied as-rolled depending on the order and grade. Grade B Type E is produced across the common NPS and wall range. Because the seam is the defining feature, weld quality is controlled by the weld-specific tests in A53 rather than by the seamless-body tests used for Type S.



What weld-seam testing and inspection apply to A53 Type E ERW pipe?

A53 Type E pipe is proven by either a hydrostatic test on each length or an agreed non-destructive examination of the weld. The common weld NDE routes are eddy-current examination (ASTM E309) or ultrasonic examination (ASTM E213) of the longitudinal seam; hydrostatic testing uses P = 2St/D with S taken as 60% of SMYS (144 MPa for Grade B). The body also receives the applicable flattening / flaring and tensile tests. Weld-only NDE is accepted where the purchase order states it as a hydrostatic alternative; otherwise the default proof test is hydrostatic. Mill documents are issued as EN 10204 3.1, with 3.2 and third-party (TÜV / SGS / BV / LR) inspection on request.



What NPS sizes and wall schedules are stocked for A53 GR.B ERW black pipe?

ERW black A53 Grade B is produced across the normal NPS 1/2 through NPS 24 range in the common walls; Schedule 40 (Standard Weight) and Schedule 80 are the routine commercial walls, with SCH 10, 160 and XS / XXS available on request. The Schedule 40 mass values for the small-to-mid NPS sizes are listed in the dimensions table. State the NPS (or exact OD), wall / schedule, length basis (SRL, DRL or fixed) and end condition on the order; plain or bevelled ends are normal for welded pipe, while threaded ends are covered on the threaded A53 product page.



What are the typical applications of A53 GR.B ERW black steel pipe?

Typical uses are general low-to-moderate pressure services assembled by welding or mechanical joining: plumbing and water distribution, heating and low-pressure steam, compressed-air and plant utility lines, structural and handrail work, scaffolding and fencing, piling and general fabrication, and fire-protection mains where the applicable NFPA edition and authority permit black steel. It is a cost-effective welded alternative to seamless A53 / A106 where a longitudinal weld is acceptable. It is not intended for the high-temperature, high-pressure or sour-service duties that call for seamless A106 Grade B or alloy pipe, and it is not a heat-exchanger tube.



Does A53 GR.B ERW black pipe require stress relief or heat treatment after welding?

ASTM A53 does not mandate a post-weld stress-relief heat treatment for Type E ERW pipe as a standard requirement; Grade B ERW is normally supplied as-rolled, normalized or heat-treated per the mill's process and the order. Where a project specification calls for stress relief, normalizing or a defined heat-treatment cycle, that must be written into the purchase order and confirmed by the test report. The temperature ceiling of the base steel is unchanged by the seam, but the longitudinal weld and its heat-affected zone are the regions to watch in bending, forming and field welding, so seam location should be considered during fabrication.



What should a purchase order include for A53 GR.B ERW black steel pipe?

A complete order line reads: ASTM A53 / ASME SA-53, Grade B, Type E (ERW), NPS and schedule (or stated OD and wall), length basis (SRL, DRL or fixed), end condition (plain or bevelled; threaded on a separate request), black finish (bare or black-painted, state if paint is specified), quantity, and the required certificate (EN 10204 3.1; 3.2 or third-party inspection on request). Also state whether weld-seam NDE (E309 / E213) or hydrostatic testing is the required proof test, and any heat-treatment requirement. A53 Grade B is frequently supplied with combined certification together with ASTM A106 Grade B and API 5L Grade B where the chemistry and strength overlap.
