What ASTM A618/A618M Covers

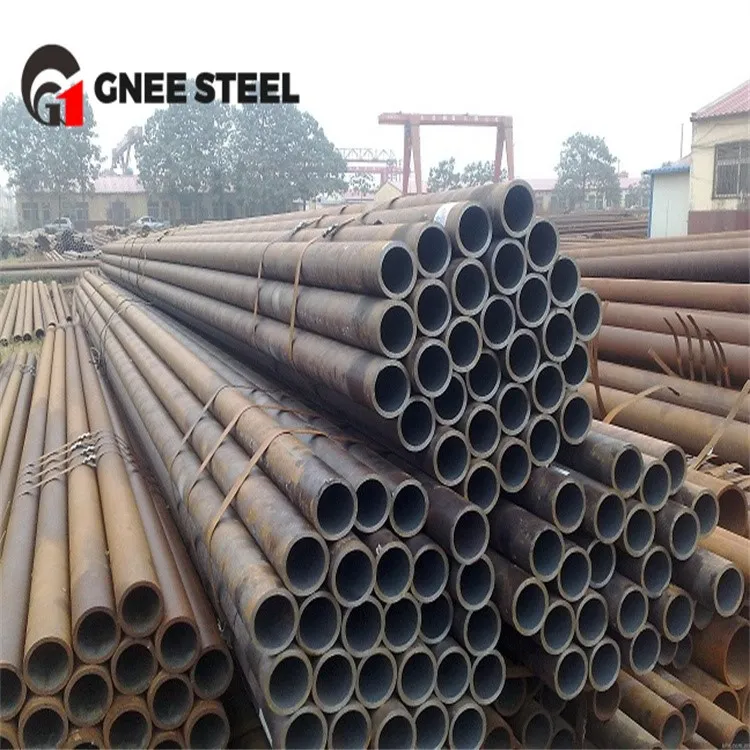

ASTM A618/A618M-21 is a standard issued by ASTM, the American Society for Testing and Materials, and is classified under the 23.040.10 iron and steel pipe category of the International Standard Classification. It sets out the requirements and specifications for high-strength structural pipe, and it covers four grades: Ia, Ib, II and III. Each grade has its own heat-analysis and product-analysis limits, while a single tensile table is applied with different values according to grade and wall thickness.
Grades Ia and Ib are copper-bearing high-strength low-alloy grades, Grade II is the most heavily alloyed of the group, and Grade III completes the range with its own strength and wall thickness relationship. Because the grade designation alone does not describe the finished tube, the chemical and tensile tables must be read together before a section is ordered.
Chemical Requirements Across Grades Ia, Ib, II and III
Limits are given as heat analysis and product analysis for each grade. Product analysis allowances are wider than heat analysis limits, which is normal practice because a finished tube samples a different point of the cast than the ladle does.
| Element | Grade Ia (heat / product) | Grade Ib (heat / product) | Grade II (heat / product) | Grade III (heat / product) |
|---|---|---|---|---|
| Carbon, max % | 0.15 / 0.18 | 0.20 / not specified | 0.22 / 0.26 | 0.23 / 0.27 |
| Manganese, % | 1.00 max / 1.04 max | 1.35 max / 1.40 max | 0.85–1.25 / 1.30 max | 1.35 max / 1.40 max |
| Phosphorus, max % | separate residual limits | separate residual limits | 0.025 / 0.035 | 0.025 / 0.035 |
| Sulfur, max % | separate residual limits | separate residual limits | 0.025 / 0.035 | 0.025 / 0.035 |
| Copper, min % | 0.20 / 0.18 | 0.20 / 0.18 | 0.20 / 0.18 | not specified |
| Vanadium, min % | not specified | not specified | 0.02 / 0.01 | 0.02 / 0.01 |
Three qualifying rules accompany this table. First, for each reduction of 0.01 % carbon below the specified maximum, an increase of 0.05 % manganese above the specified maximum is permitted, up to 1.45 % for heat analysis and up to 1.50 % for product analysis. This carbon-for-manganese trade lets a steelmaker hold strength while improving weldability. Second, if chromium and silicon contents are each 0.50 % minimum, the copper minimums do not apply, because those elements already provide the atmospheric corrosion resistance that copper is added for. Third, for Grade III, columbium may be used within limits of 0.005 % minimum in heat analysis and 0.004 % minimum in product analysis.
Tensile Requirements and Wall Thickness Effects
| Requirement | Grades Ia, Ib and II, walls 19.0 mm (3/4 in.) and under | Grades Ia, Ib and II, walls over 19.0 to 38.0 mm (3/4 to 1-1/2 in.) | Grade III |
|---|---|---|---|
| Tensile strength, min | 70 ksi [485 MPa] | 67 ksi [460 MPa] | 65 ksi [450 MPa] |
| Yield strength, min | 50 ksi [345 MPa] | 46 ksi [315 MPa] | 50 ksi [345 MPa] |
| Elongation in 2 in. or 50 mm, min % | 22 | 22 | 20 |
| Elongation in 8 in. or 200 mm, min % | 19 | 18 | 18 |
Wall thickness is not a detail in this specification. As wall increases from 19.0 mm to 38.0 mm, the required minimums for Grades Ia, Ib and II step down from 70 ksi [485 MPa] to 67 ksi [460 MPa] in tension and from 50 ksi [345 MPa] to 46 ksi [315 MPa] in yield, because thicker sections cool more slowly and are harder to bring to the same strength level. Grade III keeps its 50 ksi [345 MPa] minimum yield at both wall ranges while its tensile minimum is set at 65 ksi [450 MPa]. One further rule applies to Grade II: when the material is normalized, the minimum yield strength and minimum tensile strength required are each reduced by 5 ksi [35 MPa].
Applications in Bridges, Buildings and Transmission Lines
The combination of high strength, good welding performance and corrosion resistance makes ASTM A618 pipe suitable for demanding structural work. Typical fields include bridges, buildings, highways and oil and gas transmission, wherever the tube must carry load and resist the environment at the same time.
Bridge and highway structures: girders, bracing and sign or gantry supports where a high strength-to-weight ratio reduces dead load.
Building frames: columns, trusses and braced bays that need predictable yield strength and reliable welded connections.
Transmission and industrial plant: supports and structural members exposed to weather, where copper-bearing Grades Ia and Ib help resist atmospheric corrosion.
Heavy machinery and transport equipment: chassis and equipment frames that see repeated dynamic loading.
Selection practice: match the grade to the wall thickness first, then check the chemistry route, and confirm that normalizing assumptions in the design match the delivery condition of the tube.
Frequently Asked Questions
Q: How many grades does ASTM A618 cover?
Four: Grades Ia, Ib, II and III. Each has its own chemical limits, and the tensile requirements differ by grade and by wall thickness.
Q: Why does the required tensile strength fall as the wall gets thicker?
Because heavier sections cool more slowly during processing and are more difficult to bring to the same strength level, the minimum values for Grades Ia, Ib and II step down from 70 ksi [485 MPa] for walls of 19.0 mm and under to 67 ksi [460 MPa] for walls over 19.0 mm up to 38.0 mm.
Q: What happens to Grade II when it is normalized?
The minimum yield strength and minimum tensile strength required are each reduced by 5 ksi [35 MPa] for normalized material.
Q: Can manganese exceed the table limit?
Yes. For each 0.01 % reduction of carbon below the specified maximum, 0.05 % manganese above the maximum is permitted, up to 1.45 % for heat analysis and 1.50 % for product analysis.
Q: When do the copper minimums not apply?
When chromium and silicon contents are each 0.50 % minimum, the copper minimum requirement is waived because those elements already contribute the corrosion resistance that copper would provide.
Q: Why are Grades Ia and Ib described as copper-bearing?
Both grades carry a copper minimum of 0.20 % in heat analysis and 0.18 % in product analysis, which classifies them as copper-bearing high-strength low-alloy grades rather than plain structural grades.
