What is ASTM A179 Low-carbon pipe for economizers and general service

ASTM A179 cold-drawn seamless low-carbon steel tubing is a precision material specifically engineered for high-efficiency heat exchange equipment, such as economizers, condensers, and heat exchangers. Its carbon content is strictly controlled within the range of 0.06% to 0.18%, ensuring exceptional thermal conductivity and excellent formability. Manufactured using a cold-drawing process, this product features extremely high dimensional accuracy-with outer diameter tolerances controllable to within ±0.1 mm-and a superior surface finish.

It possesses a tensile strength of no less than 325 MPa, a yield strength of no less than 180 MPa, and a hardness limited to a maximum of 72 HRB. Following a final annealing treatment performed at temperatures exceeding 1200°F (650°C), the material is capable of withstanding the frequent thermal cycling encountered by economizers operating within high-temperature flue gas environments; furthermore, it readily accommodates complex fabrication processes such as bending, flaring, and crimping.

Consequently, it represents an ideal low-carbon steel solution for enhancing the waste heat recovery efficiency and long-term operational reliability of boiler systems.

Fully Compliant with ASME SA179 Standards. Every Order Includes 100% Hydrostatic and Flattening Test Reports – Contact Our Sales Team for Verification.

Chemical Composition OF ASTM A179 Pipe

Mechanical Properties Of ASTM A179 Pipe

Size Specifications of Cold Drawn Seamless Carbon Steel Tube ASTM A179

A450/A450M

Inspection of ASTM A179 Low-carbon pipe for economizers and general service

Chemical Composition Analysis

This verifies the "Low-Carbon" status, which is essential for thermal conductivity and weldability.

Mechanical Property Testing

Ensures the pipe can withstand the internal pressures and structural loads of an economizer.

Technological & Ductility Tests

These are the most critical tests for heat exchanger tubes, as they are often bent into "U" shapes or expanded into tube sheets.

Flattening Test: A section of the pipe is flattened between two plates until it reaches a specific distance. No cracks or breaks should appear, ensuring the steel is not brittle.

Flaring Test: The end of the pipe is expanded using a tapered tool until the diameter increases by a specific percentage (usually 15-20%). This ensures the pipe can be "rolled" into tube sheets without splitting.

Flange Test: Similar to flaring, but the edge is turned 90 degrees to form a flange. (More common for specific condenser designs).

Dimensional & Visual Inspection

Since ASTM A179 is cold-drawn, it is held to much tighter tolerances than standard hot-rolled pipes.

Outer Diameter (OD): Inspected with micrometers; tolerances are strictly controlled (e.g., ±0.1mm to ±0.15mm for common sizes).

Wall Thickness (WT): Checked to ensure no "thin spots" that could lead to localized overheating or bursting.

Drift Test: Ensures the internal passage is clear and the pipe is perfectly round.

Visual Surface Check: Pipes must be free from scale, seams, laps, or deep scratches. A smooth surface is vital to prevent "fouling" (buildup of deposits) in the economizer.

Hydrostatic & Non-Destructive Testing (NDT)

Hydrostatic Test: Each pipe is filled with water and pressurized (per formula in ASTM A450) to ensure there are zero leaks in the seamless body.

Eddy Current Testing (ECT): Often used as an alternative or supplement to the hydro-test. It uses electromagnetic induction to detect tiny surface or sub-surface flaws.

Ultrasonic Testing (UT): Used for critical service to detect internal wall thinning or hidden inclusions.

Heat Treatment Verification

Final Annealing: ASTM A179 must be heat treated after the final cold-draw pass at a temperature of 1200°F (650°C) or higher.

Inspection: Verify the Mill Test Certificate (MTC) for the specific annealing temperature and cooling method to ensure the grain structure is stabilized for high-temperature service.

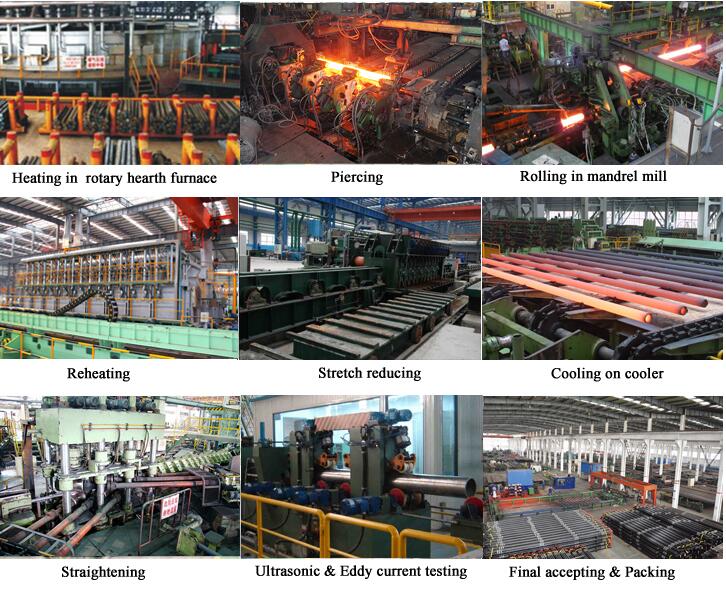

GNEE A179 boiler tube Factory

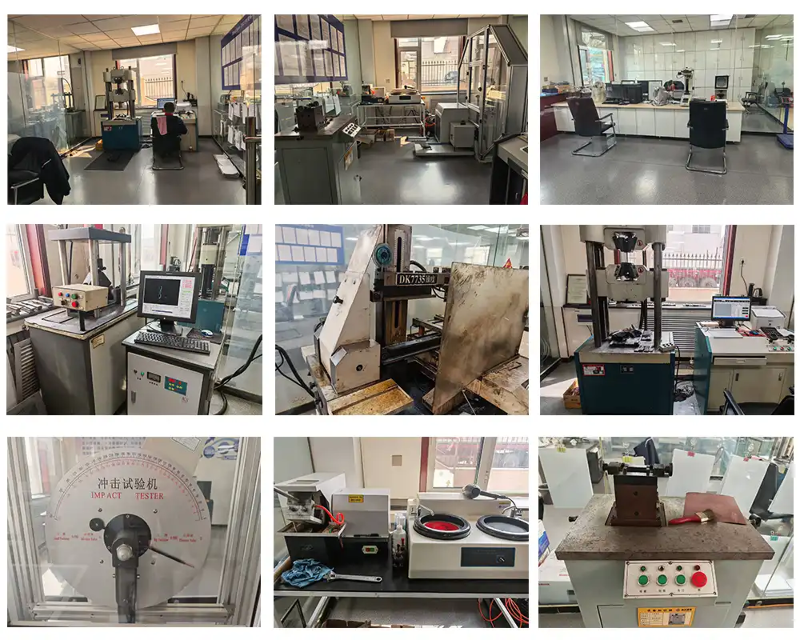

GNEE A179 Cold drawning pipe test equipments

GNEE A179 Seamless Pipe certificate

FAQ

What is ASTM A179 material?

ASTM A179 is a standard material specification for seamless, cold-drawn, low-carbon steel tubes.

Key features include:

Purpose: Specifically designed for heat transfer equipment like condensers, heat exchangers, and economizers.

Low Carbon Content: Contains 0.06% to 0.18% carbon, making it highly ductile and easy to bend or flare.

Manufacturing: Produced via cold-drawing, which results in very smooth surfaces and high dimensional accuracy.

Thermal Efficiency: Its low-carbon composition provides excellent thermal conductivity, allowing for efficient heat exchange.

What is the difference between A106 and A179?

The main difference between ASTM A106 and ASTM A179 is their purpose and manufacturing process:

Application:

A179: Specifically for heat transfer (tubes inside heat exchangers, condensers, and economizers).

A106: Specifically for fluid transportation (piping systems carrying high-temperature steam, water, or oil).

Manufacturing:

A179: Always cold-drawn, resulting in high dimensional precision and a very smooth surface.

A106: Usually hot-finished, focusing on strength rather than surface smoothness or thin walls.

Carbon Content & Ductility:

A179: Lower carbon (max 0.18%), making it softer and easier to bend or flare for tube sheets.

A106 (Grade B): Higher carbon (max 0.30%), making it stronger and better suited for high-pressure piping.

Is sa179 carbon steel or stainless steel?

SA179 is carbon steel (specifically low-carbon steel).

It is not stainless steel because it lacks the high chromium content (minimum 10.5%) required for corrosion resistance. Instead, it is designed for excellent thermal conductivity and ductility in heat exchangers.
