DIN 508 T-slot nuts are a German standard fastener, specially designed for use in T-slots, with a wide range of applications, especially in the field of mechanical industry. DIN 508 T-slot nuts are made of stainless steel (AISI 303 / AISI 316Ti) and carbon steel (8.8 grade). DIN 508 T-slot nuts have various surface treatments, including but not limited to white zinc plating, yellow zinc plating, black zinc plating, tin plating, nickel plating, copper plating, etc.
GNEE supplies DIN 508 T-slot nuts in a wide range of sizes and specifications, with thread specifications from M6 to M36 available to meet the needs of different applications.
Products Data
| Screw Thread | M4 | M5 | M6 | M8 | M10 | M12 | M16 | |
| d | ||||||||
| P | Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 |
| n | Nominal Size | 5 | 6 | 8 | 10 | 12 | 14 | 18 |
| max | 4.7 | 5.7 | 7.7 | 9.7 | 11.7 | 13.7 | 17.7 | |
| min | 4.5 | 5.5 | 7.5 | 9.5 | 11.4 | 13.4 | 17.4 | |
| s | max | 9 | 10 | 13 | 15 | 18 | 22 | 28 |
| min | 8.5 | 9.5 | 12.5 | 14.5 | 17.5 | 21.5 | 27.5 | |
| h | 6.5 | 8 | 10 | 12 | 14 | 16 | 20 | |
| k | max | 3 | 4 | 6 | 6 | 7 | 8 | 10 |
| min | 2.7 | 3.5 | 5.5 | 5.5 | 6.5 | 7.5 | 9.5 | |
Products display

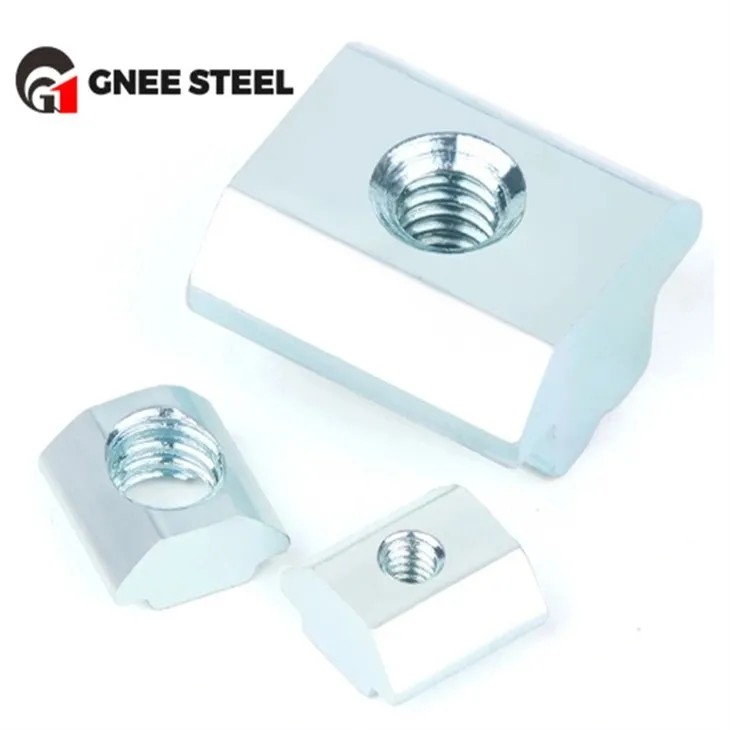

Nuts for T-slots DIN 508 enhanced
Why Choose GNEE
GNEE is an OEM fastener manufacturing, plating/finishing and industrial production company. With over 16 years of stainless steel fastener manufacturing experience, industry experience and state-of-the-art facilities. We can provide the most common stainless steel fasteners or specially designed fasteners.
The products are exported to more than 60 countries and regions including Russia, Canada, India, Brazil, and Southeast Asia.
If any question,please contact with us freely by E-mail or Telephone. sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q. How is your price?
A. High quality products, reasonable price. Please give me an inquiry and we will give you a quote immediately.
Q. How do you control quality?
A. We require the quality control department to inspect every production link of each batch of goods. After the goods are completed, we can provide you with MTC and factory certificate.
