DIN 7965 slotted thread inserts are self-tapping screw inserts that are widely used in multiple industries, including the automotive industry, rail vehicle industry, shipbuilding industry, household appliances, construction machinery, office machinery, electronic products, engineering plastics, modular furniture, aluminum die-casting, etc.
GNEE can provide a variety of materials such as stainless steel, carbon steel, and brass to meet the needs of different applications. Suitable for repairing damaged threads or as a new connection method, providing a convenient replacement option.
Products Data
| Technical Data & Availability | ||||
| Thread Diameter | Length (mm) | Socket A/F (mm) | Pilot Hole (mm) | Pitch (mm) |
| M4 | 10.0 | 4 | – | 0.70 |
| M5 | 10.0 | 5 | – | 0.80 |
| M6 | 13.0 | 6 | 8.5 to 8.7 | 1.00 |
| M8 | 13.0 | 8 | – | 1.25 |
| M8 | 20.0 | 8 | – | 1.25 |

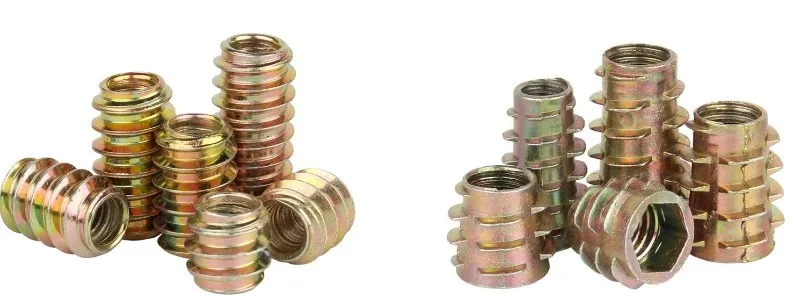

Products display
DIN 7965 Screwed Inserts (Screw Plugs)
When installing DIN 7965 slotted threaded inserts, the following points should be noted:
1. Pre-drilling: Depending on the processing material, it is necessary to refer to the drilling size specifications for pre-drilling. For materials with higher hardness, it is recommended to slightly increase the bottom hole within the drilling range.
2. Vertical installation: The slotted end of the screw sleeve is facing down and fully installed into the front end of the tool. It needs to contact the workpiece vertically. When installing (1-2 pitches), it is necessary to confirm that it is aligned with the bottom hole and must not be tilted. Once tilting is found, it should be stopped immediately and readjusted before use. After entering 1/3-1/2, it cannot be readjusted.
3. Assembly requirements: After assembly, the self-tapping screw should be at least 1mm below the surface of the part to ensure its effective operation and prevent damage caused by accidental contact.
Why Choose GNEE
GNEE is an OEM fastener manufacturing, plating/finishing and industrial production company. With over 16 years of stainless steel fastener manufacturing experience, industry experience and state-of-the-art facilities. We can provide the most common stainless steel fasteners or specially designed fasteners.
The products are exported to more than 60 countries and regions including Russia, Canada, India, Brazil, and Southeast Asia.
If any question,please contact with us freely by E-mail or Telephone. sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q. How is your price?
A. High quality products, reasonable price. Please give me an inquiry and we will give you a quote immediately.
Q. How do you control quality?
A. We require the quality control department to inspect every production link of each batch of goods. After the goods are completed, we can provide you with MTC and factory certificate.
