ASME SA213 T23 boiler tube belongs to the 2-1/4Cr-1.6W-Mo series steel, which is a low-carbon micro-alloyed controlled rolled steel and fine-grained steel. It has a low carbon content and strictly controls the sulfur and phosphorus content to reduce the tendency to form cracks. The high-temperature creep strength and allowable stress of the material are improved.
ASME SA213 T23 seamless boiler tube is mainly used to manufacture superheaters, reheaters and water-cooled walls of large power station boilers. It is the best choice material when the main steam temperature is below 620℃.
Products Data
Mechanical properties of A213 T23 Seamless Steel Tubes
| Grade | Tensile strength Ksi (MPa) | Yield strength Ksi (MPa) | Elongation (%) | Hardness (HB) |
| SA213 T23 | ≥74(510) | ≥58(400) | ≥20 | ≥220 |
Heat treatment of SA213 T23 boiler pipe
| Grade | UNS Number |
Heat Treat Type | Austenitizing/ Solutioning Temperature, min or range ºF [ºC] |
Subcritical Annealing or Tempering Temperature, min or range ºF [ºC] |
| T23 | K40712 | normalize and temper | 1900–1975[1040–1080] | 1350–1470 [730–800] |
note：Regarding the heat treatment of ASME SA213 T23 alloy boiler tubes, although early studies showed that heat treatment is not required after welding when the wall thickness is less than 10mm,
later studies and practices have found that proper heat treatment after welding can significantly improve the impact toughness of the weld and heat treatment area, thereby improving the performance of the entire pipeline system.
Manufacturing: Seamless process
Common specifications: 57mm*4.5mm, 60mm*9mm, 63mm*4mm, etc.
Length: 6M or specified length as needed.
Payment terms: T/T, LC
Delivery: 7-15 days after payment
Products display

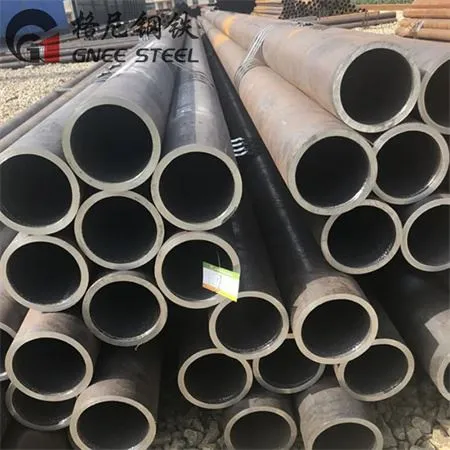

ASTM A213 Grade T23 Tubing
Why Choose GNEE
GNEE has established ISO9001:200S quality management system and implemented total quality management. Now, we sell 160,000 tons of steel pipes per year, including high, medium and low pressure boiler, ship, liquid product transportation pipes. We provide high quality products to customers in different industries.
If you would like to know more about our company or our products, please feel free to contact us. sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q: Do you have quality control system?
A: Yes, we have our own quality control laboratory.Third party testing servicesare also available.
Q: What services do you provide?
A: Customized service for each customer, please feel free to contact us!
Q.What is your lead time?
A. Regular stock is usually 10 days. Depends on the products.
