ASTM A210 is the standard covers seamless medium-carbon steel boiler and superheater tubes. Seamless medium carbon steel pipe for boiler tube and boiler flue pipe, including a minimum wall thickness of the security side, the dome and the support tube and superheater tubes.
The main production grades of ASTM A210 high-pressure alloy pipes include A210A1 and A210C.
In addition, ASTM A210 alloy pipes are also specially treated, such as passivation and coating, to further enhance their corrosion resistance, thereby extending their service life and reliability.

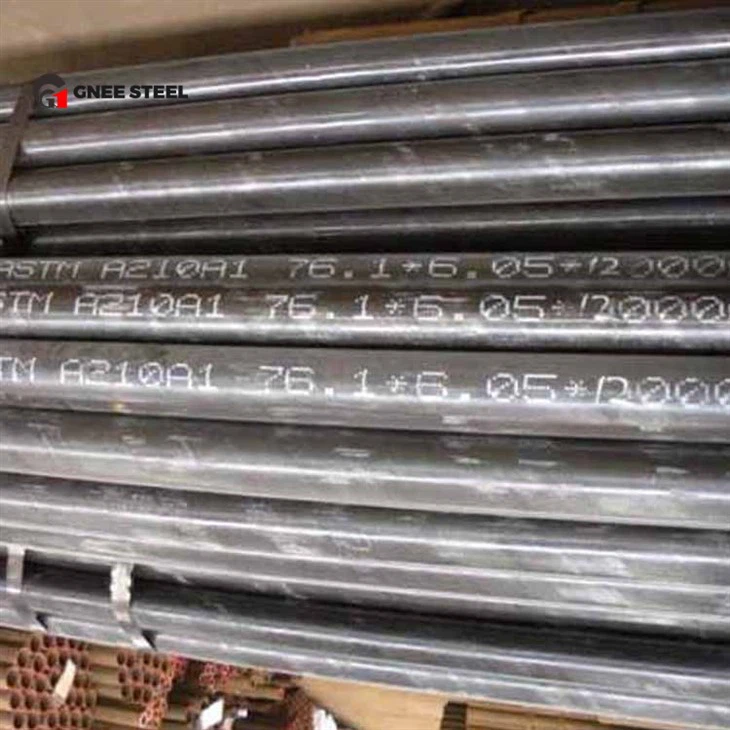

ASTM A210 Gr A1/C Seamless Carbon Boiler Tube
Chemical Composition of ASTM A210 pipe
| Steel Standard | Steel Grade | ASTM A210 Chemical Compostion | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | ||
| ASTM A210 | A-1 | ≤0.27 | ≥0.10 | ≤0.93 | ≤0.035 | ≤0.035 | |||||
| C | ≤0.35 | ≥0.10 | 0.291.06 | ≤0.035 | ≤0.035 | ||||||
Mechanical Property of ASTM A210 Boiler Tube
| ASTM A210 Steel Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
|---|---|---|---|
| A-1 | ≥255 | ≥415 | ≥30 |
| C | ≥275 | ≥485 | ≥30 |
Specification of ASTM A210 Seamless Alloy Tubes
OD: 48mm-720mm
WT: 4mm-58mm
Length: 2m-12m or as required
Surface: Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
Delivery state: Annealed, Normalized, Normalized and Tempered.
Steel Grade: Grade A-1, Grade C
Why Choose GNEE ASTM A210 Steel tube
A210 Seamless Tubes produced by GNEE can be made by fully annealed or isothermal annealed conditions. Normalized and tempered conditions are also available. A wide range of sizes, standards, specifications and pressure grades are available. The size range is from 1/2NB to 36NB. And the quality material with manufacturer's factory test certificate.
In addition, we also provide services such as decoiling, cutting, welding, painting, etc.
If you are looking for seamless tubes, please send us an email!sales@gneetube.com
Factory environment of Seamless A210 Steel Pipe
Gnee Customer visit
FAQ
Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
Q.What is your lead time?
A.Generally, our delivery time is within 7-45 days.
Q:Do you have experience for big projects ?
A:yes , we do .we have good experince for many big project , such as the power plant , Nuclear power station , oil refining project , natural gas project .Abillity to work with big project .
