Is DIN 17175 ST35 8 steel pipe equivalent to ASTM?
DIN 17175 ST 35.8 is equivalent to ASTM A179. Both standards specify seamless carbon steel tubes for use in heat exchangers and condensers.
DIN 17175 St 35-8 grade carbon steel seamless pipe is also known as mild steel pipe. DIN 17175 grade St 35-8 pipe is a low-cost low carbon steel pipe with a maximum carbon content of 017% and a manganese content of 040-080%.

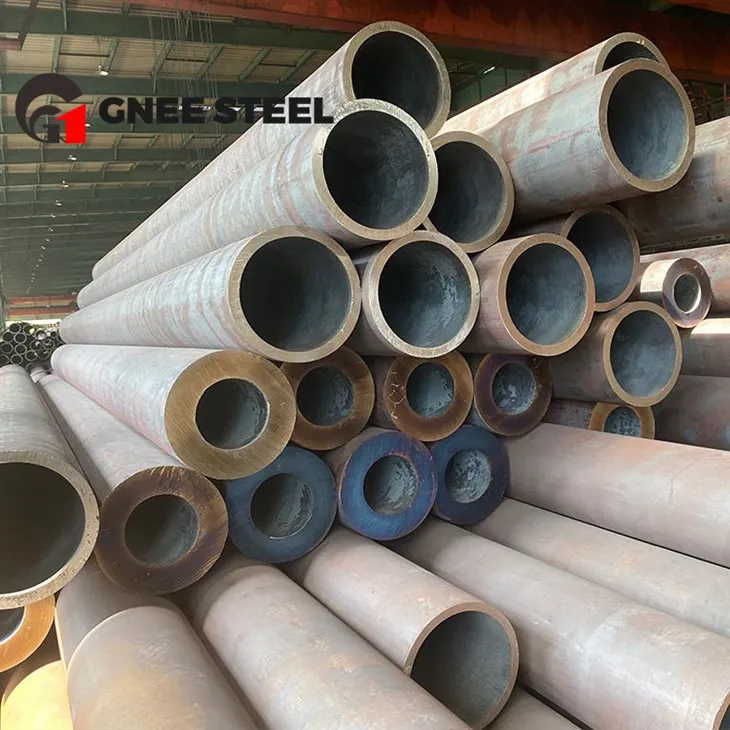

ST35.8 boiler tube is a kind of seamless steel tube for low and medium pressure boilers. Made of carbon structural steel, the implementation standard is DIN171751. This type of steel pipe is mainly used to manufacture heating surface pipes of low and medium pressure boilers, such as water wall pipes, boiling water pipes, superheated steam pipes, etc.
DIN 17175 St35.8 Seamless Steel Tubes Chemical Composition:
| Grade | C | Si | Mn | P | S |
| St35.8 | 0.17Max | 0.10~0.35 | 0.40~0.80 | 0.040Max | 0.040Max |
DIN 17175 ST 35.8 Seamless Steel Boiler Tubes Mechanical properties:
| Grade | Material Number |
MPa or N/mm2 | ||
| Min Yield Point | Tensile Strength | |||
| WT: 16mm Max | WT: 16- 40mm | |||
| St35.8 | 1.0305 | 235 | 225 | 360~480 |
DIN 17175 Seamless Steel Pipe
Specification Of DIN 17175, St35.8 Seamless Steel Pipe Lines
| product | DIN 17175, St35.8 Seamless Steel Pipe Lines |
| Out diameter(mm) | 21mm-914mm |
| Wall thickness(mm) | SCH10,SCH20,SCH30,SCH40,SCH60,SCH80,SCH160,SCHXXS |
| Standard | DIN 17175 |
Gnee company implements API SPEC 5CT, API SPEC5L, ASTMA53, CB/T9711.1, GB/T9711.2, GB/T13793, SY/T5768 and other international and domestic standards, which can meet the needs of customers with different standards.
GNEE has 50 steel production lines, 40 processing equipment for processing, bending, painting, heat treatment, cutting, drilling, beveling, tempering, and surface treatment. It has complete testing equipment and strong technical force. The annual production capacity is more than 500,000 tons.
FAQ
1.Q.What's your advantage?
A.Honest business with competitive price and professional service on export process.
2. Q: What services do you provide?
A: Customized service for each customer, please feel free to contact us!
3.Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
