15CrMo boiler tube is a low alloy heat-resistant steel with excellent high temperature strength and oxidation resistance, suitable for manufacturing boilers and other equipment used under high temperature and high pressure conditions. It has good corrosion resistance and is suitable for acidic, alkaline and salt corrosion environments. Anti-corrosion treatment is still required during use to extend its service life.
GB 5310 15CrMo Seamless Alloy Tube is mainly used for key components such as superheater tubes, reheater tubes, gas guide tubes, main steam pipes, etc. of high-pressure and ultra-high-pressure boilers.
Products Data
GB 5310 15crmo Seamless Boiler Tubes Specification
| Chemical Composition (%) | Minimum | Maximum |
|---|---|---|
| Carbon (C) | 0.12 | 0.18 |
| Silicon (Si) | 0.17 | 0.37 |
| Manganese (Mn) | 0.40 | 0.70 |
| Phosphorus (P) | - | 0.025 |
| Sulphur (S) | - | 0.015 |
| Chromium (Cr) | 0.80 | 1.10 |
| Molybdenum (Mo) | 0.40 | 0.55 |
| Mechanical Properties | Value |
|---|---|
| Tensile Strength (MPa) | 440-640 |
| Yield Strength (MPa) | ≥ 295 |
| Elongation after Fracture (%, longitudinal) | ≥ 21 |
| Reduction of Area (%, transverse) | ≥ 19 |
| Impact Energy Absorption (KV2/J, longitudinal) | ≥ 40 |
| Impact Energy Absorption (KV2/J, transverse) | ≥ 27 |
Products display

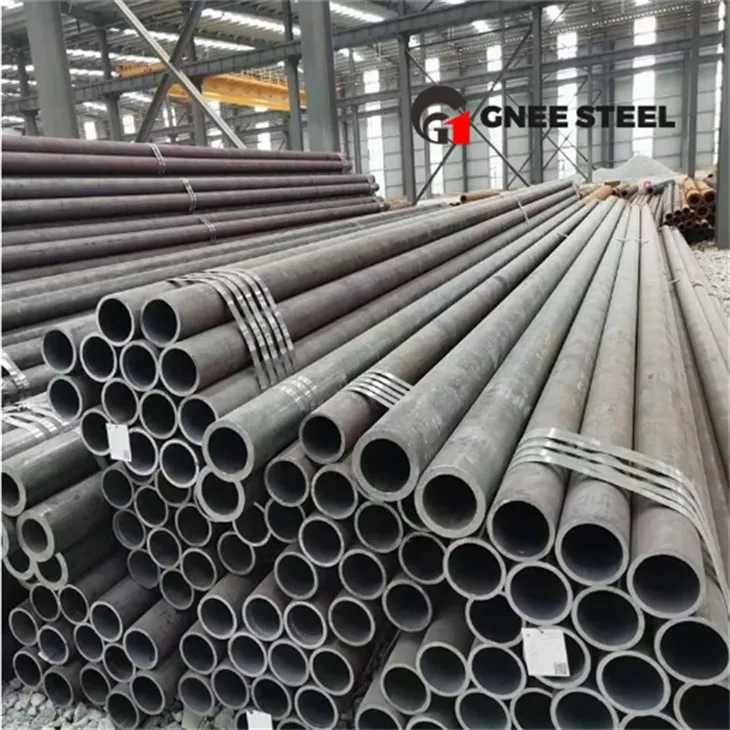

15CrMo Seamless Alloy Boiler Tube
Standard:GB 5310
Manufacture:Seamless process ,Hot-finished or Cold-finished
Wall thickness(WT): 2.8 mm--150 mm.
Outer diameter (OD): 23 mm--1500 mm
Length: 6M or specified length as required.
Ends: Plain End, Beveled End, Treaded
Why Choose GNEE
GNEE is a professional steel pipe exporter with 12 production lines and an annual output of 50,000 tons. It has obtained the ISO9001 international quality management system certificate.
In addition, we can also provide a full range of processing services: cutting, chamfering, punching, welding, bending, notching, pickling.
Our experienced staff is always available to discuss your requirements and ensure full customer satisfaction. Your inquiries are always welcome! sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Can I get a sample before ordering?
Of course. Usually our samples are free. We can produce according to your samples or technical drawings. We can make molds and fixtures.
When is the delivery time?
The delivery time is usually around 15 days.
If there is stock, we can ship within 2 days.
