A213 T11 Ferrite and austenite alloy seamless steel pipes for boilers, superheaters and heat exchangers, products should comply with TSG D7002 pressure piping component type test rules.
Product specifications: outer diameter 19.05mm~762mm, wall thickness 2mm~140mm
Production method: hot rolling, cold drawing, delivery status: heat treatment.
Requirements for mechanical testing and determination of grain size:
Tensile test: A tensile test should be conducted on a sample with a batch of less than 50 pipes. When the batch exceeds 50 pipes, a tensile test should be conducted on samples of two pipes.
Flattening test: A flattening test is conducted on the samples at both ends of a finished pipe in each batch, but not the one for the expansion test.
Expansion test: An expansion test is conducted on the samples at both ends of a finished pipe in each batch, but not the one for the flattening test.
Hardness test: Brinell or Rockwell hardness test is conducted on samples of two pipes in each batch.
Grain size: The grain size should be measured at one end of each batch of finished tubes to verify compliance with regulations.

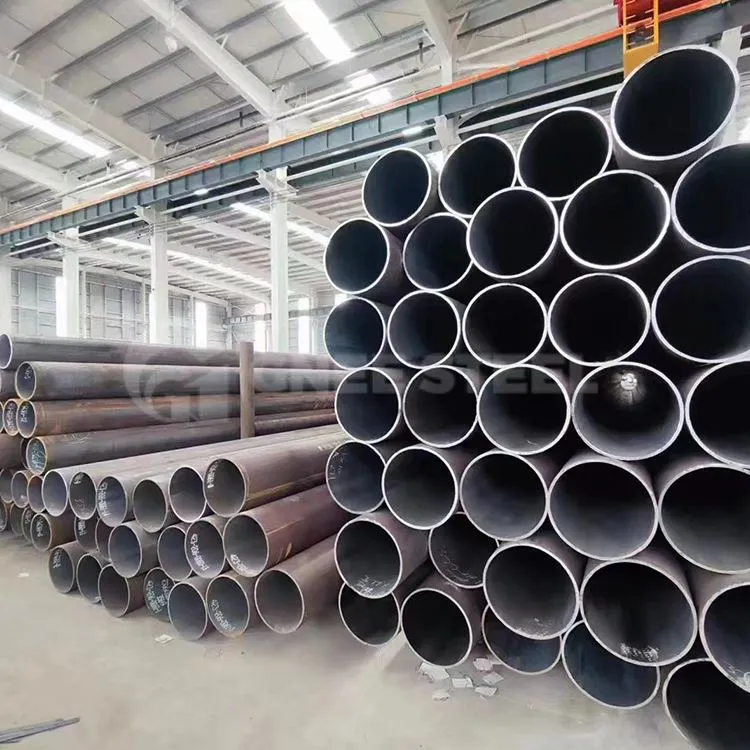

A213 T11 Seamless Steel Tube Specification
|
Outside Coating |
black painting, anti-corrosion oil, galvanized or as per required by customer |
|
Standard |
ASTM A213, SA210,GB5310,etc |
|
Application |
Petroleum, Chemical industry, mechanical equipment |
|
Processing Service |
Bending, Welding, Decoiling, Punching, Cutting, Moulding |
|
Packing |
Standard Seaworthy Package,according to customer requirements |
|
MOQ |
10 TON |
|
Surface |
Annealed, pickled, polished |
|
Shipment time |
Within 10-20 workdays after receiving deposit |
GNEE Group specializes in the production of boiler tubes in accordance with national standards such as GB5310, SA210, SA213, etc. If you need a passing tube, please contact us immediately.
