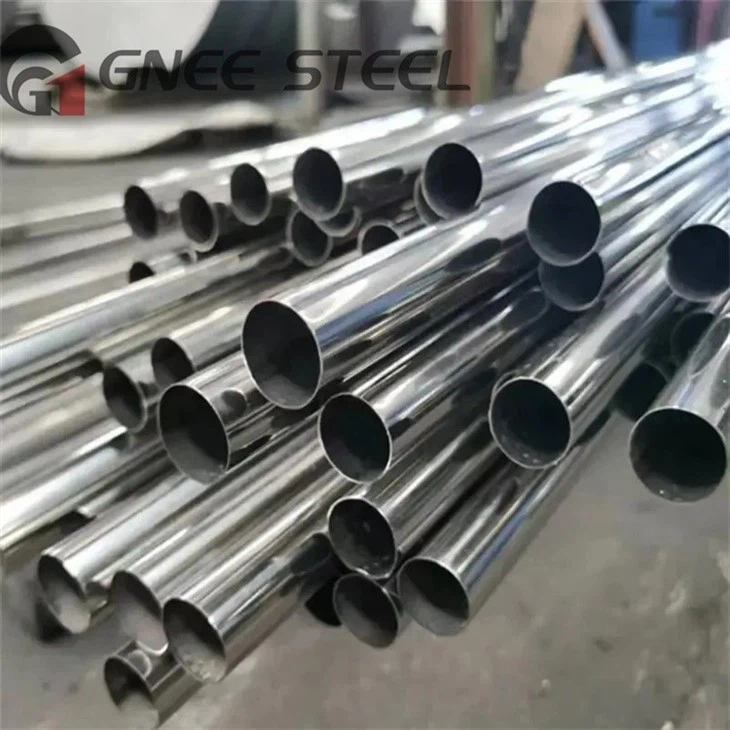

316L stainless steel pipe is made of austenitic stainless steel containing chromium, nickel and molybdenum elements, and its carbon content is lower than 316 grade. This low carbon content makes 316L stainless steel pipe more suitable for welding applications. Compared with other stainless steel materials, it has lower carbon content (about 0.03%). Because of this low carbon content, SS 316L steel pipe is considered a lower carbon version of grade 316 stainless steel. The reason is its excellent resistance to corrosion and pitting corrosion. In comparison, another pipe material, SS 316, has a higher carbon content (about 0.08%), which makes its strength and hardness slightly higher than SS 316L.
316L stainless steel pipe and 316 stainless steel pipe are very similar in many aspects, with almost no differences. The only difference is their carbon content. Since 316L has lower carbon content, it has better corrosion resistance than 316. In addition, 316L does not require annealing after welding.
316L steel pipe is a hollow steel material, generally in the shape of a long circular strip. It is mainly widely used in industrial transportation pipelines and mechanical structural components such as petroleum, chemical industry, medical treatment, food, light industry, mechanical instrumentation, etc. In addition, when the bending and torsional strength are the same, the weight is lighter, so it is also widely used in manufacturing mechanical parts and engineering structures.
ASTM A312 / A213 SS TP 316L Pipes & Tubing Mechanical Properties
|
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316L |
485 |
170 |
40% |
95 |
217 |
TP 316L Stainless Steel Pipes & Tubes Chemical Composition
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316L |
Min. |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max. |
0.08 |
2.00 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
Company Advantage
We are the professional steel products supplier in China, we have our own production line. Our company has many people and a monthly output of 6,000 tons. We have a large stock, so we have competitive prices and short delivery times. We provide samples free of charge, but the freight should be paid by the buyer. We have full stock, and can deliver within short time. Many styles for your choices.
Gnee Customer Visit
Gnee Packaging and Shipping
FAQ
Q. Can you provide free samples?
A. Yes, we can provide free samples if we have stock. But the shipping cost is borne by the buyer.
Q. Will you deliver on time?
A. Yes, we are committed to providing the best quality products and delivering them on time.
Q. Can we visit your factory?
A. Of course you can. We welcome you to visit our factory, check our production line and learn more about our strength and quality.
Hot Tags: 316l stainless steel pipe, China 316l stainless steel pipe manufacturers, suppliers, factory, stainless steel seamless pipe 304 316, Duplex stainless steel cold-rolled steel pipe, 304N stainless steel seamless pipe, Stainless Steel DIN 1.4571 Tube, SS 310 Polished Pipe S31000, Stainless Steel DIN 1.4307 Pipes
