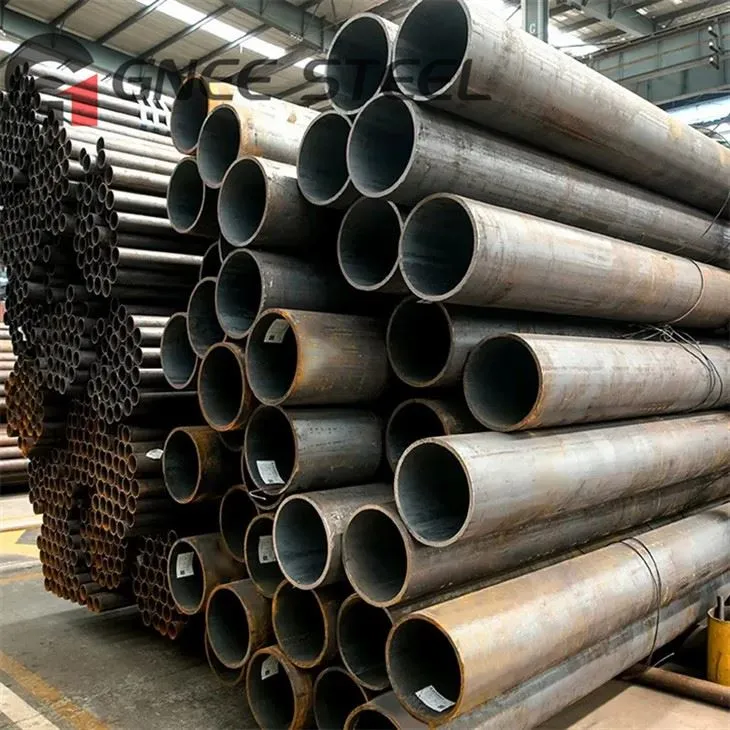

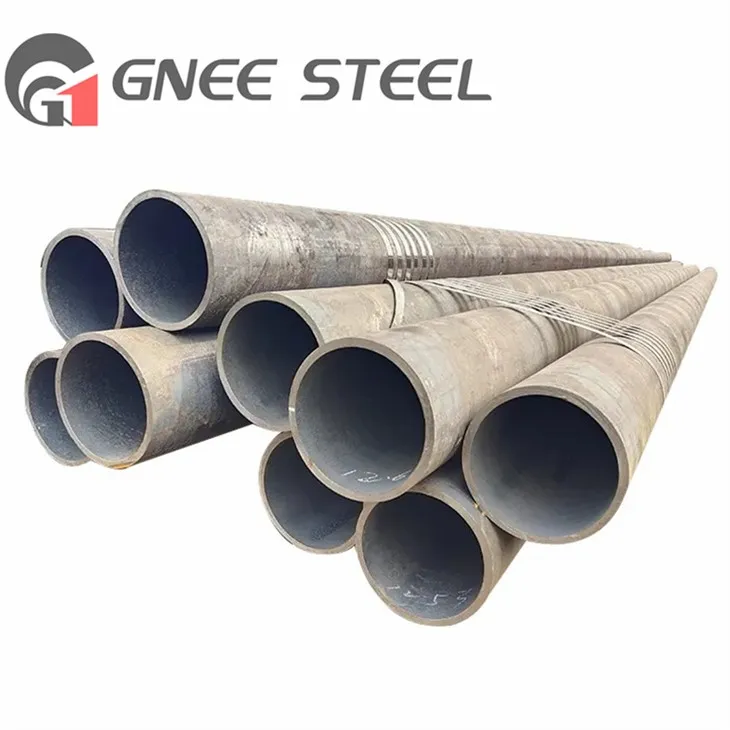

EN 10025 S355J2G3 Structural Steel Carbon Pipe (commonly known as steel pipe or seamless steel pipe) is a tubular product made of S355J2G3 steel, mainly used in structural applications that need to withstand high pressures and/or high stresses.
The "S" in S355J2G3 seamless structural pipe represents structural steel, "355" refers to its yield strength (unit: MPa), and "J2" and "G3" refer to the impact toughness level. Specifically, "J2" means that the longitudinal impact toughness of the steel is qualified at -20°C, and "G3" means that the transverse impact toughness of the steel is qualified at -40°C.
S355J2G3 carbon steel pipe is European standard steel with the following composition: C≤0.20, Si≤0.55, Mn≤1.60, P≤0.035, S≤0.035. J2G3 indicates that the delivery status is normalizing, the impact power at -20℃ is 27J, and G3 and G4 indicate the deoxidation mode. S355J2G3 stands for semi-killed steel. A relatively similar material in China is Q345D.
EN 10025 S355J2G3 hot rolled steel Pipe
Chemical Properties
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| max 0.20 | max 0.55 | max 1.60 | 0.035 | 0.035 | – | – | – | – | – |
Mechanical Properties
| Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 490 | 630 | – | – | ||
Dimension Length of EN 10025 S355 Pipe
| Component length (mm) | OD 30-100 mm | OD 100-254 mm |
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
EN 10025 S355J2G3 Carbon Steel Pipe
EN 10025 S235JR carbon steel structural pipe Specification
| S235jr+c En 10025 Tube wall thickness | 0.020" –0.220", (special wall thicknesses available) |
| Din En 10025 W.1. 1.0577 Form | Round, Hydraulic, 'U' bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc |
| Standard | AISI, DIN, EN, GB, IS, JIS, ASTM, ASME Pipe |
| Steel Grade En 10025 Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| Steel En 10025-2-s235jr+ar Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| En 10025 S235jr Pipe Schedule | SCH40, SCH40S, STD, SCH80, XS, SCH5, SCH10, SCH10S, SCH20, SCH30, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Steel En 10025-2-s235jr+ar Welded Tube Size | 6.35 mm OD To 152 mm OD |
The S355J2G3 steel pipes provided by GNEE are usually produced in accordance with EN 10219 or EN 10210 standards and are available in different outer diameters, wall thicknesses and lengths to meet various engineering needs.
